TP support / wall and support bracket FS
Trench Part No. TPSAG 345 FS
|OBO Item No. 6366066
|EAN 4012196545292
Trench Part No.
OBO Item No.
Width
F in kN
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

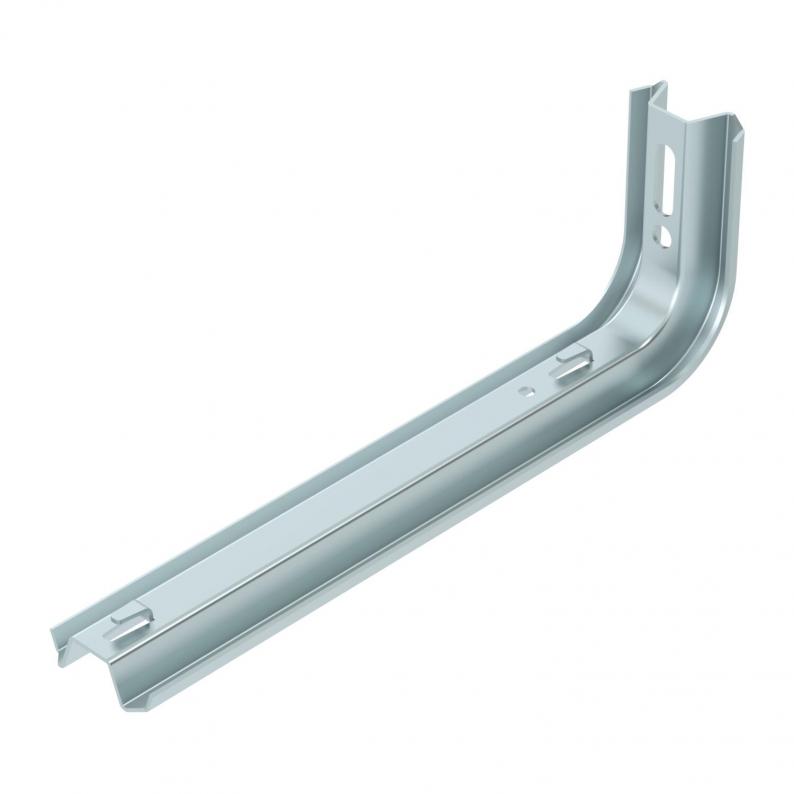

TP bracket with clamping lugs for screwless mesh cable tray fastening.
If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.
Technical data

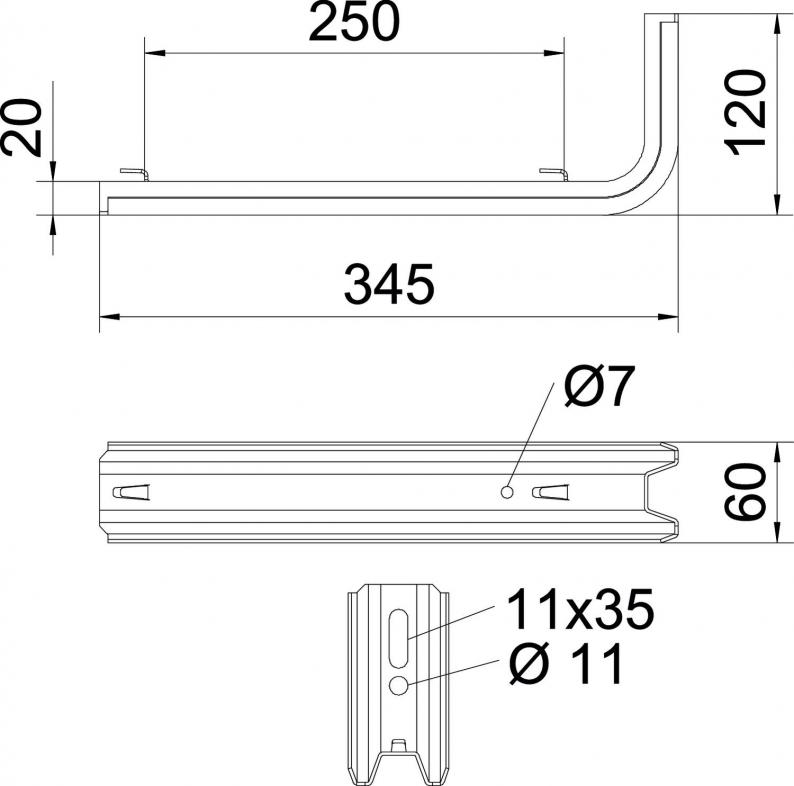

Dimensions
| Length | 345 mm |
|---|---|
| Width | 60 mm |
| Height | 120 mm |
| Dimension L | 345 mm |
| Dimension B | 60 mm |
| Dimension H | 120 mm |
| Dimension W | 250 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| for width max. | 300 mm |
| for width min. | 300 |
| Version for | Wall and support bracket |
| F in kN | 055 kN |
| Dimension | B345mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4011 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Trench Part No.
Width
F in kN
Colour
OBO Item No.
TPSAG 145 FS
60
15
zinc
6366015
TPSAG 195 FS
60
1
zinc
6366023
TPSAG 245 FS
60
09
zinc
6366031
TPSAG 345 FS
60
055
zinc
6366066
F in kN
TPSAG 145 FS
OBO Item No.
6366015
Width
60
F in kN
15
Colour
zinc
TPSAG 195 FS
OBO Item No.
6366023
Width
60
F in kN
1
Colour
zinc
TPSAG 245 FS
OBO Item No.
6366031
Width
60
F in kN
09
Colour
zinc
TPSAG 345 FS
OBO Item No.
6366066
Width
60
F in kN
055
Colour
zinc
