TP support / wall and support bracket FS
Trench Part No. TPSAG 145 FS
|OBO Item No. 6366015
|EAN 4012196627554
Trench Part No.
OBO Item No.
Width
F in kN
Smallest selling unit: 1 piece
1piece
piece
Description

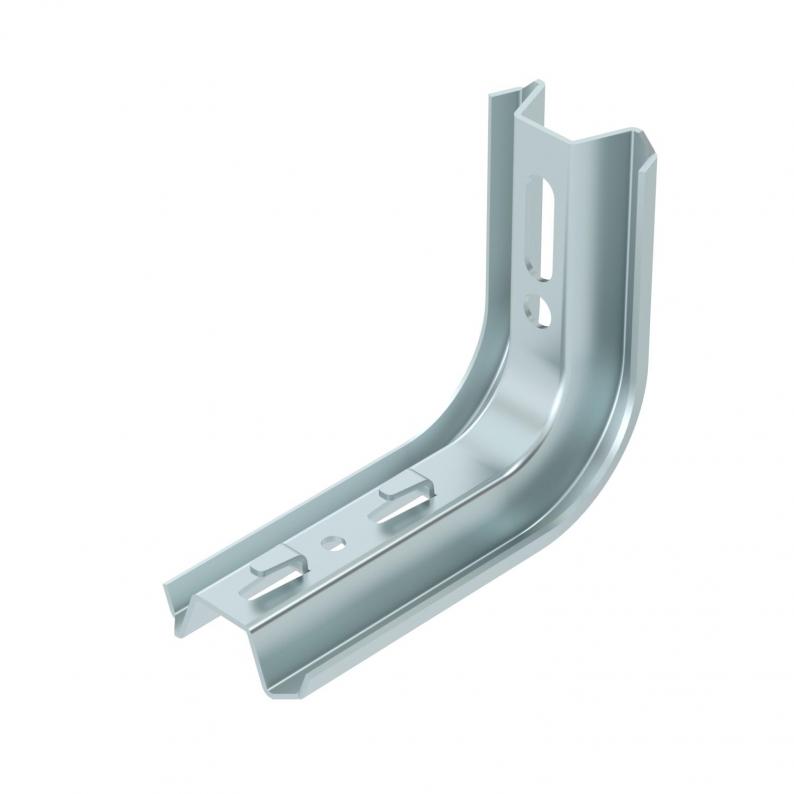

TP bracket with clamping lugs for screwless mesh cable tray fastening.
If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.
Technical data

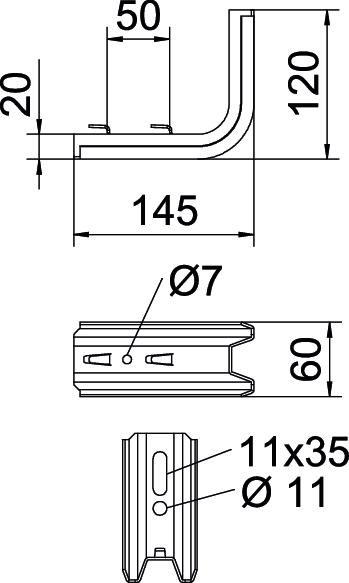

Dimensions
| Length | 145 mm |
|---|---|
| Width | 60 mm |
| Height | 120 mm |
| Dimension L | 145 mm |
| Dimension B | 60 mm |
| Dimension H | 120 mm |
| Dimension W | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| for width min. | 100 |
| for width max. | 100 mm |
| Version for | Wall and support bracket |
| ROHS-conformant | yes |
| F in kN | 15 kN |
| Dimension | B145mm |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Product series | TP Series |
Environmental Data
0,7629 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7629 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 07629 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (4)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Trench Part No.
Width
F in kN
Colour
OBO Item No.
TPSAG 145 FS
60
15
zinc
6366015
TPSAG 195 FS
60
1
zinc
6366023
TPSAG 245 FS
60
09
zinc
6366031
TPSAG 345 FS
60
055
zinc
6366066
F in kN
TPSAG 145 FS
OBO Item No.
6366015
Width
60
F in kN
15
Colour
zinc
TPSAG 195 FS
OBO Item No.
6366023
Width
60
F in kN
1
Colour
zinc
TPSAG 245 FS
OBO Item No.
6366031
Width
60
F in kN
09
Colour
zinc
TPSAG 345 FS
OBO Item No.
6366066
Width
60
F in kN
055
Colour
zinc
