TP wall and ceiling bracket FS

TP wall and ceiling bracket FS

Trench Part No. TPDG 145 FS | OBO Item No. 6365906 | EAN 4012196511754

Show all variants
Trench Part No.
OBO Item No.
Width
Height
for width max.
F in kN wall
F in kN ceiling
Colour
zinc

Smallest selling unit: 6 piece

DescriptionTechnical dataDownloadsVariants

Description

TP wall and ceiling bracket with clamping lugs for screwless mesh cable tray fastening.

If the wall and ceiling bracket is fastened directly to the wall or ceiling, then, for reasons of stability, always use the spacer, type DS 4.

Max. side height of the cable support system 60 mm.

Technical data

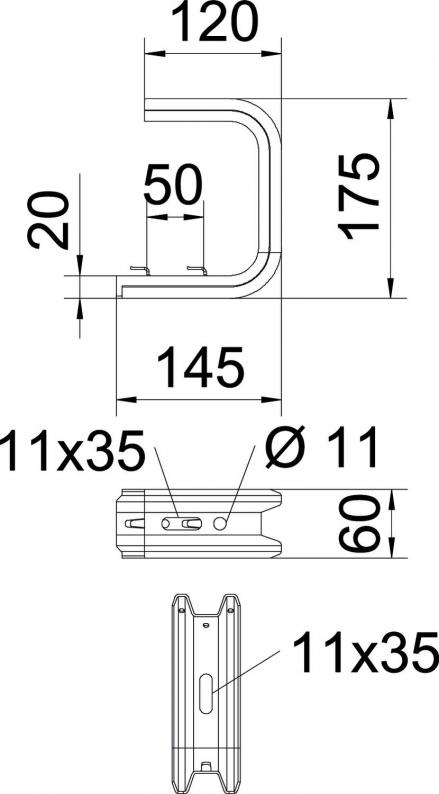

Dimensions

Length175 mm
Width145 mm
Height60 mm
Dimension L50 mm
Dimension B145 mm

Technical data

Maintain electrical functionsno
for width max.100 mm
for width min.100
Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Version forSuspension bracket (C clamp)
F in kN wall14 kN
F in kN ceiling13 kN
DimensionB145mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate1,2196 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Width
for width max.
F in kN wall
F in kN ceiling
TPDG 145 FS
OBO Item No.
6365906
Width
145
Height
60
for width max.
100
F in kN wall
14
F in kN ceiling
13
Colour
zinc
TPDG 195 FS
OBO Item No.
6365914
Width
195
Height
60
for width max.
150
F in kN wall
105
F in kN ceiling
095
Colour
zinc
TPDG 245 FS
OBO Item No.
6365922
Width
245
Height
60
for width max.
200
F in kN wall
087
F in kN ceiling
08
Colour
zinc
TPDG 345 FS
OBO Item No.
6365949
Width
345
Height
60
for width max.
300
F in kN wall
055
F in kN ceiling
05
Colour
zinc
