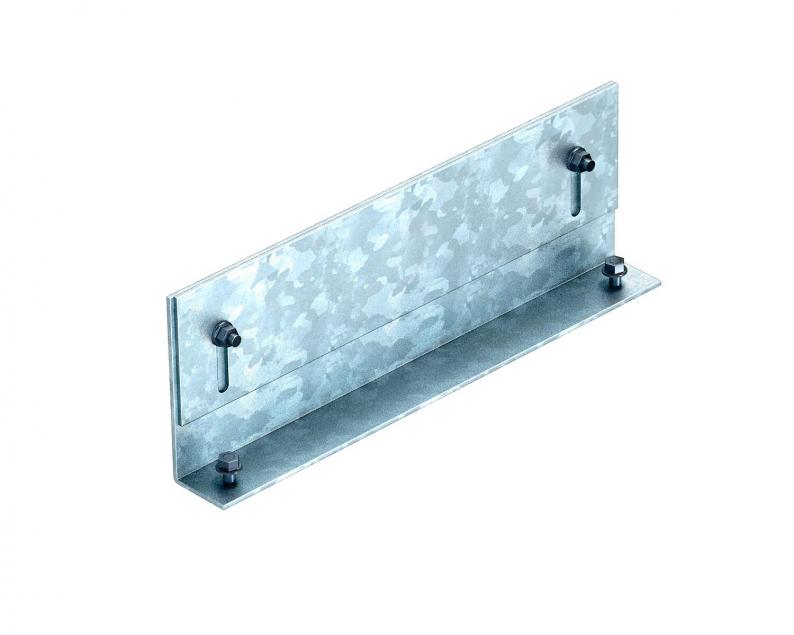

Trunking end piece
Trench Part No. OKB ES 25085
|OBO Item No. 7403820
|EAN 4012195699569
Trench Part No.
OKB ES 25085
OBO Item No.
7403820
Width
250 mm
Trunking height, max.
125 mm
Duct height, min.
85 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Ready-to-mount trunking end connection, consisting of a side wall and a height-adjustable side profile for universal installation on left or right.
Technical data

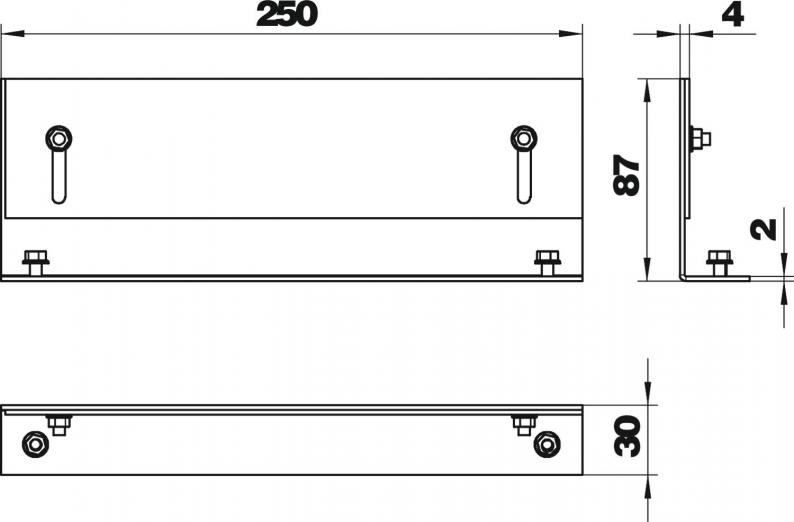

Dimensions
| Width | 250 mm |
|---|---|
| Height | 93 mm |
| Dimension h | 85 mm |
Technical data
| Height-adjustment range, min. | 0 mm |
|---|---|
| Minimum screed height | 85 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | yes |
| Floor plate | yes |
| Floor care | Dry |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening | Without |
| Mounting opening cover | no |
| With separating retainer | no |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | no |
| Suitable for flushfloor, open underfloor trunking | yes |
| Trunking height, max. | 125 mm |
| Duct height, min. | 85 mm |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Plug |
Environmental Data
2,3633 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,3633 kg CO2e / 1 Piece |
|---|
