Trunking end piece, height 40−150 mm

Trunking end piece, height 40−150 mm

Trench Part No. OKA-G20040150ES
|
OBO Item No. 7424280
|
EAN 4012195243816
Show all variants
Trench Part No.
OBO Item No.
Width
Trunking height, max.
Duct height, min.

Smallest selling unit: 1 piece

piece

Description

Ready-to-mount trunking end piece, consisting of a flexible apron with side and floor covering guide profiles. The scope of delivery contains trunking connection brackets and a height-adjustable fixing bracket.

Technical data

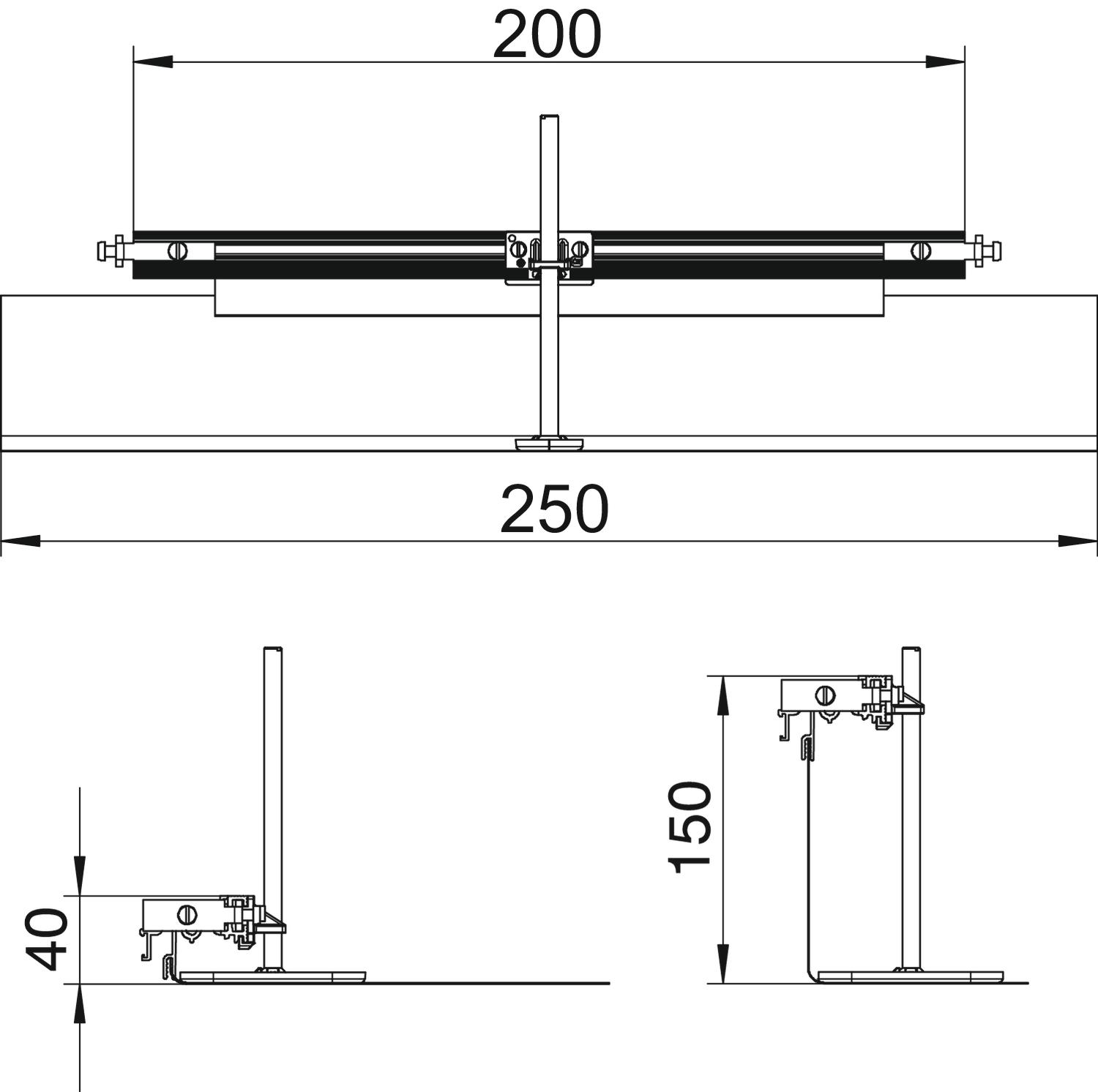

Dimensions

Length260 mm
Width200 mm
Dimension h40 mm

Technical data

Height-adjustment range, max.110 mm
Height-adjustment range, min.0 mm
Suitable for screed-covered underfloor ductsno
Suitable for screed-flush closed underfloor ductsno
Suitable for flushfloor, open underfloor trunkingno
Trunking height, max.150 mm
Duct height, min.40 mm
SurfaceStrip galvanized
MaterialSteel

Environmental Data

3,8548 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate3,8548 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
OKA-G20040150ES
OBO Item No.
7424280
Width
200
Trunking height, max.
150
Duct height, min.
40
OKA-G30040150ES
OBO Item No.
7424282
Width
300
Trunking height, max.
150
Duct height, min.
40
OKA-G40040150ES
OBO Item No.
7424284
Width
400
Trunking height, max.
150
Duct height, min.
40
OKA-G50040150ES
OBO Item No.
7424286
Width
500
Trunking height, max.
150
Duct height, min.
40
OKA-G60040150ES
OBO Item No.
7424288
Width
600
Trunking height, max.
150
Duct height, min.
40
