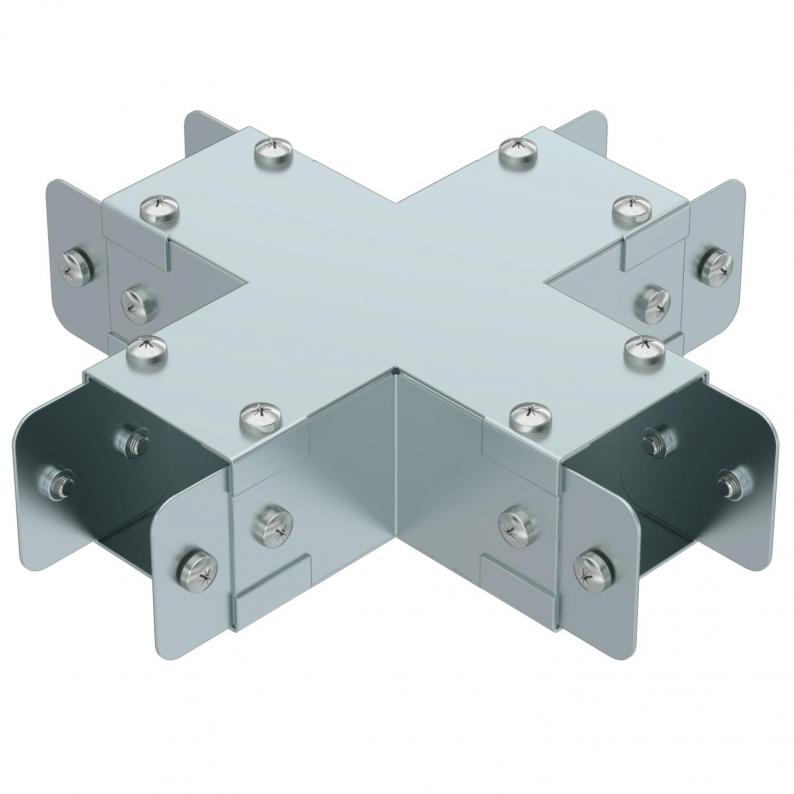

Trunking Pre Galvanised 4 Way Intersection Non Gusset
Trench Part No. SA224WI-NG | OBO Item No. 7914203 | EAN 5056771565304
Trench Part No.
OBO Item No.
Dimension H
Smallest selling unit: 1 piece
1piece
Description
Single Compartment 4 Way Intersection, Non Gusset, Pre-Galvanised Steel to suit Cable Trunking 50mm x 50mm
Ausführung ohne Eckblech.
Ausführung ohne Eckblech.
Technical data

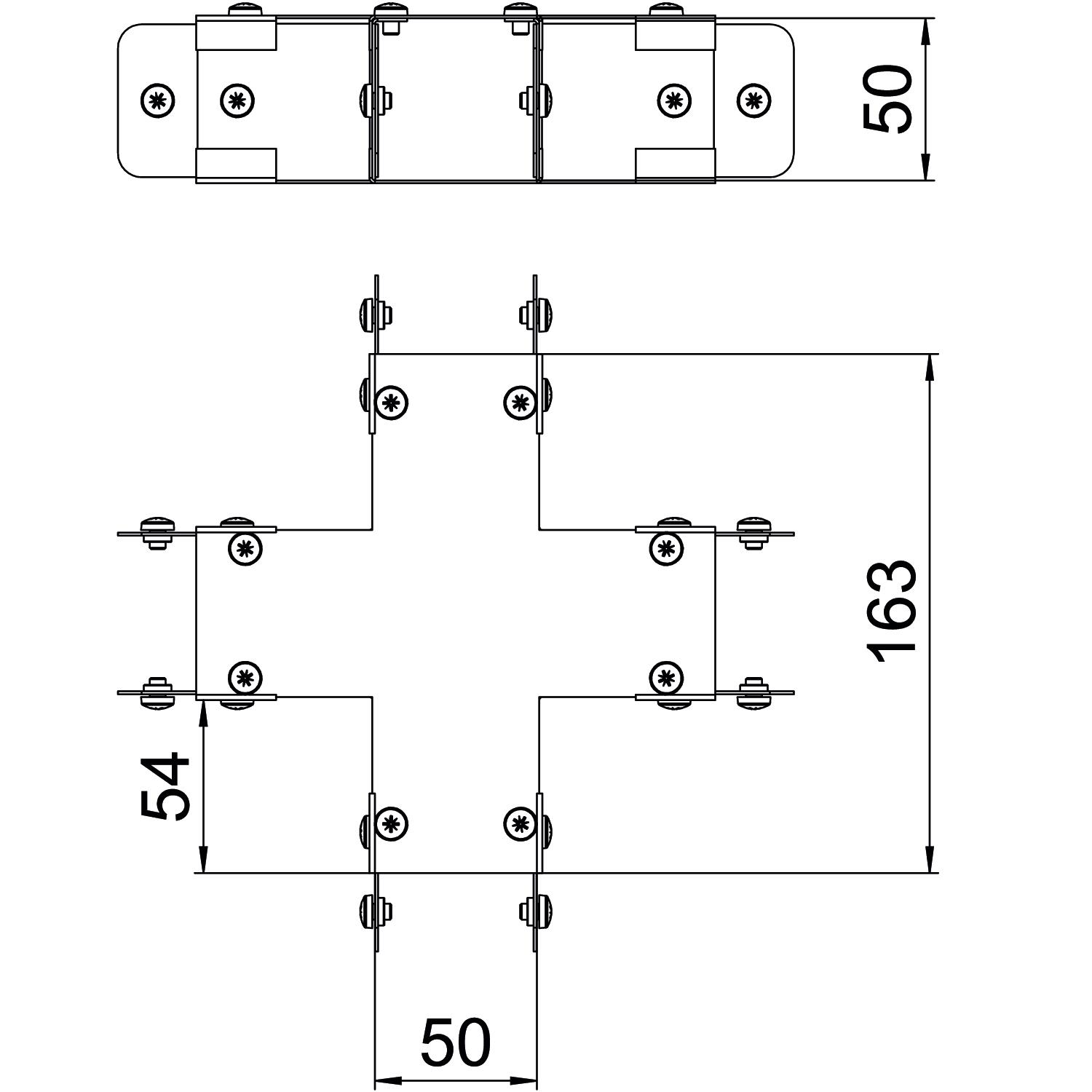

Dimensions
| Length | 163 mm |
|---|---|
| Width | 163 mm |
| Height | 50 mm |
| Dimension H | 50 mm |
| Maß W | 163 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Dimension | 50x50 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Dimension H
OBO Item No.
SA1224WI-NG
50
7914560
SA1244WI-NG
100
7914584
SA1264WI-NG
150
7914596
SA1234WI-NG
75
7914572
SA12124WI-NG
300
7914548
SA834WI-NG
75
7914722
SA824WI-NG
50
7914710
SA1284WI-NG
200
7914608
SA1294WI-NG
225
7914620
SA844WI-NG
100
7914734
SA864WI-NG
150
7914746
SA924WI-NG
50
7914770
SA934WI-NG
75
7914782
SA964WI-NG
150
7914806
SA994WI-NG
225
7914815
SA944WI-NG
100
7914794
SA884WI-NG
200
7914758
SA224WI-NG
50
7914203
SA324WI-NG
50
7914209
SA334WI-NG
75
7914215
SA424WI-NG
50
7914221
SA434WI-NG
75
7914227
SA444WI-NG
100
7914233
SA624WI-NG
50
7914239
SA634WI-NG
75
7914245
SA644WI-NG
100
7914251
SA664WI-NG
150
7914257
