Trunking Pre Galvanised 45 Degree Internal Cover Bend
Trench Part No. SA2245I | OBO Item No. 7909000 | EAN 5056771536946
Trench Part No.
OBO Item No.
Dimension H
Smallest selling unit: 1 piece
1piece
Description

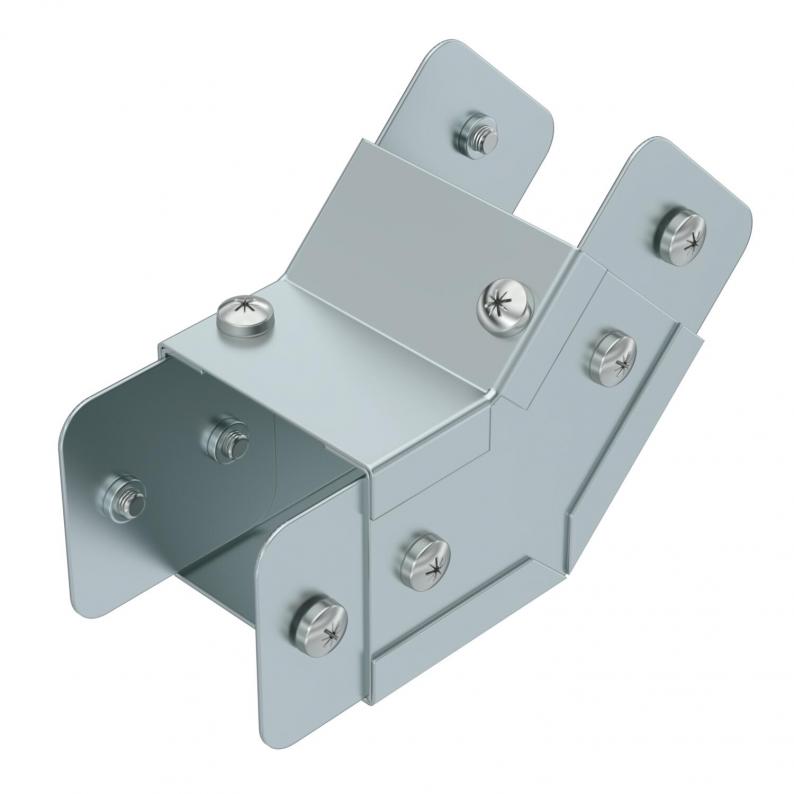

Single Compartment 45 Degree Internal Cover Bend, Pre-Galvanised Steel to suit Cable Trunking 50mm x 50mm
Technical data

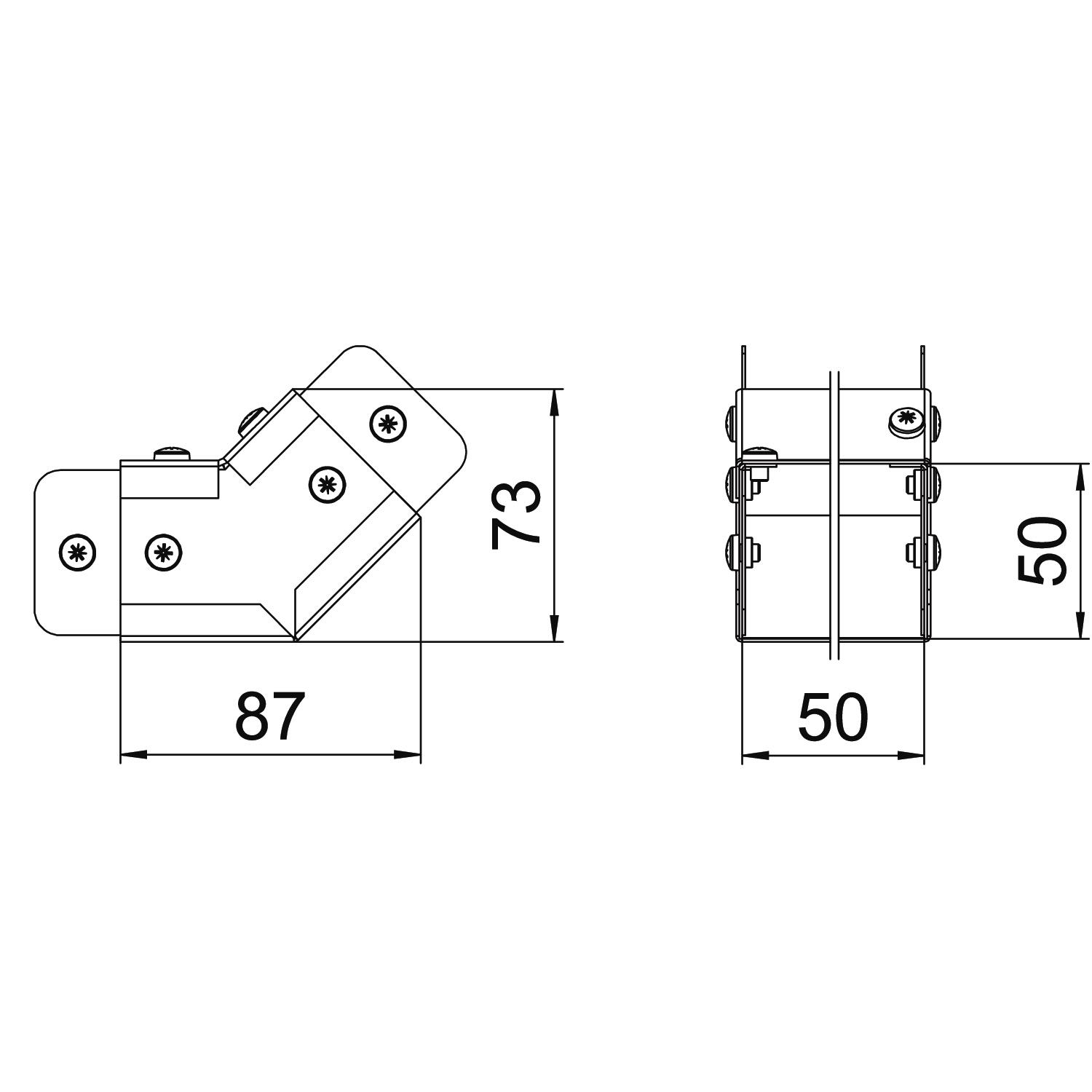

Dimensions
| Length | 87.1 mm |
|---|---|
| Width | 54 mm |
| Height | 54 mm |
| Dimension H | 54 mm |
| Maß W | 54 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Bend (angle) | 45° |
| Dimension | 50x50 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Dimension H
Dimension B
OBO Item No.
SA12845I
205
7909090
SA2245I
54
7909000
SA3245I
54
7909003
SA3345I
79
7909006
SA4245I
54
7909009
SA4345I
79
7909012
SA4445I
104
7909015
SA6245I
55
154
7909018
SA6345I
79
154
7909021
SA6445I
104
154
7909024
SA6645I
154
154
7909027
SA121245I
305
7909030
SA12245I
54
7909042
SA12345I
79
7909054
SA12445I
104
7909066
SA12645I
154
7909078
SA12945I
230
7909102
SA8245I
54
7909192
SA8345I
79
7909204
SA8445I
104
7909216
SA8645I
154
7909228
SA8845I
205
7909240
SA9245I
54
7909252
SA9345I
79
7909264
SA9445I
104
7909276
SA9645I
154
7909288
SA9945I
230
7909300
