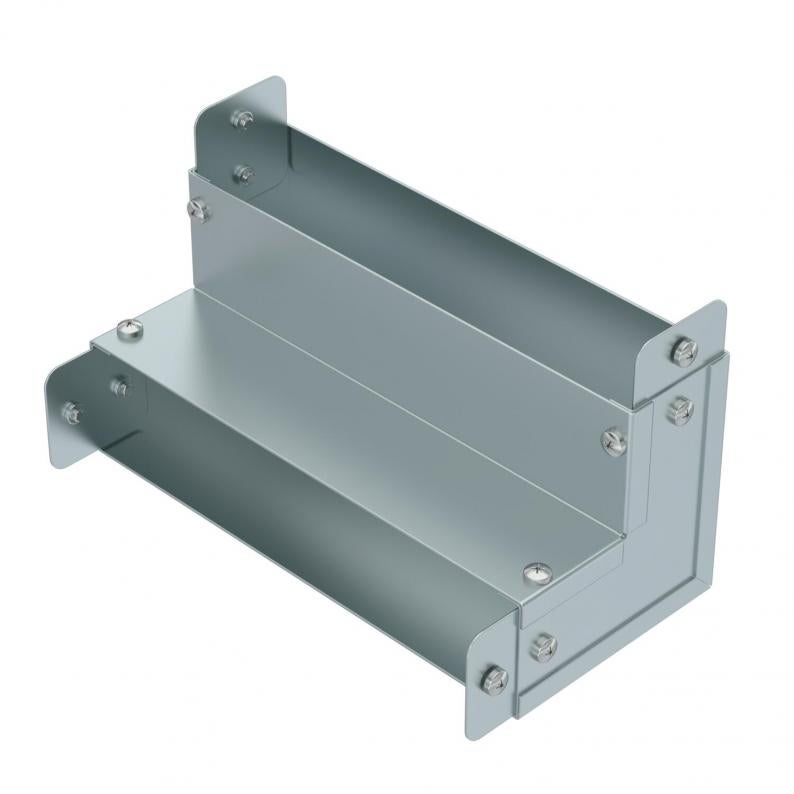

Trunking Pre Galvanised 90 Degree Internal Cover Bend Non Gusset
Trench Part No. SA9290I-NG
|OBO Item No. 7906700
|EAN 5056771525384
Trench Part No.
OBO Item No.
Plate thickness
Dimension H
Smallest selling unit: 1 piece
1piece
piece
Description
Single Compartment 90 Degree Internal Cover Bend, Non Gusset, Pre-Galvanised Steel to suit Cable Trunking 225mm x 50mm
Ausführung ohne Eckblech.
Ausführung ohne Eckblech.
Technical data
Dimensions
| Length | 106 mm |
|---|---|
| Width | 230 mm |
| Height | 106 mm |
| Dimension H | 106 mm |
| Dimension W | 230 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Plate thickness | 1.15 mm |
| Bend (angle) | 90° |
| Dimension | 225x50 |
| Surface | Strip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Plate thickness
Dimension H
OBO Item No.
SA12290I-NG
1.15
106
7906490
SA12490I-NG
1.15
156
7906514
SA12690I-NG
1.15
206
7906526
SA12390I-NG
1.15
131
7906502
SA121290I-NG
1.15
356
7906478
SA8390I-NG
1.15
131
7906652
SA8290I-NG
1.15
106
7906640
SA12890I-NG
1.15
256
7906538
SA12990I-NG
1.15
281
7906550
SA9390I-NG
1.15
131
7906712
SA8690I-NG
1.15
206
7906676
SA8890I-NG
1.15
256
7906688
SA9290I-NG
1.15
106
7906700
SA9690I-NG
1.15
206
7906736
SA9990I-NG
1.15
281
7906745
SA9490I-NG
1.15
156
7906724
SA8490I-NG
1.15
156
7906664
SA2290I-NG
0.9
106
7906757
SA3290I-NG
0.9
106
7906763
SA3390I-NG
0.9
131
7906769
SA4290I-NG
0.9
106
7906775
SA4390I-NG
0.9
131
7906781
SA4490I-NG
0.9
156
7906787
SA6290I-NG
0.9
106
7906793
SA6390I-NG
0.9
131
7906799
SA6490I-NG
0.9
156
7906805
SA6690I-NG
0.9
206
7906811
