Trunking Pre Galvanised 90 Degree Top Cover Bend Non Gusset
Trench Part No. SA8690T-NG | OBO Item No. 7905476 | EAN 5056771518522
Trench Part No.
OBO Item No.
Dimension H
Smallest selling unit: 1 piece
1piece
Description

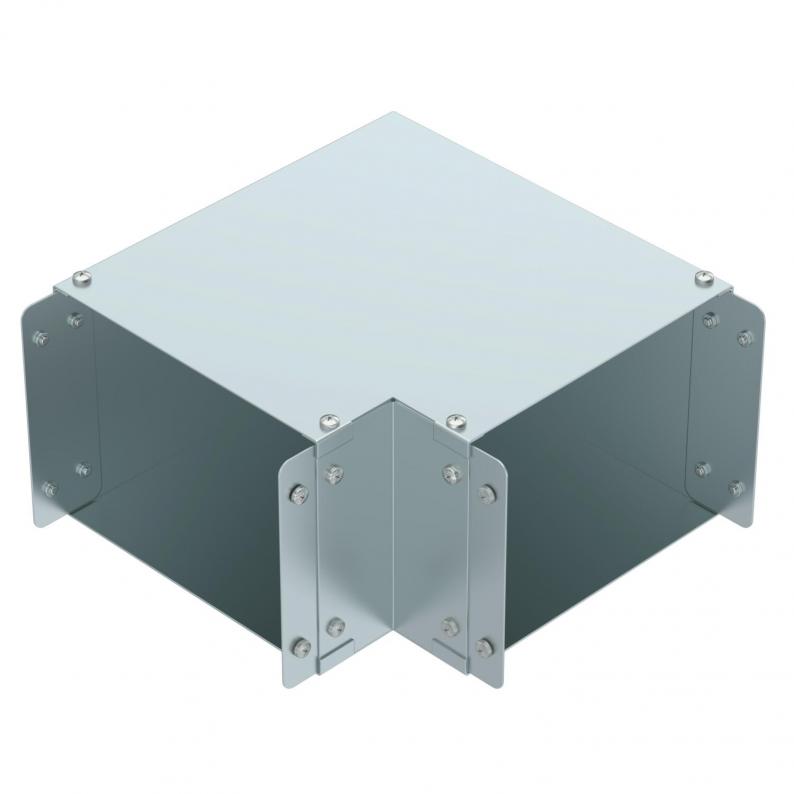

Single Compartment 90 Degree Top Cover Bend, Non Gusset, Pre-Galvanised Steel to suit Cable Trunking 200mm x 150mm
Ausführung ohne Eckblech.
Ausführung ohne Eckblech.
Technical data

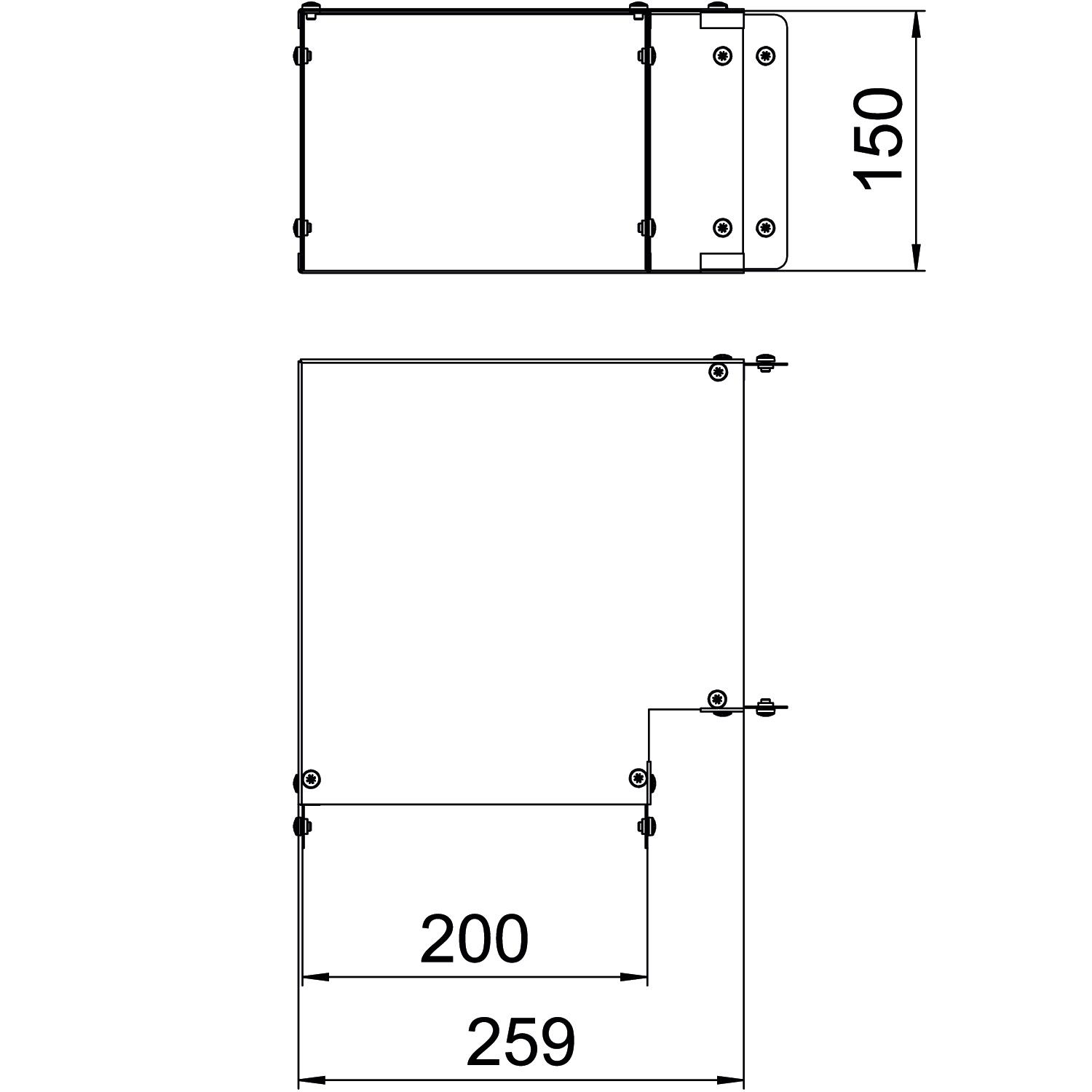

Dimensions
| Length | 259 mm |
|---|---|
| Width | 259 mm |
| Height | 150 mm |
| Dimension H | 150 mm |
| Maß W | 259 mm |
Technical data
| Bend (angle) | 90° |
|---|---|
| Dimension | 200x150 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Dimension H
OBO Item No.
SA12290T-NG
50
7905290
SA12490T-NG
100
7905314
SA12690T-NG
150
7905326
SA12390T-NG
75
7905302
SA121290T-NG
304
7905278
SA12890T-NG
204
7905338
SA12990T-NG
229
7905350
SA9390T-NG
75
7905512
SA9490T-NG
100
7905524
SA8490T-NG
100
7905464
SA8690T-NG
150
7905476
SA8890T-NG
204
7905488
SA9690T-NG
150
7905536
SA9990T-NG
229
7905545
SA9290T-NG
50
7905500
SA2290T-NG
50
7905551
SA3290T-NG
50
7905557
SA3390T-NG
75
7905563
SA4290T-NG
50
7905569
SA4390T-NG
75
7905575
SA4490T-NG
100
7905581
SA6290T-NG
50
7905587
SA6390T-NG
75
7905593
SA6490T-NG
100
7905599
SA6690T-NG
150
7905605
