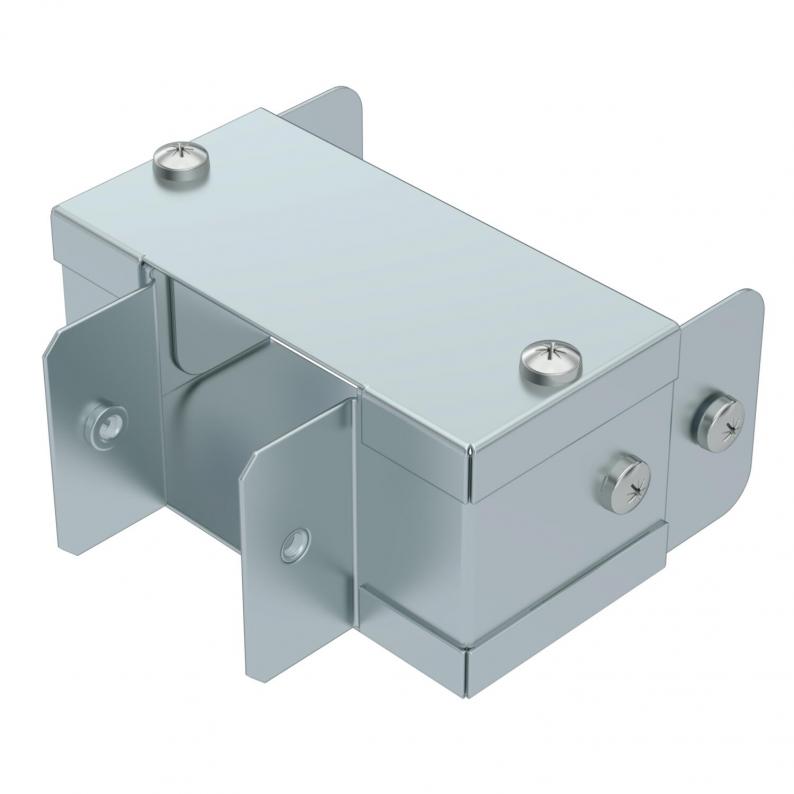

Trunking Pre Galvanised Reducer
Trench Part No. SA42-22RE | OBO Item No. 7915409 | EAN 5056771572067
Trench Part No.
OBO Item No.
Dimension B
Dimension H
Dimension b
Dimension h
Smallest selling unit: 1 piece
1piece
Description
Reducer to suit Single Compartment Cable Trunking complete with connectors and fixings
Technical data

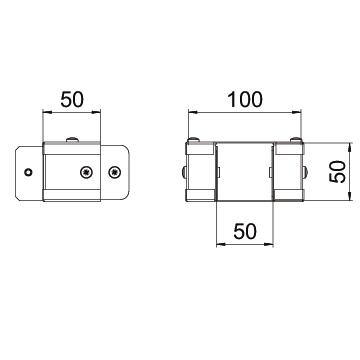

Dimensions
| Dimension B | 100 mm |
|---|---|
| Dimension H | 50 mm |
| Dimension b | 50 mm |
| Dimension h | 50 mm |
Technical data
| Dimension | 100x50-50x50 |
|---|---|
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Dimension B
Dimension H
Dimension b
Dimension h
OBO Item No.
SA32-22RE
75
50
50
50
7915400
SA33-22RE
75
75
50
50
7915403
SA33-32RE
75
75
75
50
7915406
SA42-22RE
100
50
50
50
7915409
SA42-32RE
100
50
75
50
7915412
SA42-33RE
100
50
75
75
7915415
SA43-22RE
100
75
50
50
7915418
SA43-32RE
100
75
75
50
7915421
SA43-33RE
100
75
75
75
7915424
SA43-42RE
100
75
100
50
7915427
SA44-22RE
100
100
50
50
7915430
SA44-32RE
100
100
75
50
7915433
SA44-33RE
100
100
75
75
7915436
SA44-42RE
100
100
100
50
7915439
SA44-43RE
100
100
100
75
7915442
SA62-22RE
150
50
50
50
7915445
SA62-32RE
150
50
75
50
7915448
SA62-33RE
150
50
75
75
7915451
SA62-42RE
150
50
100
50
7915454
SA62-43RE
150
50
100
75
7915457
SA62-44RE
150
50
100
100
7915460
SA63-22RE
150
75
50
50
7915463
SA63-32RE
150
75
75
50
7915466
SA63-33RE
150
75
75
75
7915469
SA63-42RE
150
75
100
50
7915472
SA63-43RE
150
75
100
75
7915475
SA63-44RE
150
75
100
100
7915478
SA63-62RE
150
75
150
50
7915481
SA64-22RE
150
100
50
50
7915484
SA64-32RE
150
100
75
50
7915487
SA64-33RE
150
100
75
75
7915490
SA64-42RE
150
100
100
50
7915493
SA64-43RE
150
100
100
75
7915496
SA64-44RE
150
100
100
100
7915499
SA64-62RE
150
100
150
50
7915502
SA64-63RE
150
100
150
75
7915505
SA66-22RE
150
150
50
50
7915508
SA66-32RE
150
150
75
50
7915511
SA66-33RE
150
150
75
75
7915514
SA66-42RE
150
150
100
50
7915517
SA66-43RE
150
150
100
75
7915520
SA66-44RE
150
150
100
100
7915523
SA66-62RE
150
150
150
50
7915526
SA66-63RE
150
150
150
75
7915529
SA66-64RE
150
150
150
100
7915532
