Trunking unit, blank, height 40−70 mm
Trench Part No. OKA-W2004030
|OBO Item No. 7424400
|EAN 4012195244127
Trench Part No.
OBO Item No.
Length
Width
Trunking height, max.
Duct height, min.
Smallest selling unit: 2.4 m
2.4m
m
Description

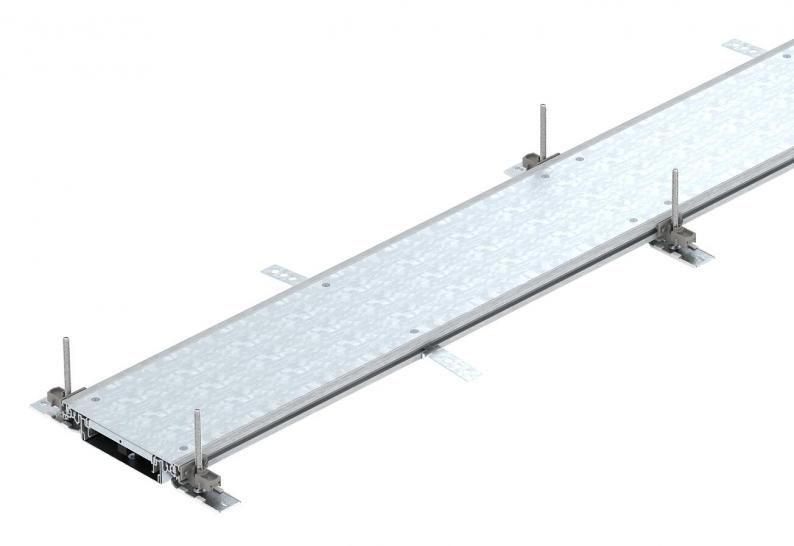

Ready-to-mount trunking unit with three blanking lids for cable laying, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed on for delivery.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Width | 200 mm |
Technical data
| Usable cross-section | 2600 mm² |
|---|---|
| Number of compartments | 2 St. |
| Number of insertable partitions | 1 |
| Covers | 3 |

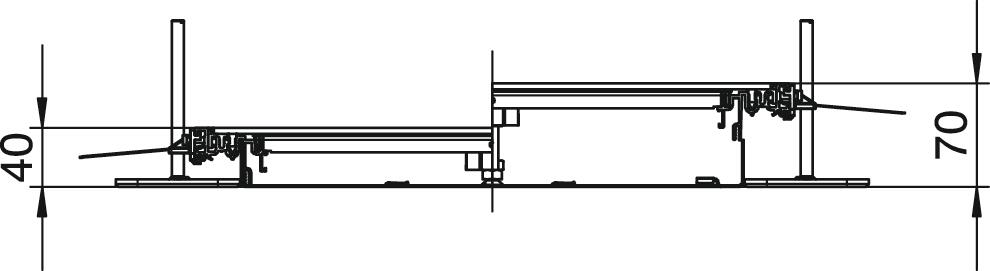

| Height-adjustment range, max. | 70 mm |
| Height-adjustment range, min. | 40 mm |
| Minimum screed height | 40 |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | yes |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| Number of planned flush-mount units | 3 |
| With separating retainer | no |
| Cover material thickness | 4 |
| Suitable for expansion joint | no |
| With overhang | yes |
| Number of mounting openings | 0 |
| With connection opening | no |
| Mounting opening | Without |
| Trunking height, max. | 70 mm |
| Duct height, min. | 40 mm |
| Dimension | 2400x200x40 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Lock |
Environmental Data
46,9561 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 46,9561 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
