Trunking unit, blank, height 40−70 mm
Trench Part No. OKA-W3004030
|OBO Item No. 7424402
|EAN 4012195244134
Trench Part No.
OBO Item No.
Length
Width
Duct height, min.
Trunking height, max.
Smallest selling unit: 2.4 m
2.4m
m
Description

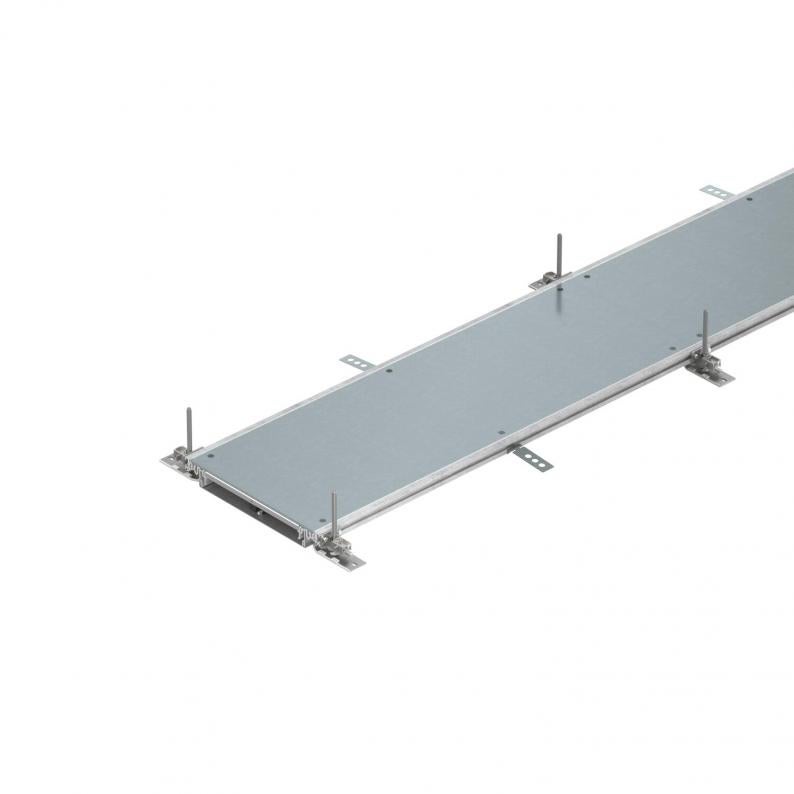

Ready-to-mount trunking unit with three blanking lids for cable laying, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed on for delivery.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Width | 300 mm |
Technical data
| Usable cross-section | 4000 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of insertable partitions | 2 |
| Covers | 3 |

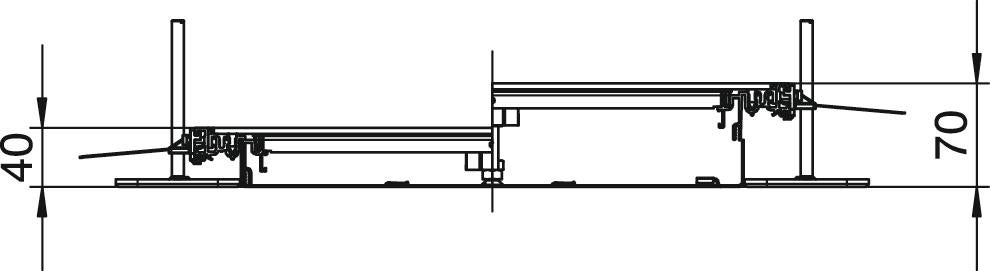

| Height-adjustment range, min. | 40 mm |
| Height-adjustment range, max. | 70 mm |
| Minimum screed height | 40 |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | yes |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| Number of planned flush-mount units | 3 |
| With separating retainer | no |
| Cover material thickness | 4 |
| Suitable for expansion joint | no |
| With overhang | yes |
| Number of mounting openings | 0 |
| With connection opening | no |
| Mounting opening | Without |
| ROHS-conformant | yes |
| Duct height, min. | 40 mm |
| Trunking height, max. | 70 mm |
| Dimension | 2400x300x40 |
| Surface | Strip galvanised |
| Material | Steel |
| Separating retainer fastening | Lock |
| Product series | OKA Series |
Environmental Data
57,3722 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 57,3722 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 573722 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Covers
Duct height, min.
Trunking height, max.
OBO Item No.
OKA-W2004030
2.400
200
3
40
70
7424400
OKA-W3004030
2.400
300
3
40
70
7424402
OKA-W4004030
2.400
400
3
40
70
7424404
OKA-W5004030
2.400
500
3
40
70
7424406
OKA-W6004030
2.400
600
3
40
70
7424408
Width
OKA-W2004030
OBO Item No.
7424400
Length
2.400
Width
200
Covers
3
Duct height, min.
40
Trunking height, max.
70
OKA-W3004030
OBO Item No.
7424402
Length
2.400
Width
300
Covers
3
Duct height, min.
40
Trunking height, max.
70
OKA-W4004030
OBO Item No.
7424404
Length
2.400
Width
400
Covers
3
Duct height, min.
40
Trunking height, max.
70
OKA-W5004030
OBO Item No.
7424406
Length
2.400
Width
500
Covers
3
Duct height, min.
40
Trunking height, max.
70
OKA-W6004030
OBO Item No.
7424408
Length
2.400
Width
600
Covers
3
Duct height, min.
40
Trunking height, max.
70
