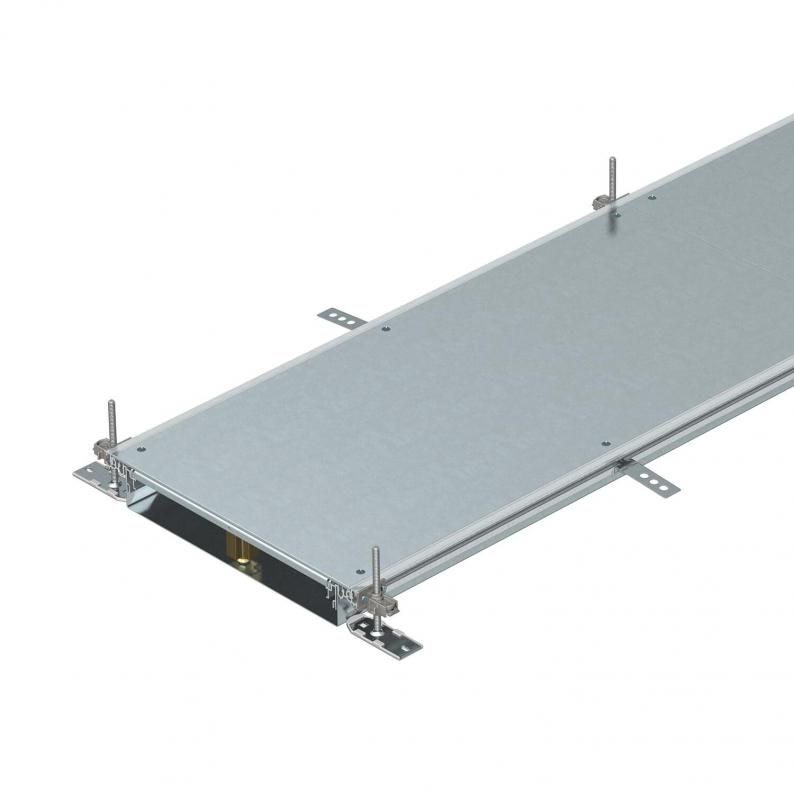

Trunking unit, blank, height 60−110 mm
Trench Part No. OKA-W3006050
|OBO Item No. 7424422
|EAN 4012195244202
Trench Part No.
OBO Item No.
Length
Width
Trunking height, max.
Duct height, min.
Smallest selling unit: 2.4 m
2.4m
m
Description
Ready-to-mount trunking unit with three blanking lids for cable laying, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed on for delivery.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Width | 300 mm |
Technical data
| Usable cross-section | 8100 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of insertable partitions | 2 |
| Covers | 3 |

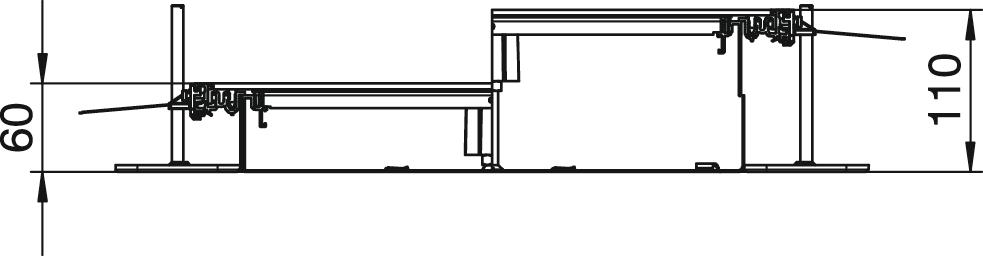

| Height-adjustment range, max. | 110 mm |
| Height-adjustment range, min. | 60 mm |
| Minimum screed height | 60 |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | yes |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| Number of planned flush-mount units | 3 |
| With separating retainer | no |
| Cover material thickness | 4 |
| Suitable for expansion joint | no |
| With overhang | yes |
| Number of mounting openings | 0 |
| With connection opening | no |
| Mounting opening | Without |
| Trunking height, max. | 110 mm |
| Duct height, min. | 60 mm |
| Dimension | 2400x300x60 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Lock |
Environmental Data
60,716 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 60,716 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Covers
Trunking height, max.
Duct height, min.
OBO Item No.
OKA-W2006050
2.400
200
3
110
60
7424420
OKA-W3006050
2.400
300
3
110
60
7424422
OKA-W4006050
2.400
400
3
110
60
7424424
OKA-W5006050
2.400
500
3
110
60
7424426
OKA-W6006050
2.400
600
3
110
60
7424428
Width
OKA-W2006050
OBO Item No.
7424420
Length
2.400
Width
200
Covers
3
Trunking height, max.
110
Duct height, min.
60
OKA-W3006050
OBO Item No.
7424422
Length
2.400
Width
300
Covers
3
Trunking height, max.
110
Duct height, min.
60
OKA-W4006050
OBO Item No.
7424424
Length
2.400
Width
400
Covers
3
Trunking height, max.
110
Duct height, min.
60
OKA-W5006050
OBO Item No.
7424426
Length
2.400
Width
500
Covers
3
Trunking height, max.
110
Duct height, min.
60
OKA-W6006050
OBO Item No.
7424428
Length
2.400
Width
600
Covers
3
Trunking height, max.
110
Duct height, min.
60
