Trunking unit, blank, height 65 mm
Trench Part No. OKA-T 30065 | OBO Item No. 7402223 | EAN 4012196434398
Trench Part No.
OKA-T 30065
OBO Item No.
7402223
Smallest selling unit: 1 piece
1piece
Description

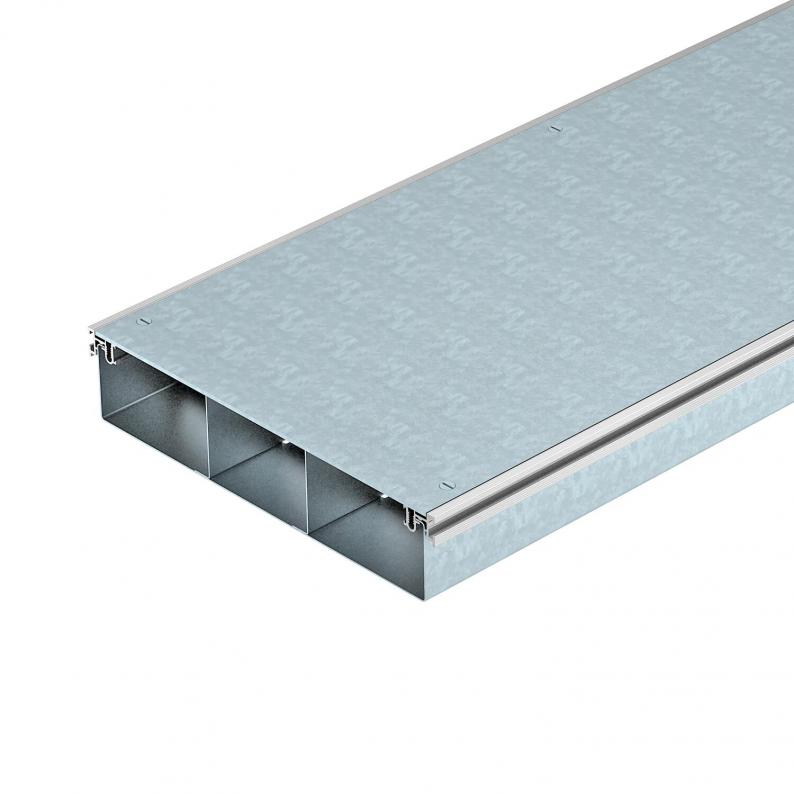

3 compartment flush floor trunking with 3 blind lids. Trunking unit consists of trunking connectors, fixing brackets and separating retainers.
Technical data

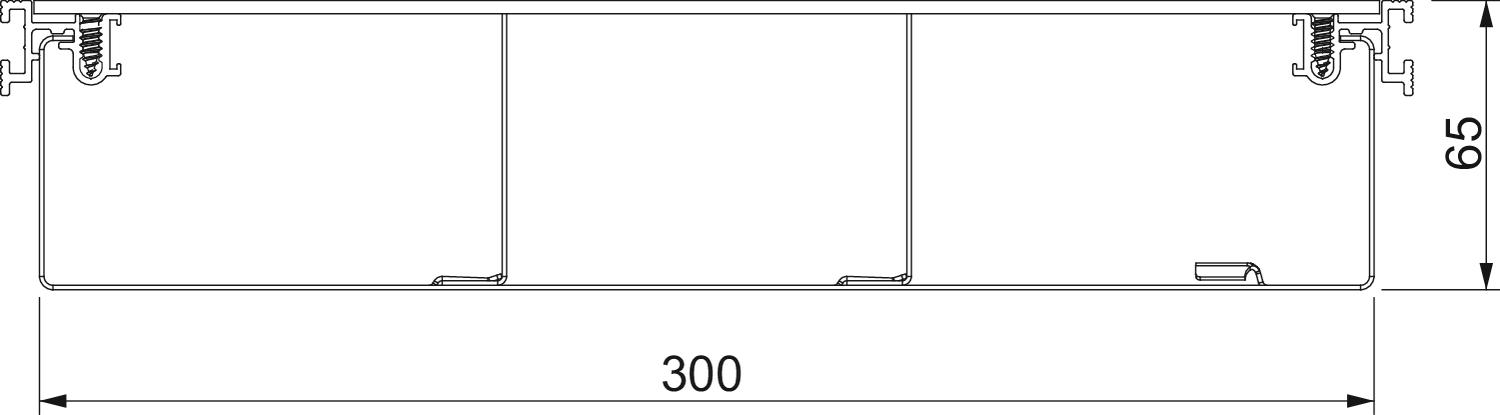

Dimensions
| Length | 2.400 mm |
|---|---|
| Width | 300 mm |
| Height | 65 mm |
| Dimension b | 300 mm |
| Dimension h | 65 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Number of planned flush-mount units | 0 |
| With separating retainer | yes |
| Suitable for expansion joint | no |
| Number of mounting openings | 0 |
| Expansion option | For installation of accessories |
| Heavy-duty version | no |
| Mounting opening | Without |
| Dimension | 2400x300x65 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Lock |
| CO2 Footprint (GWP) Cradle-to-Gate | 133,994 kg CO2e / 1 Piece |
