Trunking unit, blank, locking, height 100−150 mm
Trench Part No. OKA-W20010050R
|OBO Item No. 7424500
|EAN 4012195244479
Trench Part No.
OBO Item No.
Length
Width
Trunking height, max.
Duct height, min.
Smallest selling unit: 2.4 m
2.4m
m
Description

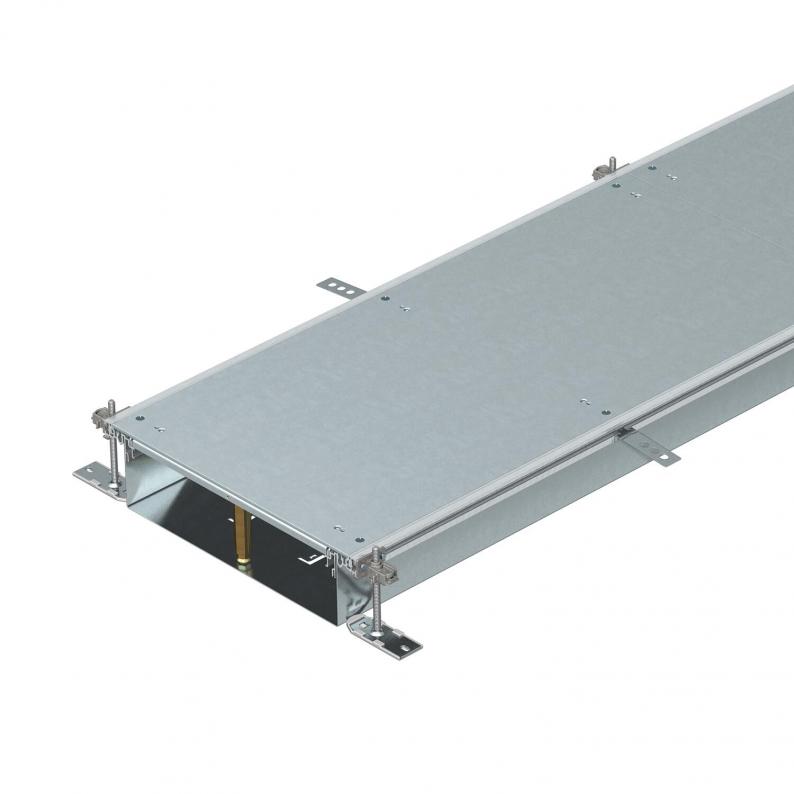

Ready-to-mount trunking unit with three self-locking blanking covers for cable laying, consisting of the trunking base (floor trough with side and floor covering guide profiles) and trunking lid. Floor trough with holding shackles for self-contacting mounting of dividers. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three cover joint supports (for nominal trunking widths 200 and 300) or three height-adjustable cover joint supports (for nominal trunking widths 400, 500 and 600). Trunking lid screwed down when delivered.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Width | 200 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of insertable partitions | 1 |
| Covers | 3 |

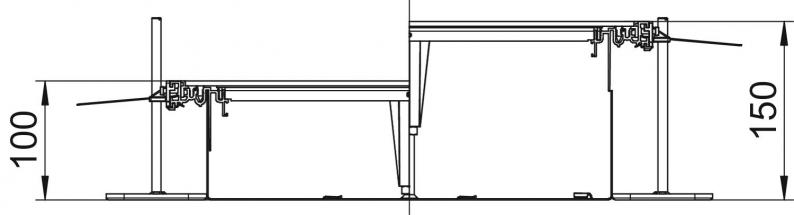

| Height-adjustment range, max. | 150 mm |
| Height-adjustment range, min. | 100 mm |
| Minimum screed height | 100 |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | yes |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | yes |
| Mounting opening cover | no |
| Number of planned flush-mount units | 3 |
| With separating retainer | no |
| Cover material thickness | 4 |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | no |
| Mounting opening | Without |
| Trunking height, max. | 150 mm |
| Duct height, min. | 100 mm |
| Dimension | 2400x200x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Plug |
Environmental Data
54,9886 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 54,9886 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Covers
Trunking height, max.
Duct height, min.
OBO Item No.
OKA-W20010050R
2.400
200
3
150
100
7424500
OKA-W30010050R
2.400
300
3
150
100
7424502
OKA-W40010050R
2.400
400
3
150
100
7424504
OKA-W50010050R
2.400
500
3
150
100
7424506
OKA-W60010050R
2.400
600
3
150
100
7424508
Width
OKA-W20010050R
OBO Item No.
7424500
Length
2.400
Width
200
Covers
3
Trunking height, max.
150
Duct height, min.
100
OKA-W30010050R
OBO Item No.
7424502
Length
2.400
Width
300
Covers
3
Trunking height, max.
150
Duct height, min.
100
OKA-W40010050R
OBO Item No.
7424504
Length
2.400
Width
400
Covers
3
Trunking height, max.
150
Duct height, min.
100
OKA-W50010050R
OBO Item No.
7424506
Length
2.400
Width
500
Covers
3
Trunking height, max.
150
Duct height, min.
100
OKA-W60010050R
OBO Item No.
7424508
Length
2.400
Width
600
Covers
3
Trunking height, max.
150
Duct height, min.
100
