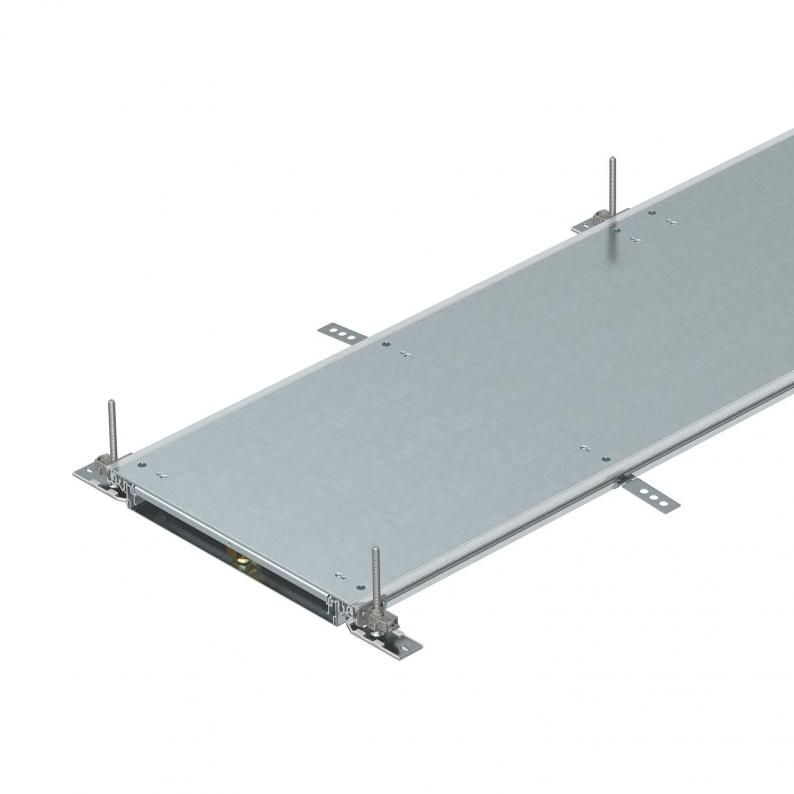

Trunking unit, blank, locking, height 40−70 mm
Trench Part No. OKA-W2004030R
|OBO Item No. 7424460
|EAN 4012195244356



Trench Part No.
OBO Item No.
Length
Width
Trunking height, max.
Duct height, min.
Smallest selling unit: 2.4 m
2.4m
m
Description
Ready-to-mount trunking unit with three self-locking blanking covers for cable laying, consisting of the trunking base (floor trough with side and floor covering guide profiles) and trunking lid. Floor trough with holding shackles for self-contacting mounting of dividers. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three cover joint supports (for nominal trunking widths 200 and 300) or three height-adjustable cover joint supports (for nominal trunking widths 400, 500 and 600). Trunking lid screwed down when delivered.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Width | 200 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of insertable partitions | 1 |
| Covers | 3 |

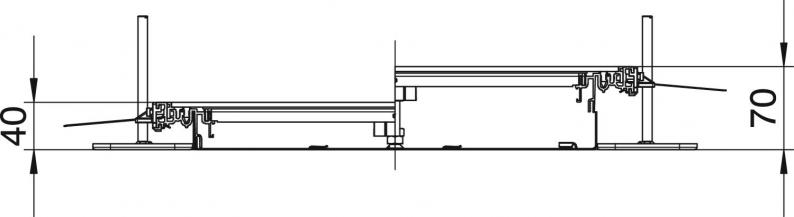

| Height-adjustment range, max. | 70 mm |
| Height-adjustment range, min. | 40 mm |
| Minimum screed height | 40 |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | yes |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | yes |
| Mounting opening cover | no |
| Number of planned flush-mount units | 3 |
| With separating retainer | no |
| Cover material thickness | 4 |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | no |
| Mounting opening | Without |
| Trunking height, max. | 70 mm |
| Duct height, min. | 40 mm |
| Dimension | 2400x200x40 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Plug |
Environmental Data
50,0738 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 50,0738 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Covers
Trunking height, max.
Duct height, min.
OBO Item No.
OKA-W2004030R
2.400
200
3
70
40
7424460
OKA-W3004030R
2.400
300
3
70
40
7424462
OKA-W4004030R
2.400
400
3
70
40
7424464
Width
OKA-W2004030R
OBO Item No.
7424460
Length
2.400
Width
200
Covers
3
Trunking height, max.
70
Duct height, min.
40
OKA-W3004030R
OBO Item No.
7424462
Length
2.400
Width
300
Covers
3
Trunking height, max.
70
Duct height, min.
40
OKA-W4004030R
OBO Item No.
7424464
Length
2.400
Width
400
Covers
3
Trunking height, max.
70
Duct height, min.
40
