Trunking unit for GES4, height 60−110 mm
Trench Part No. OKA-W3006050D4
|OBO Item No. 7424600
|EAN 4012195244677
Trench Part No.
OBO Item No.
Length
Width
Trunking height, max.
Duct height, min.
Smallest selling unit: 2.4 m
2.4m
m
Description

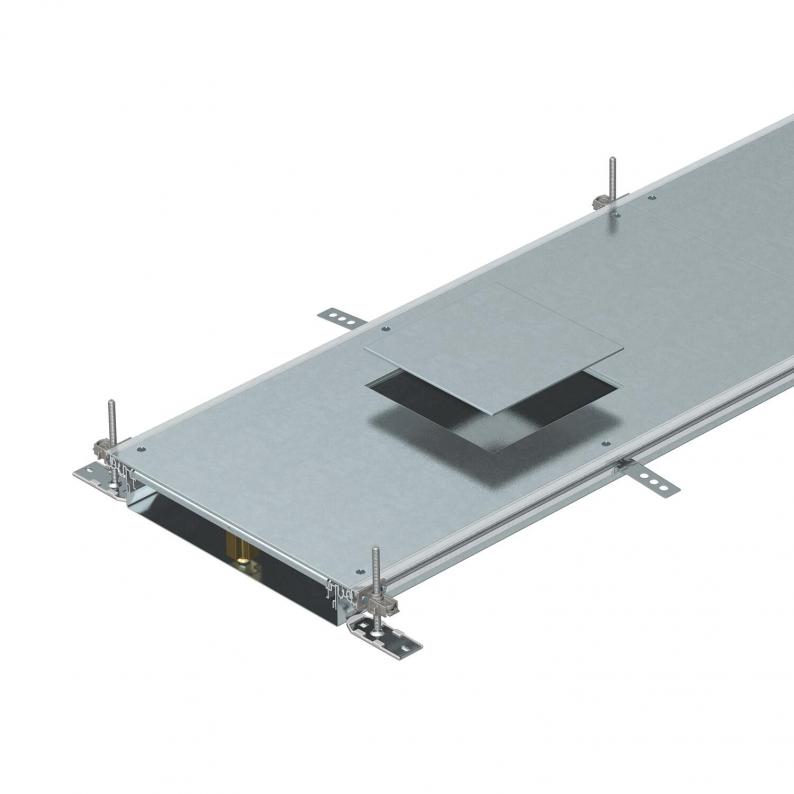

Ready-to-mount trunking unit with three or six device installation lids for cable laying and the installation of flush-mount units of nominal size 4, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid with blank covered mounting opening. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.
With screw-on device installation lids, each with an installation opening for an installation unit nominal size 4.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Width | 300 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of insertable partitions | 2 |
| Covers | 3 |
| Height-adjustment range, max. | 110 mm |
| Height-adjustment range, min. | 60 mm |
| Minimum screed height | 60 |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | yes |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening | For service outlet |
| Mounting opening cover | yes |
| Number of planned flush-mount units | 3 |
| With separating retainer | no |
| Cover material thickness | 4 |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | yes |
| Nominal size for device installation units | 4 |
| Mounting opening | Square |
| Trunking height, max. | 110 mm |
| Duct height, min. | 60 mm |
| Dimension | 2400x300x60 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Plug |
Environmental Data
64,5246 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 64,5246 kg CO2e / 1 Meter |
|---|
