Trunking unit for GES6, height 100−150 mm
Trench Part No. OKA-W40010050D6
|OBO Item No. 7424682
|EAN 4012195244783
Trench Part No.
OKA-W40010050D6
OBO Item No.
7424682
Length
2.400 mm
Width
400 mm
Covers
3

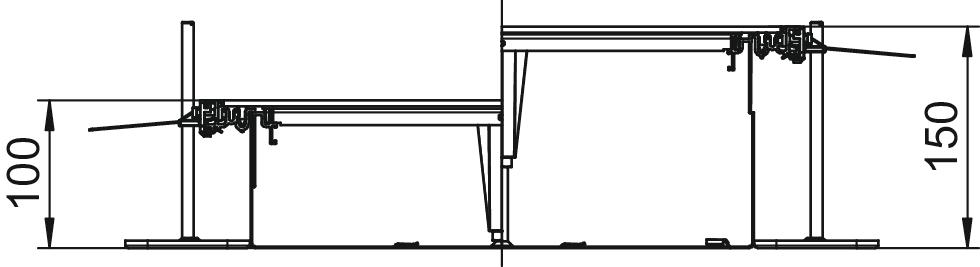

Trunking height, max.
150 mm
Duct height, min.
100 mm
Smallest selling unit: 2.4 m
2.4m
m
Description

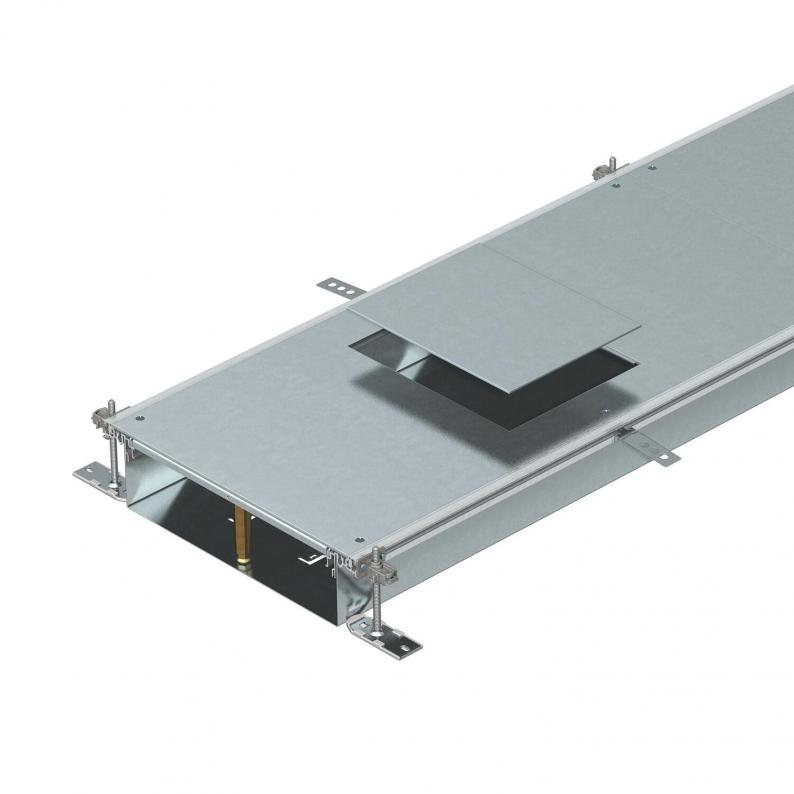

Ready-to-mount trunking unit with three or six device installation lids for cable laying and the installation of installation units of nominal size 6, consisting of the trunking base (floor trough with side and floor covering guide profiles) and trunking lid with blank mounting opening. Floor trough with holding shackles for self-contacting mounting of dividers. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three height-adjustable cover joint supports for nominal trunking width 400 or six height-adjustable cover joint supports for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.
With screw-on device installation lids, each with an installation opening for an installation unit nominal size 6.
Technical data
Dimensions
| Length | 2.400 mm |
|---|---|
| Width | 400 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of insertable partitions | 2 |
| Covers | 3 |
| Height-adjustment range, max. | 150 mm |
| Height-adjustment range, min. | 100 mm |
| Minimum screed height | 100 |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | yes |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening | For service outlet |
| Mounting opening cover | yes |
| Number of planned flush-mount units | 3 |
| With separating retainer | no |
| Cover material thickness | 4 |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | yes |
| Nominal size for device installation units | 6 |
| Mounting opening | Square |
| Trunking height, max. | 150 mm |
| Duct height, min. | 100 mm |
| Dimension | 2400x400x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Plug |
Environmental Data
79,53 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
