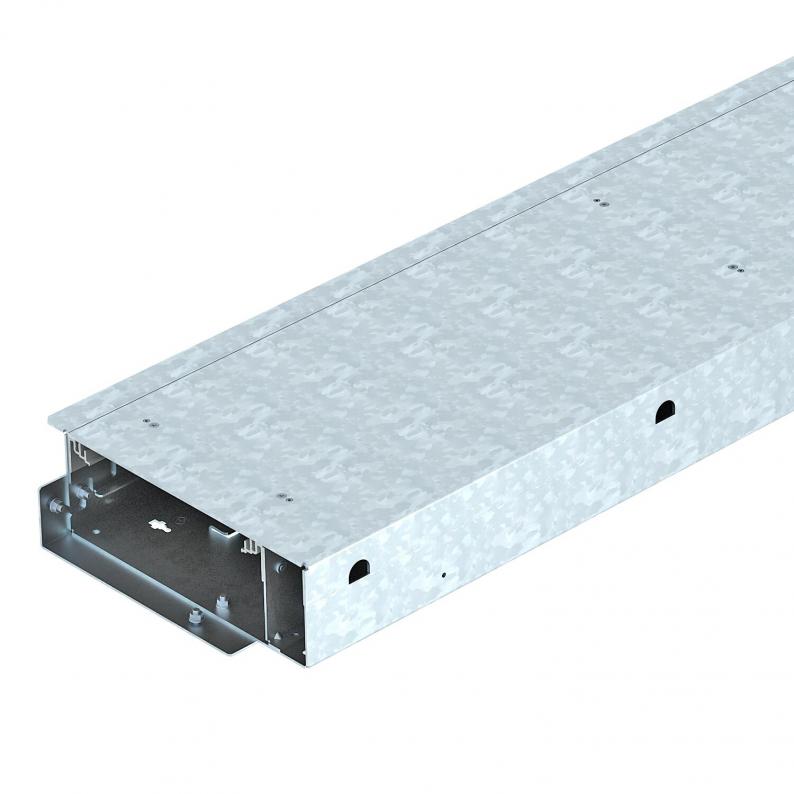

Trunking unit with blanking lid

Trunking unit with blanking lid

Trench Part No. OKB U 25085 BD
|
OBO Item No. 7403818
|
EAN 4012195862079
Show all variants
Trench Part No.
OKB U 25085 BD
OBO Item No.
7403818
Length
2.000 mm
Width
250 mm

Smallest selling unit: 2 m

m

Description

Ready-to-mount trunking unit for cable routing and device installation, consisting of a trunking base with two blanking covers. The scope of delivery contains two lid butt seals and one connector. For height adjustment, six height adjustment units are required. Load capacity up to a maximum of 5 kN. The trunking unit can be supplemented with an adjustable floor covering contact profile for screed limitation in areas of door frames and in front of radiator niches.

Technical data

Dimensions

Length2.000 mm
Width250 mm
Height93 mm
Dimension h85 mm

Technical data

Number of compartments2 St.
Cross-section, draw a4231 mm²
Cross-section, draw b7306 mm²
Height-adjustment range, min.0 mm
Minimum screed height93
Installation opening for on-floor tankno
Seal installation optionno
Decouplableyes
Floor plateyes
Floor careDry
With equipotential bondingno
Removable coveryes
Cover fastening, lockingno
Mounting opening coverno
With separating retainerno
Suitable for expansion jointno
With overhangyes
With connection openingno
Vertical load, small areato 3,000 N
Vertical load, large areato 5,000 N
Mounting openingWithout

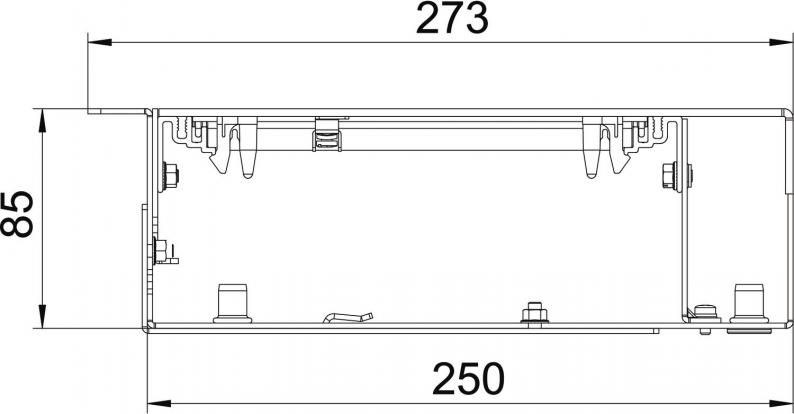

Dimension2000x273x85
SurfaceStrip galvanized
MaterialSteel
Separating retainer fasteningPlug

Environmental Data

55,8728 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate55,8728 kg CO2e / 1 Meter
