Trunking unit with brush bar

Trunking unit with brush bar

Trench Part No. OKB U 25085 BLON
|
OBO Item No. 7403816
|
EAN 4012195845935
Show all variants
Trench Part No.
OKB U 25085 BLON
OBO Item No.
7403816
Length
2.000 mm
Width
250 mm

Smallest selling unit: 2 m

m

Description

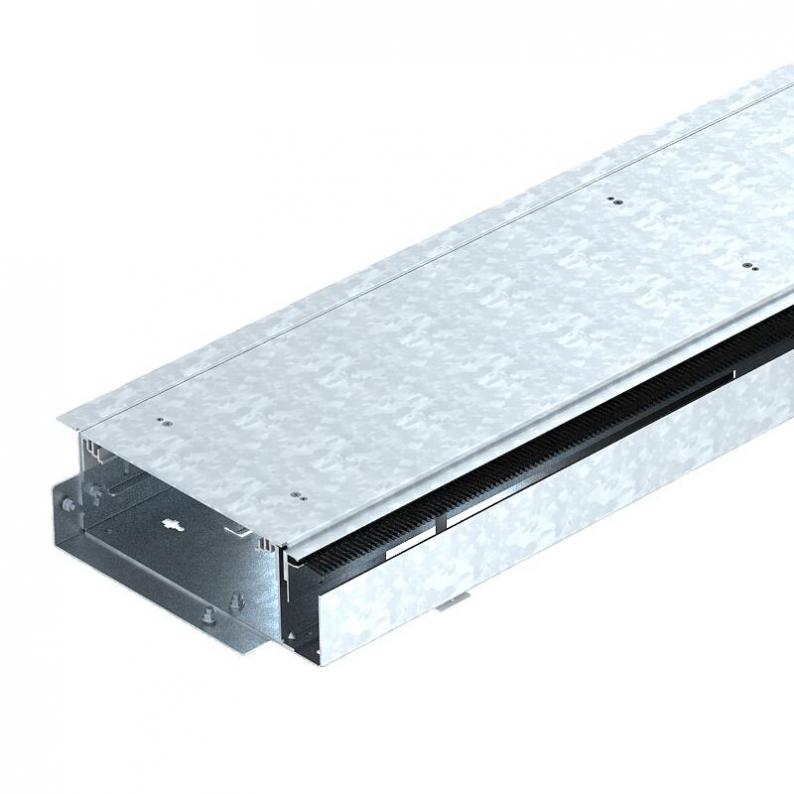

Ready-to-mount trunking unit for cable routing and device installation, consisting of a trunking base with two covers and a height-adjustable brush bar. The scope of delivery contains two lid butt seals and one connector. For height adjustment, six height adjustment units are required. Load capacity up to a maximum of 5 kN. The trunking unit can be supplemented with an adjustable covering contact profile for screed limitation in areas of door soffits and in front of radiator alcoves.



Technical data

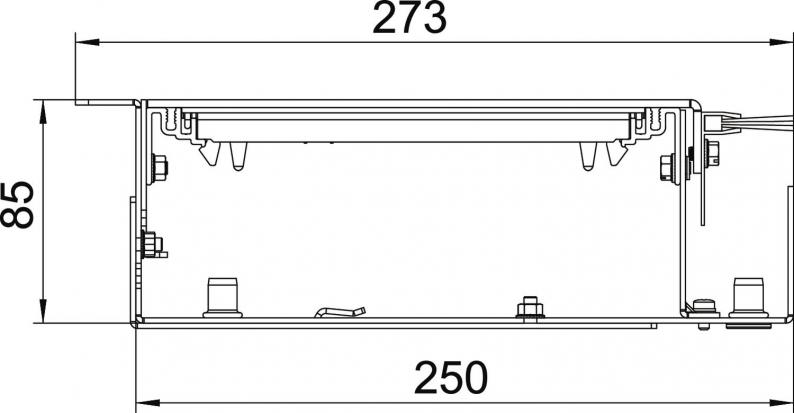

Dimensions

Length2.000 mm
Width250 mm
Height93 mm
Dimension h85 mm

Technical data

Usable cross-section11500 mm²
Number of compartments2 St.
Cross-section, draw a4231 mm²
Cross-section, draw b7306 mm²
Height-adjustment range, min.0 mm
Minimum screed height93
Installation opening for on-floor tankno
Seal installation optionno
Decouplableyes
Floor plateyes
Floor careDry
With equipotential bondingno
Removable coveryes
Cover fastening, lockingyes
Mounting opening coverno
With separating retainerno
Suitable for expansion jointno
With overhangyes
With connection openingno
Heavy-duty versionyes
Nominal size for device installation units250
Vertical load, small areato 3,000 N
Vertical load, large areato 5,000 N
Mounting openingWithout
Dimension2000x273x80
SurfaceStrip galvanized
MaterialSteel
Separating retainer fasteningPlug

Environmental Data

55,6285 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate55,6285 kg CO2e / 1 Meter
