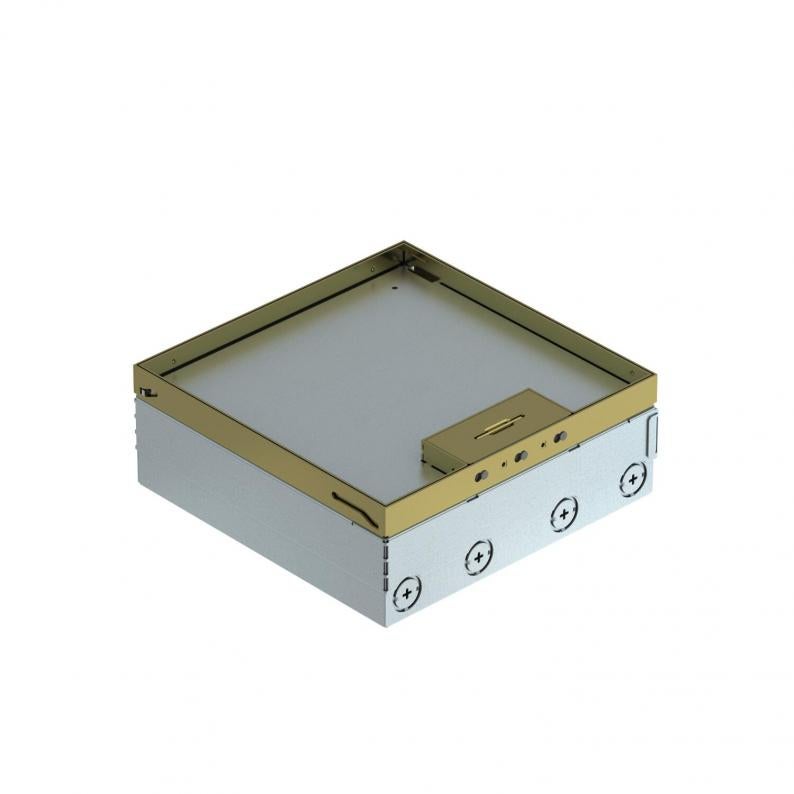

UDHOME9 floor box, freely equippable, brass

UDHOME9 floor box, freely equippable, brass

Trench Part No. UDHOME9 2M
|
OBO Item No. 7427328
|
EAN 4012195916796
Show all variants
Trench Part No.
UDHOME9 2M
OBO Item No.
7427328
Floor covering thickness
15 mm

Smallest selling unit: 1 piece

piece

Description

Square floor box for use in dry-cleaned cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). Empty housing for up to three UT4 universal supports for up to 12 Modul 45 ® devices. Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.
Surfaces visible in the floor covering made of brass.

Technical data

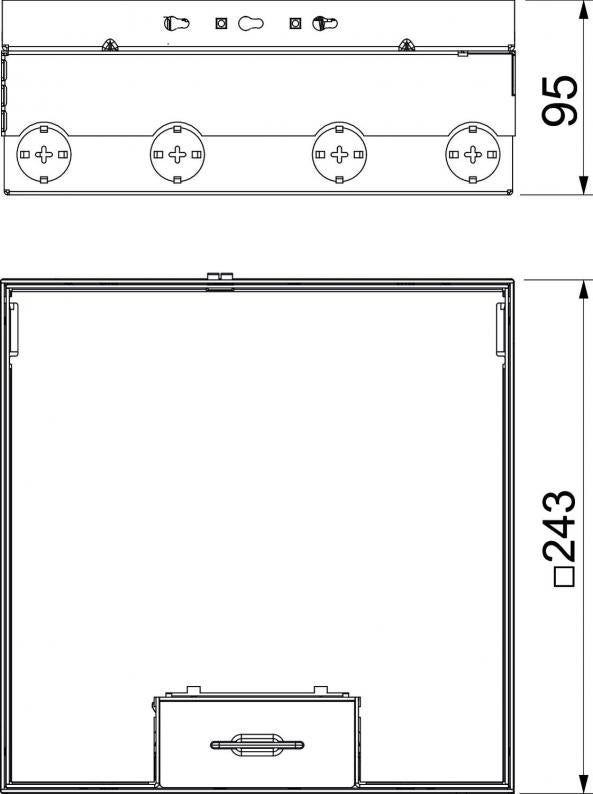

Dimensions

Length246 mm
Width246 mm

Technical data

Screed height, max.110 mm
Screed height, min.95 mm
Floor height, max.125 mm
Floor height, min.95 mm
Cover versionFloor covering recess
Floor covering thickness15 mm
Height-adjustment range, max.125 mm
Height-adjustment range, min.95 mm
Length of installation dimensions246 mm
Wide installation dimensions246 mm
Length of external dimensions243 mm
Wide external dimensions243 mm
Cable outlet versionSwivellable cord outlet
Protection rating IK codeIK10
Protection rating (IP) when usedIP20
Protection rating (IP) when unusedIP40
Vertical load, small areato 3,000 N
Vertical load, large areato 5,000 N
Opening mechanismHandle
EquipmentEmpty housing
MaterialBrass

Environmental Data

19,0193 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate19,0193 kg CO2e / 1 Piece
