UDS underfloor connection sockets
Trench Part No. UDSSD 35048 9
|OBO Item No. 7400417
|EAN 4012196435555
Trench Part No.
UDSSD 35048 9
OBO Item No.
7400417
Smallest selling unit: 1 piece
1piece
piece
Description

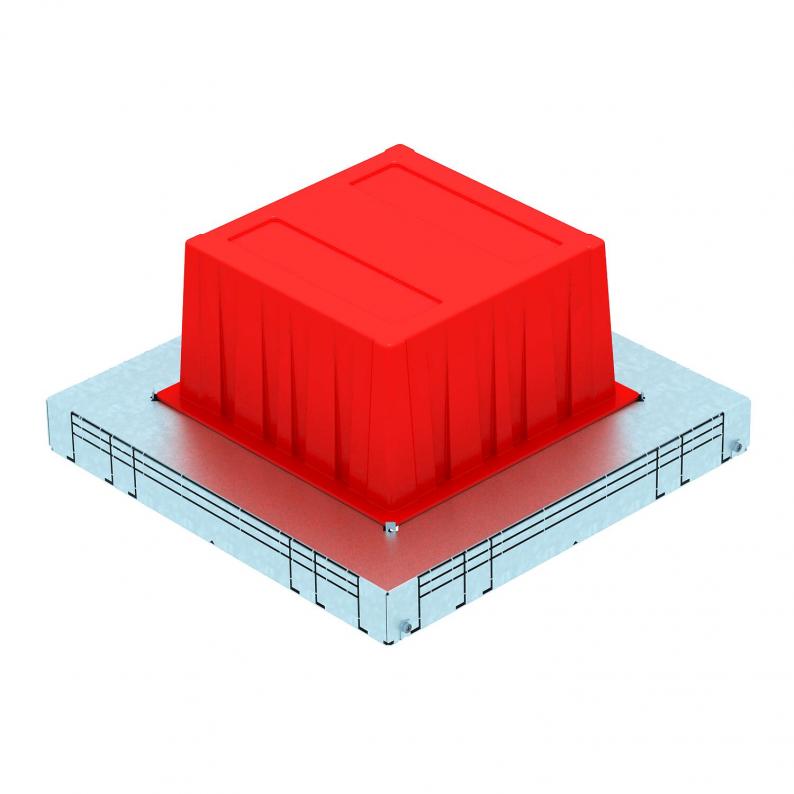

Underfloor connection socket with fixed, unchangeable installation opening for an installation unit of nominal size 9. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor socket possesses installation openings for 2 or 3-compartment underfloor ducts made of sheet steel on all four sides.
Technical data

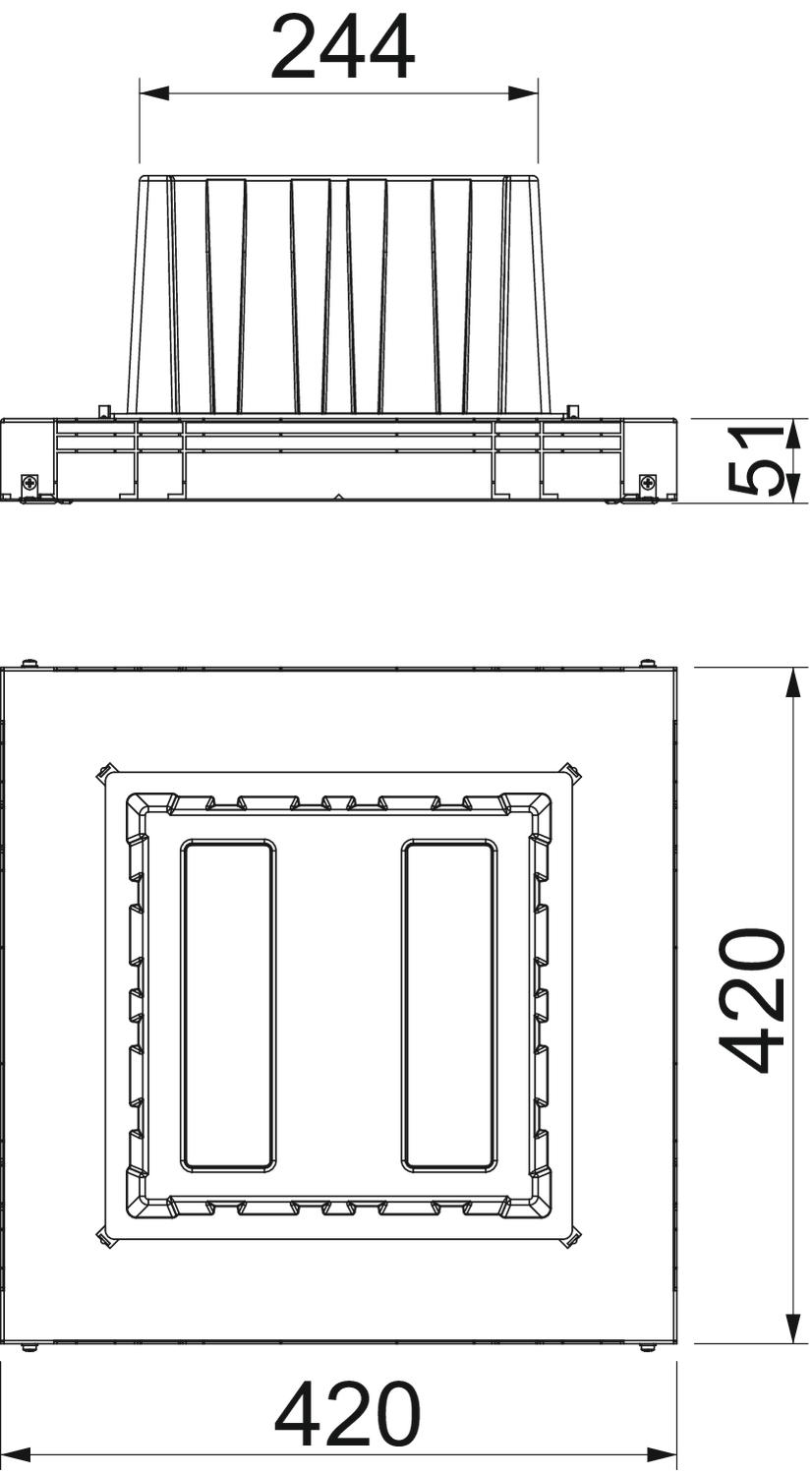

Dimensions
| Length | 420 mm |
|---|---|
| Width | 420 mm |
| Height | 51 mm |
| Dimension A | 420 mm |
| Dimension B | 420 mm |
| Dimension b | 244 mm |
| Dimension h | 51 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| Screed height, max. | 200 mm |
| Screed height, min. | 90 mm |
| Minimum screed height | 90 |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, max. | 350 mm |
| Trunking width, min. | 190 mm |
| Installation opening for on-floor tank | no |
| Suitable for underfloor ducts | yes |
| Installation opening for flush-mount unit | Square |
| Expansion option | For installation of accessories |
| For pipe connection | no |
| Nominal size for device installation units | 9 |
| Trunking height, max. | 48 mm |
| Duct height, min. | 28 mm |
| Dimension | 420x420x200 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
17,8959 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 17,8959 kg CO2e / 1 Piece |
|---|
