Underfloor box UDS4 for installation pipe and metal duct
Trench Part No. UDSSD 25038 4
|OBO Item No. 7400349
|EAN 4012195729778
Trench Part No.
UDSSD 25038 4
OBO Item No.
7400349
Smallest selling unit: 1 piece
1piece
piece
Description

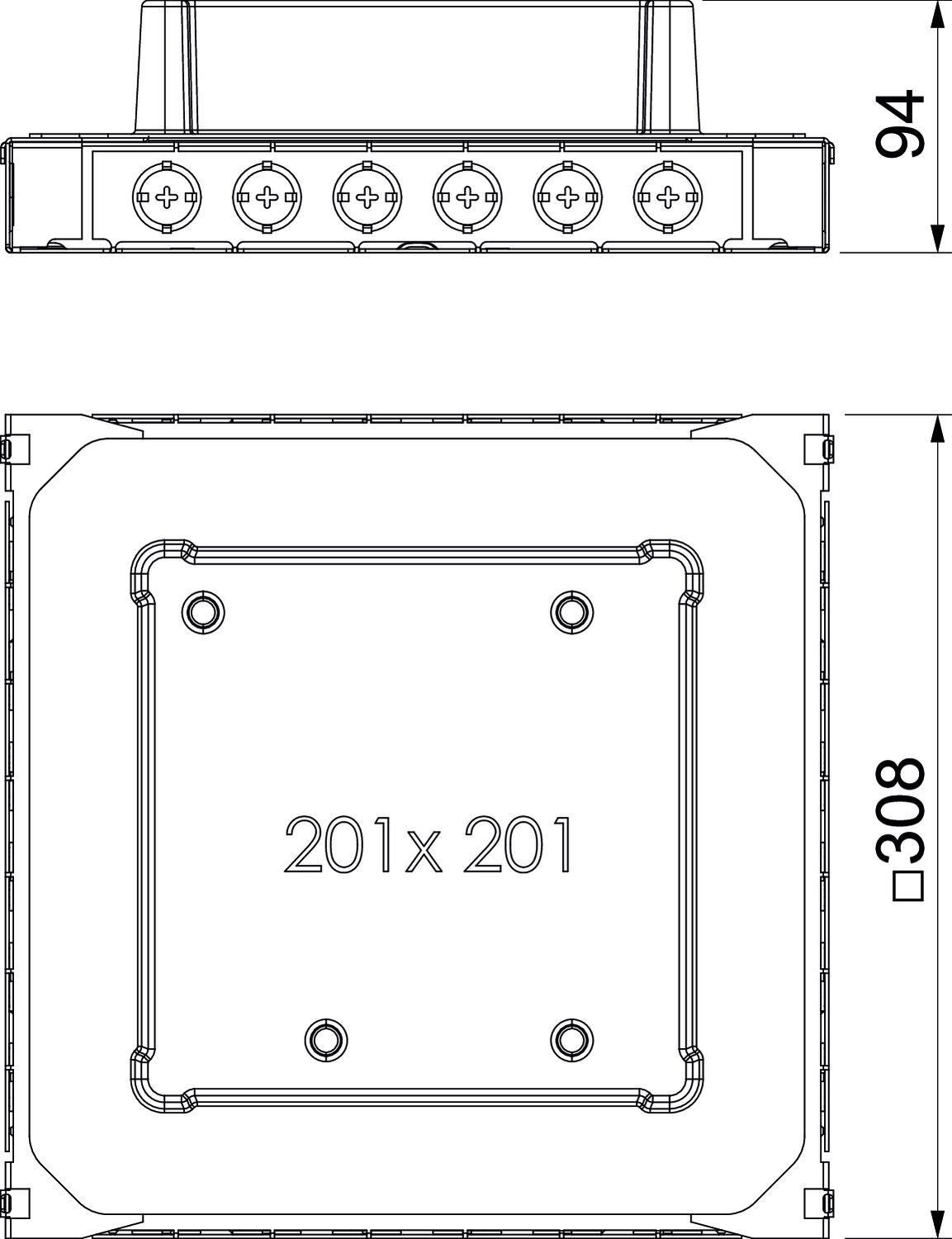

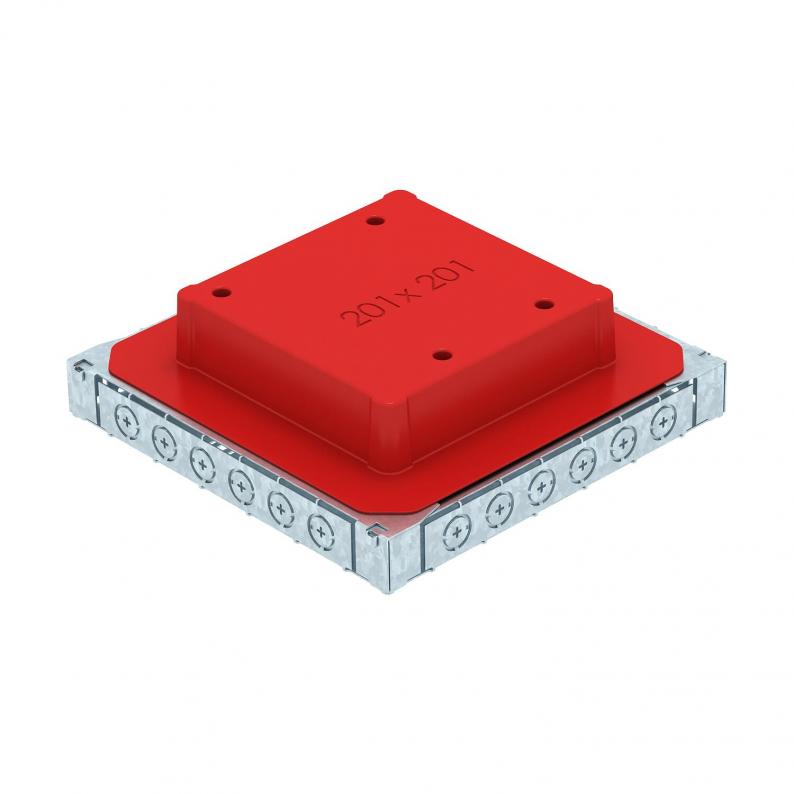

Underfloor outlet box with fixed, unchangeable 201 x 201 mm installation opening for an installation unit of nominal size 4. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for a 2 or 3-compartment sheet steel underfloor duct of nominal size 25038 as well as six M20 or M25 installation pipes on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 90 mm.
Technical data
Dimensions
| Length | 308 mm |
|---|---|
| Width | 308 mm |
| Height | 92 mm |
Technical data
| Screed height, max. | 90 mm |
|---|---|
| Screed height, min. | 65 mm |
| Height-adjustment range, max. | 95 mm |
| Height-adjustment range, min. | 62 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, max. | 250 mm |
| Trunking width, min. | 250 mm |
| Installation opening for on-floor tank | no |
| Number of installable devices | 1 |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | no |
| Suitable for underfloor ducts | no |
| Lowerable to be flush-floor | no |
| Installation opening for flush-mount unit | Square |
| For pipe connection | yes |
| Nominal size for device installation units | 4 |
| Nominal size | 308 mm |
| Protection rating (IP) when used | IP20 |
| Trunking height, max. | 38 mm |
| Duct height, min. | 38 mm |
| Dimension | 308x308x92 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
9,8986 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 9,8986 kg CO2e / 1 Piece |
|---|
