Underfloor box with GES9

Underfloor box with GES9

Trench Part No. SFB GES9 7011 BS
|
OBO Item No. 7427475
|
EAN 4012196428274
Show all variants
Trench Part No.
SFB GES9 7011 BS
OBO Item No.
7427475

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

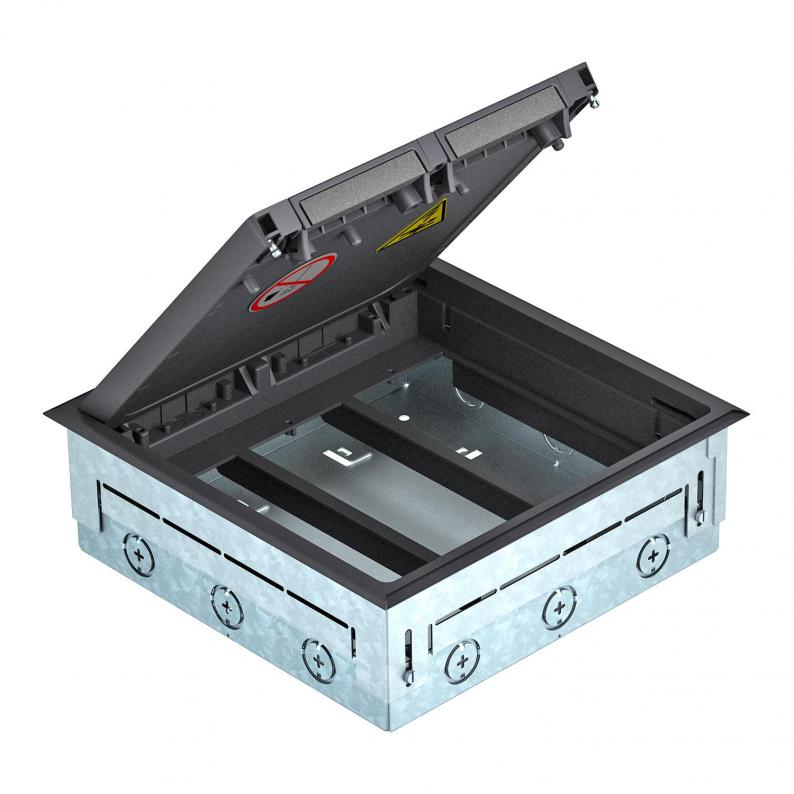

Square screed socket with GES9 UGE service outlet for use in screed floors for indoor use. With pre-marked insertion openings for pipelines (M20/M25) on all four sides.

In the as-delivered state, the installation housing is closed with a mounting protection lid.

The minimum installation depth is 65 mm, the height-adjustment range +25 mm.

Three type APMT5 cover plates can be installed.

Technical data

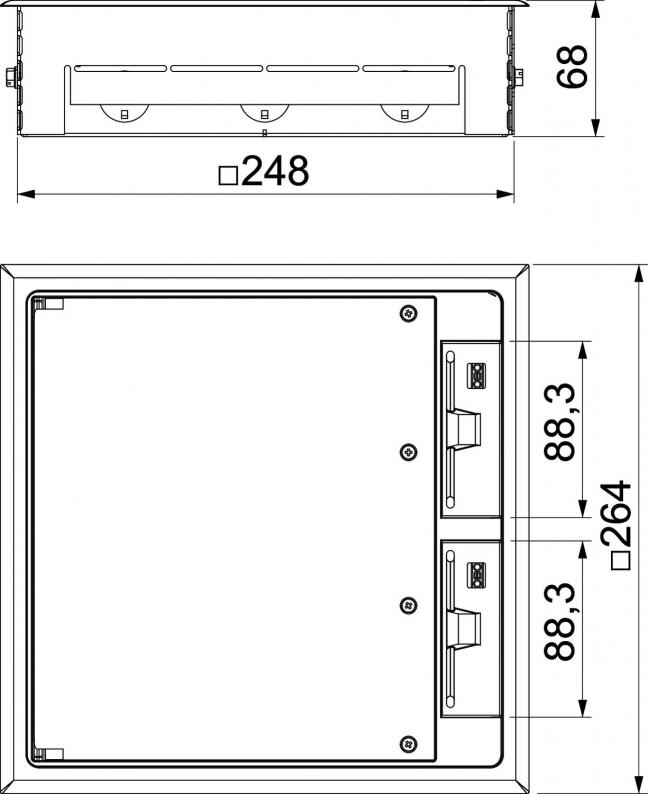

Dimensions

Length264 mm
Width264 mm

Technical data

Screed height, max.85 mm
Screed height, min.65 mm
Floor covering thickness10 mm
Height-adjustment range, max.85 mm
Height-adjustment range, min.65 mm
Suitable for screed-covered underfloor ductsno
Suitable for screed-flush closed underfloor ductsno
Number of installable devices6
Seal installation optionno
Suitable for underfloor ductsno
Suitable for cavity floor installationno
Suitable for raised floor installationno
Floor careDry
Frame versionCarpet protection frame
Cable outlet versionSwivellable cord outlet
Protection rating IK codeIK08
Heavy-duty versionno
Nominal size for device installation units9
Protection rating (IP) when usedIP20
Protection rating (IP) when unusedIP40
Vertical load, small areato 2,000 N
Vertical load, large areato 3,000 N
Opening mechanismHandle
Dimension264x264x91
MaterialPolyamide
ColourIron grey; RAL 7011
CO2 Footprint (GWP) Cradle-to-Gate11,6274 kg CO2e / 1 Piece
