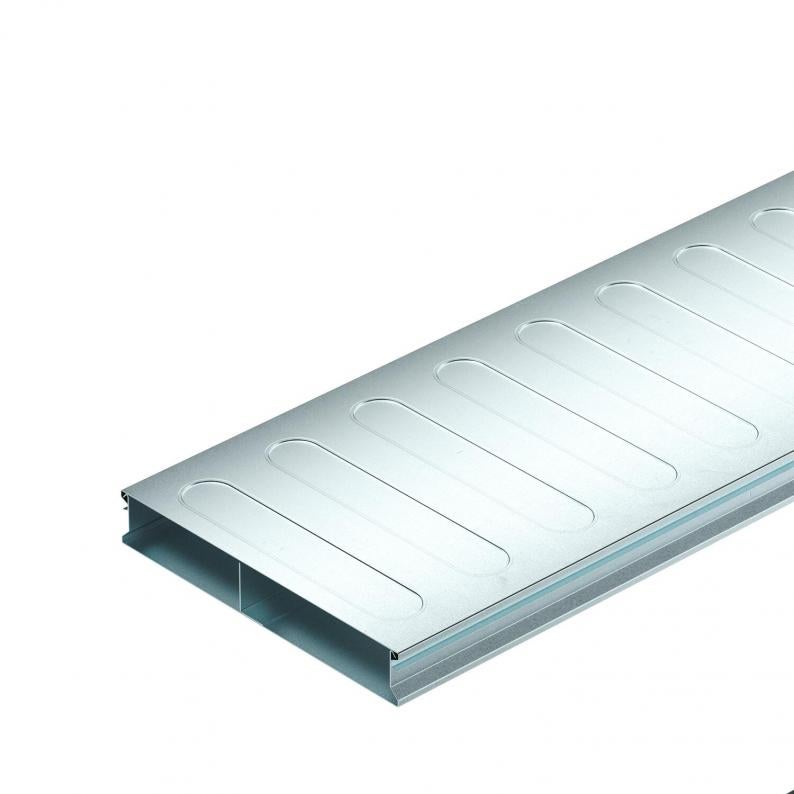

Underfloor duct, 2 pieces, 2-compartment, duct height 38 mm
Trench Part No. S2 25038-2
|OBO Item No. 7400267
|EAN 4012197351984
Trench Part No.
OBO Item No.
Length
Width
Number of compartments
Smallest selling unit: 2 m
2m
m
Description
Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN.
The profiled side walls offer a locking mechanism to lock the duct cover onto the duct base. The stiffening beads in the duct cover serve to create stability.
Technical data
Dimensions
| Length | 2.000 mm |
|---|---|
| Width | 250 mm |
| Height | 38 mm |
| Dimension b | 140 mm |
| Dimension a | 110 mm |
| Dimension h | 38 mm |
Technical data
| Usable cross-section | 8524 mm² |
|---|---|
| Number of compartments | 2 St. |
| Number of fixed partitions | 1 |
| Cross-section, draw a | 3717 mm² |
| Cross-section, draw b | 4807 mm² |
| Trunking width, min. | 250 mm |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | yes |
| Vertical load, large area | to 1,500 N |
| Duct height, min. | 38 mm |
| Dimension | 2000x250x38 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
8,569 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 8,569 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Number of compartments
OBO Item No.
S2 19038-2
2.000
190
2
7400258
S2 25038-2
2.000
250
2
7400267
