Underfloor duct, 2 pieces, 2-compartment, duct height 48 mm
Trench Part No. S2 19048-2
|OBO Item No. 7400261
|EAN 4012197351946
Trench Part No.
OBO Item No.
Length
Width
Number of compartments
Smallest selling unit: 2 m
2m
m
Description

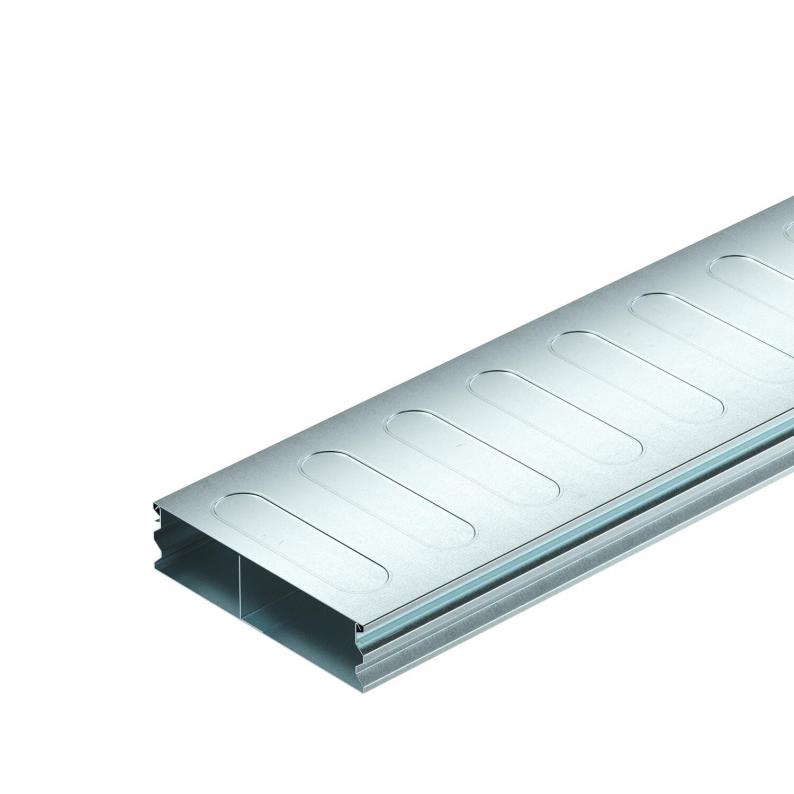

Underfloor trunking (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN.
The profiled side walls offer a locking mechanism to lock the duct cover onto the duct base. The stiffening beads in the duct cover serve to create stability.
Technical data
Dimensions
| Length | 2.000 mm |
|---|---|
| Width | 190 mm |
| Height | 48 mm |

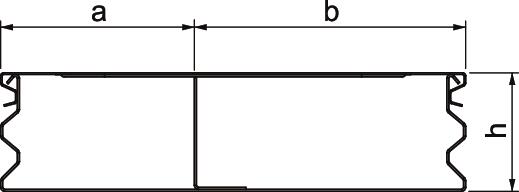

| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 48 mm |
Technical data
| Usable cross-section | 8217 mm² |
|---|---|
| Number of compartments | 2 St. |
| Number of fixed partitions | 1 |
| Cross-section, draw a | 3413 mm² |
| Cross-section, draw b | 4804 mm² |
| Trunking width, min. | 190 mm |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | yes |
| Vertical load, large area | to 1,500 N |
| Duct height, min. | 48 mm |
| Dimension | 2000x190x48 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
7,6791 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 7,6791 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (4)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Number of compartments
OBO Item No.
S2 19048-2
2.000
190
2
7400261
S2 25048-2
2.000
250
2
7400269
