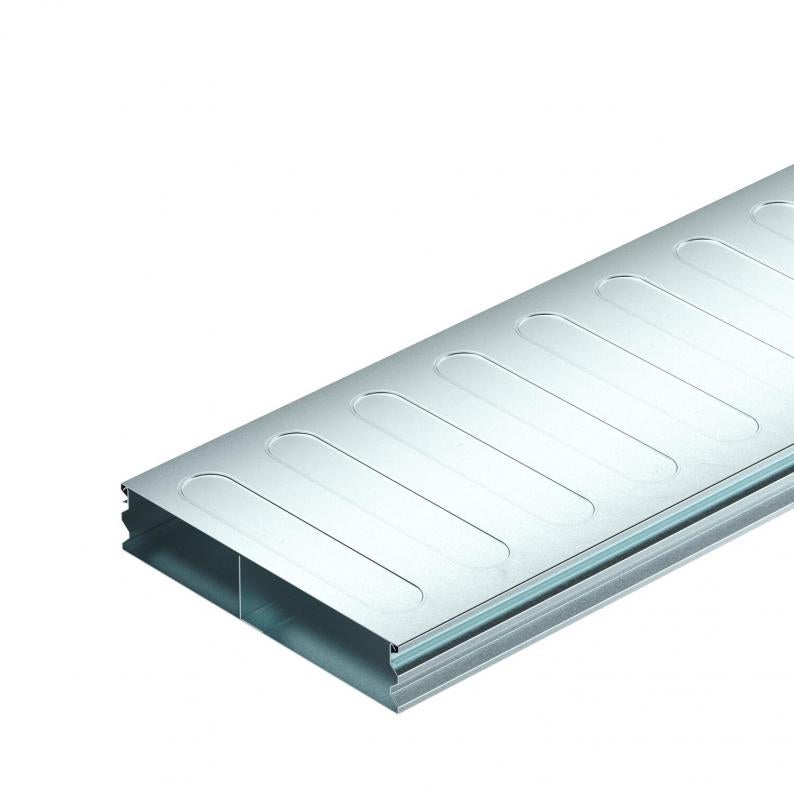

Underfloor duct, 2 pieces, 2-compartment, duct height 48 mm

Underfloor duct, 2 pieces, 2-compartment, duct height 48 mm

Trench Part No. S2 25048-2
|
OBO Item No. 7400269
|
EAN 4012197352004
Show all variants
Trench Part No.
OBO Item No.
Length
Width
Number of compartments

Smallest selling unit: 2 m

m

Description

Underfloor trunking (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN.

The profiled side walls offer a locking mechanism to lock the duct cover onto the duct base. The stiffening beads in the duct cover serve to create stability.

Technical data

Dimensions

Length2.000 mm
Width250 mm
Height48 mm
Dimension b140 mm
Dimension a110 mm
Dimension h48 mm

Technical data

Usable cross-section10960 mm²
Number of compartments2 St.
Number of fixed partitions1
Cross-section, draw a4784 mm²
Cross-section, draw b6176 mm²
Trunking width, min.250 mm
Decouplableno
Floor plateyes
Application areaScreed-covered
Removable coveryes
Vertical load, large areato 1,500 N
ROHS-conformantyes
Duct height, min.48 mm
Dimension2000x250x48
SurfaceStrip galvanised
MaterialSteel
Product seriesEÜK Trunking system

Environmental Data

9,1537 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate9,1537 kg CO2e / 1 Meter
CO₂ Footprint (GWP)91537 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1
