Underfloor duct, 2 pieces, 2-compartment, duct height 58 mm
Trench Part No. S2 25058-2
|OBO Item No. 7400271
|EAN 4012197352028
Trench Part No.
S2 25058-2
OBO Item No.
7400271
Length
2.000 mm
Width
250 mm
Number of compartments
2 St.
Smallest selling unit: 2 m
2m
m
Description

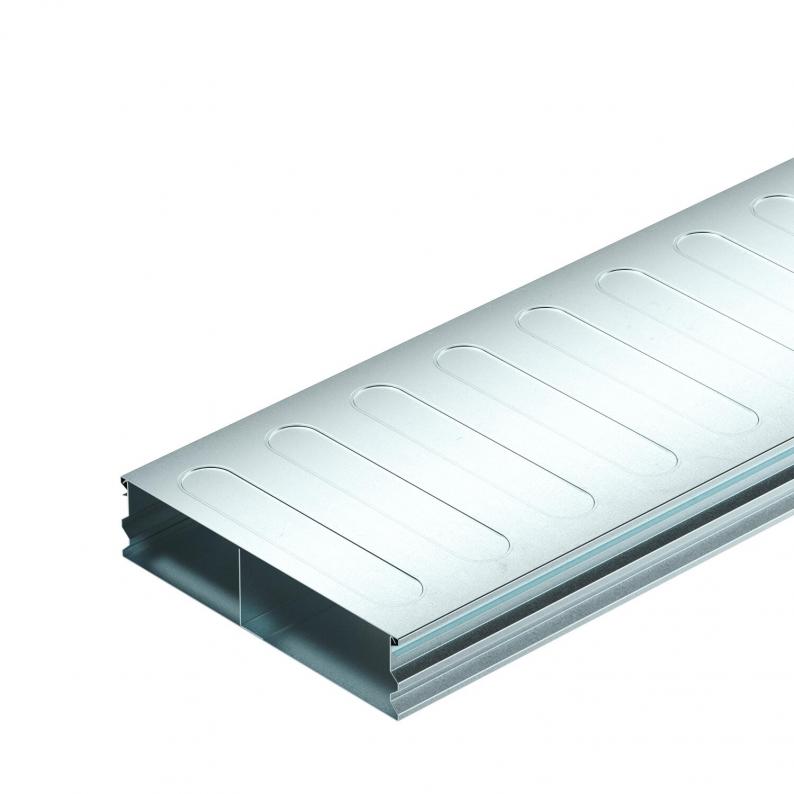

Underfloor trunking (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN. Only compatible with the UZD250-4/350-4
The profiled side walls offer a locking mechanism to lock the duct cover onto the duct base. The stiffening beads in the duct cover serve to create stability.
Technical data
Dimensions
| Length | 2.000 mm |
|---|---|
| Width | 250 mm |
| Height | 58 mm |

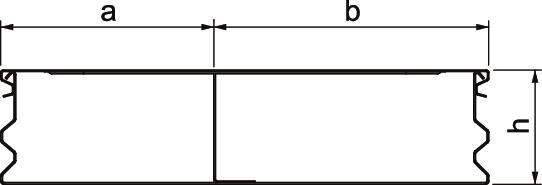

| Dimension b | 140 mm |
| Dimension a | 110 mm |
| Dimension h | 58 mm |
Technical data
| Usable cross-section | 13300 mm² |
|---|---|
| Number of compartments | 2 St. |
| Number of fixed partitions | 1 |
| Cross-section, draw a | 5800 mm² |
| Cross-section, draw b | 7500 mm² |
| Trunking width, min. | 250 mm |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | yes |
| Vertical load, large area | to 1,500 N |
| Duct height, min. | 58 mm |
| Dimension | 2000x250x58 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
9,5718 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 9,5718 kg CO2e / 1 Meter |
|---|
