Underfloor duct, 2 pieces, 3-compartment, duct height 38 mm
Trench Part No. S3 25038-2
|OBO Item No. 7400279
|EAN 4012197352066
Trench Part No.
OBO Item No.
Length
Width
Number of compartments
Smallest selling unit: 2 m
2m
m
Description

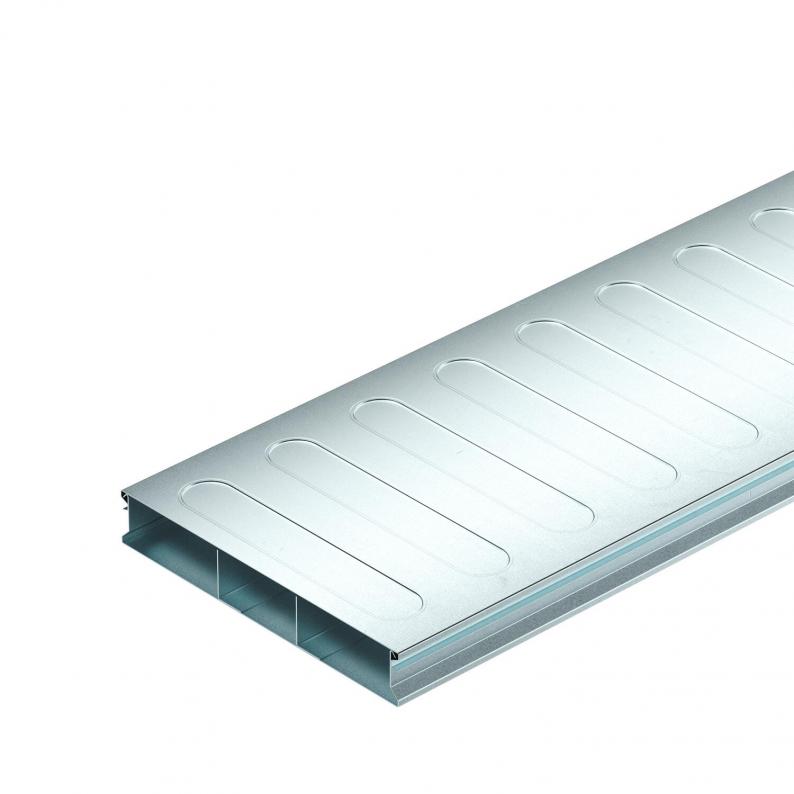

Underfloor trunking (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN.
The profiled side walls offer a locking mechanism to lock the duct cover onto the duct base. The stiffening beads in the duct cover serve to create stability.
Technical data
Dimensions
| Length | 2.000 mm |
|---|---|
| Width | 250 mm |
| Height | 38 mm |

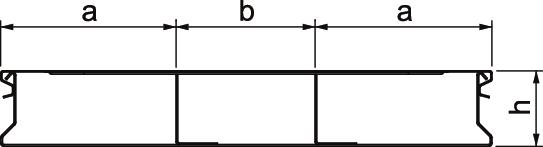

| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 38 mm |
Technical data
| Usable cross-section | 8422 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of fixed partitions | 2 |
| Cross-section, draw a | 2962 mm² |
| Cross-section, draw b | 2498 mm² |
| Trunking width, min. | 250 mm |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | yes |
| Vertical load, large area | to 1,500 N |
| Duct height, min. | 38 mm |
| Dimension | 2000x250x38 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
9,351 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 9,351 kg CO2e / 1 Meter |
|---|
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Number of compartments
OBO Item No.
S3 25038-2
2.000
250
3
7400279
S3 35038-2
2.000
350
3
7400289
