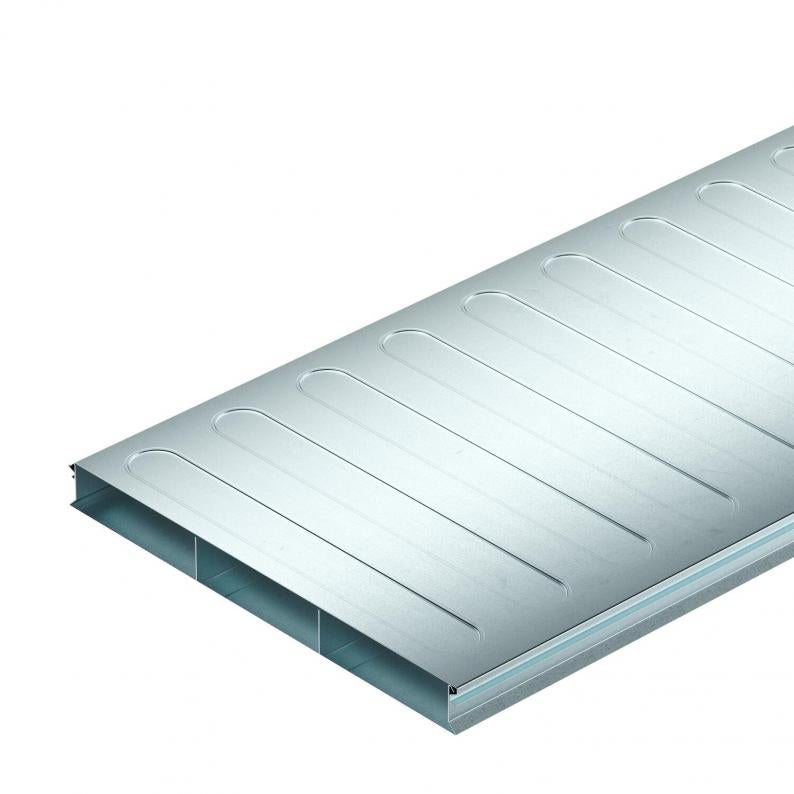

Underfloor duct, 2 pieces, 3-compartment, duct height 38 mm

Underfloor duct, 2 pieces, 3-compartment, duct height 38 mm

Trench Part No. S3 35038-2
|
OBO Item No. 7400289
|
EAN 4012197352141
Show all variants
Trench Part No.
OBO Item No.
Length
Width
Number of compartments

Smallest selling unit: 2 m

m

Description

Underfloor trunking (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN.

The profiled side walls offer a locking mechanism to lock the duct cover onto the duct base. The stiffening beads in the duct cover serve to create stability.

Technical data

Dimensions

Length2.000 mm
Width350 mm
Height38 mm
Dimension b110 mm
Dimension a120 mm
Dimension h38 mm

Technical data

Usable cross-section12054 mm²
Number of compartments3 St.
Number of fixed partitions2
Cross-section, draw a4060 mm²
Cross-section, draw b3934 mm²
Trunking width, min.350 mm
Decouplableno
Floor plateyes
Application areaScreed-covered
Removable coveryes
Vertical load, large areato 1,500 N
ROHS-conformantyes
Duct height, min.38 mm
Dimension2000x350x38
SurfaceStrip galvanised
MaterialSteel
Product seriesEÜK Trunking system

Environmental Data

11,805 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate11,805 kg CO2e / 1 Meter
CO₂ Footprint (GWP)11805 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
S3 25038-2
OBO Item No.
7400279
Length
2.000
Width
250
Number of compartments
3
S3 35038-2
OBO Item No.
7400289
Length
2.000
Width
350
Number of compartments
3
