UZD250-4 junction and branch box
Trench Part No. UZD250-4
|OBO Item No. 7410022
|EAN 4012197375324
Trench Part No.
UZD250-4
OBO Item No.
7410022
Cover version
Universal
Installation opening for flush-mount unit
Square
Smallest selling unit: 1 piece
1piece
piece
Description

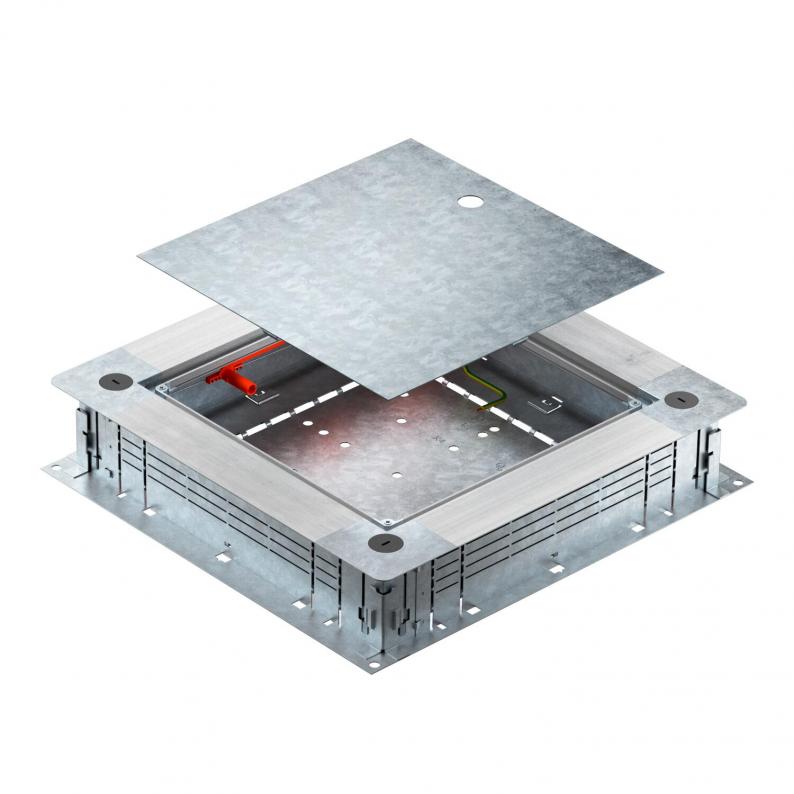

Junction and branch box for screed-covered underfloor installation duct with sheet steel side walls. For mounting of installation units in the mounting cover (to be ordered separately). Can be infinitely adjusted to a nominal screed height of 80–160 mm using the quick height-adjustment unit. The screed can be worked up to be flush with the screed draw-off edge. With noise decoupling option after screed laying and can also be used with system accessories for heavy-duty applications. Insertion of cables with the 2-part EÜK duct.
Technical data

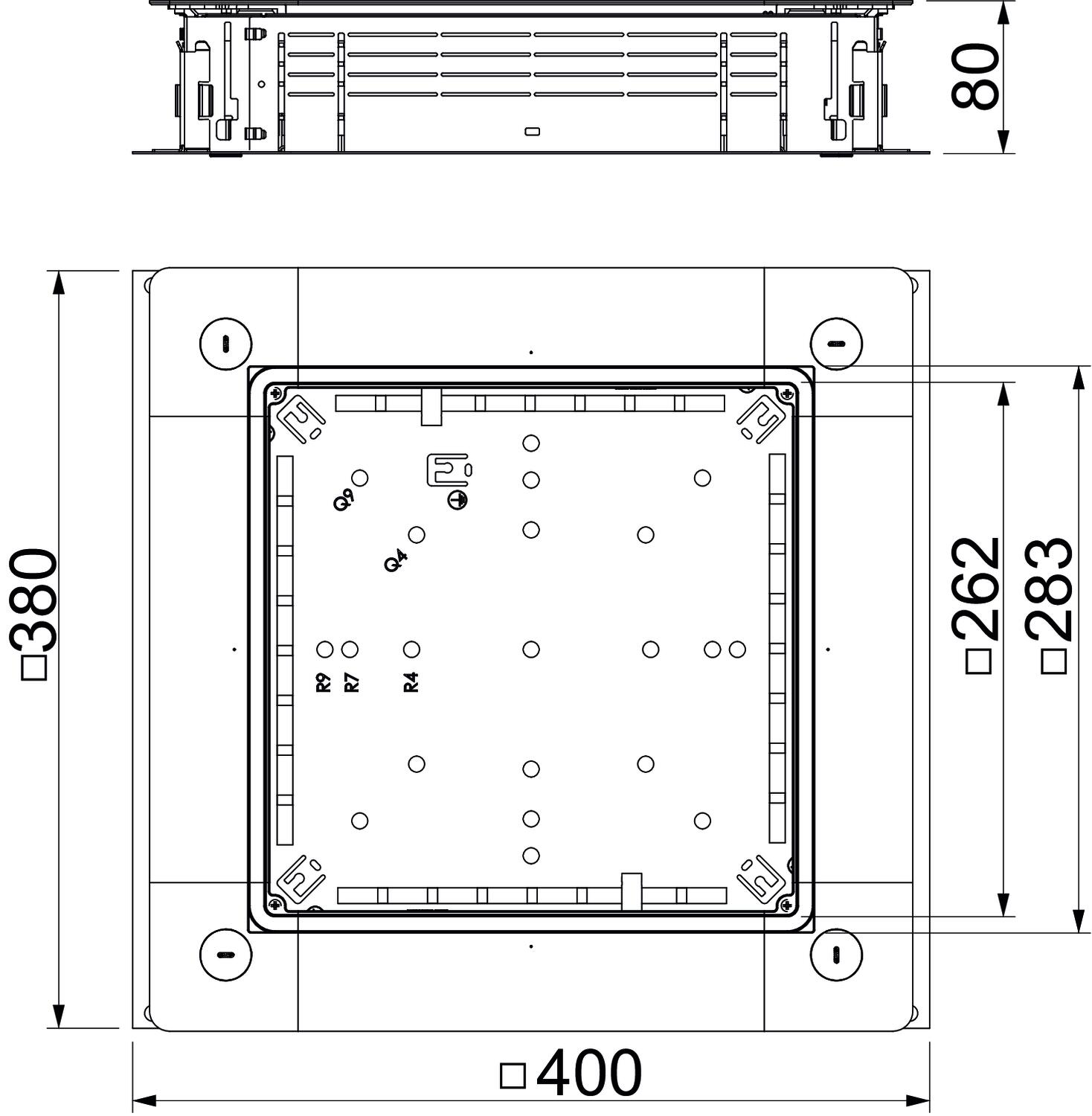

Dimensions
| Length | 380 mm |
|---|---|
| Width | 400 mm |
| Height | 80 mm |
| Dimension A | 380 mm |
| Dimension B | 400 mm |
| Dimension b | 283 mm |
| Dimension a | 262 mm |
Technical data
| Screed height, max. | 160 mm |
|---|---|
| Screed height, min. | 80 mm |
| Cover version | Universal |
| Height-adjustment range, max. | 160 mm |
| Height-adjustment range, min. | 80 mm |
| Minimum screed height | 80 |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, max. | 250 mm |
| Trunking width, min. | 190 mm |
| Installation opening for on-floor tank | no |
| Number of installable devices | 1 |
| Seal installation option | yes |
| Decouplable | yes |
| Floor plate | yes |
| Suitable for underfloor ducts | yes |
| Installation opening for flush-mount unit | Square |
| For pipe connection | no |
| Nominal size | 250 mm |
| Protection rating (IP) when used | IP20 |
| Trunking height, max. | 58 mm |
| Duct height, min. | 28 mm |
| Dimension | 400x380x80 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 21,9284 kg CO2e / 1 Piece |
