UZD250-4 R junction and branch box
Trench Part No. UZD250-4 R
|OBO Item No. 7410026
|EAN 4012197375416
Trench Part No.
UZD250-4 R
OBO Item No.
7410026
Screed height, max.
160 mm
Screed height, min.
80 mm
Cover version
Universal
Installation opening for flush-mount unit
Square
Nominal size
250 mm
Smallest selling unit: 1 piece
1piece
piece
Description

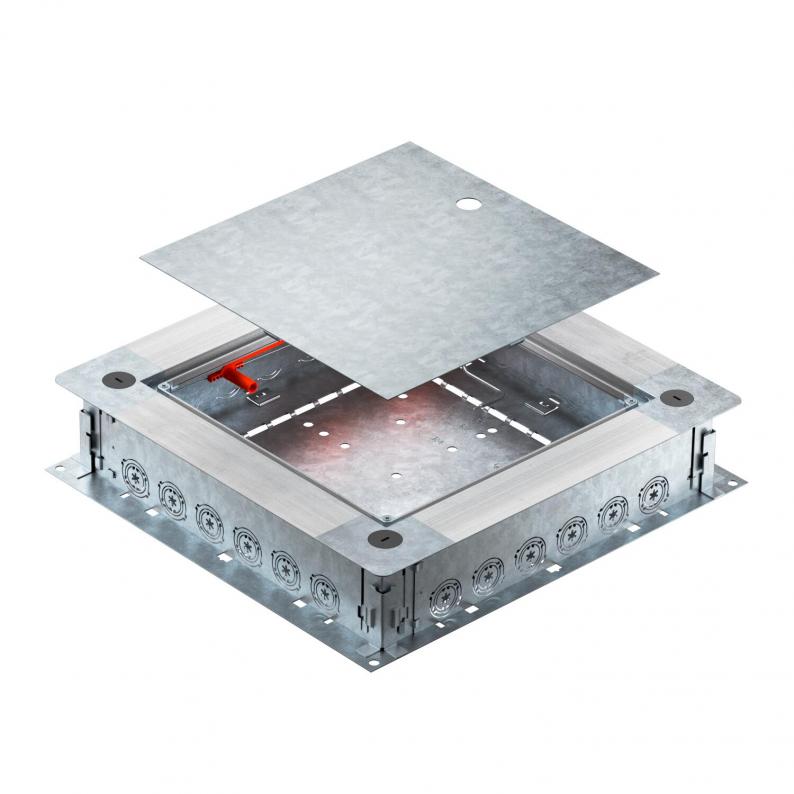

Junction and branch box UZD250-4 R with side walls made of sheet steel. For mounting of installation units in the mounting lid (to be ordered separately). Can be infinitely adjusted to a nominal screed height of 80–160 mm using the quick height-adjustment unit. The screed can be worked up to be flush with the screed edge. With an acoustic decoupling option after screed laying, and with system accessories, it can be used for heavy-duty applications. Insertion of cables through the pipe entries. Pipe entry per side suitable for 6 installation pipes each of the diameters M20, M25 and M32
Technical data
Dimensions

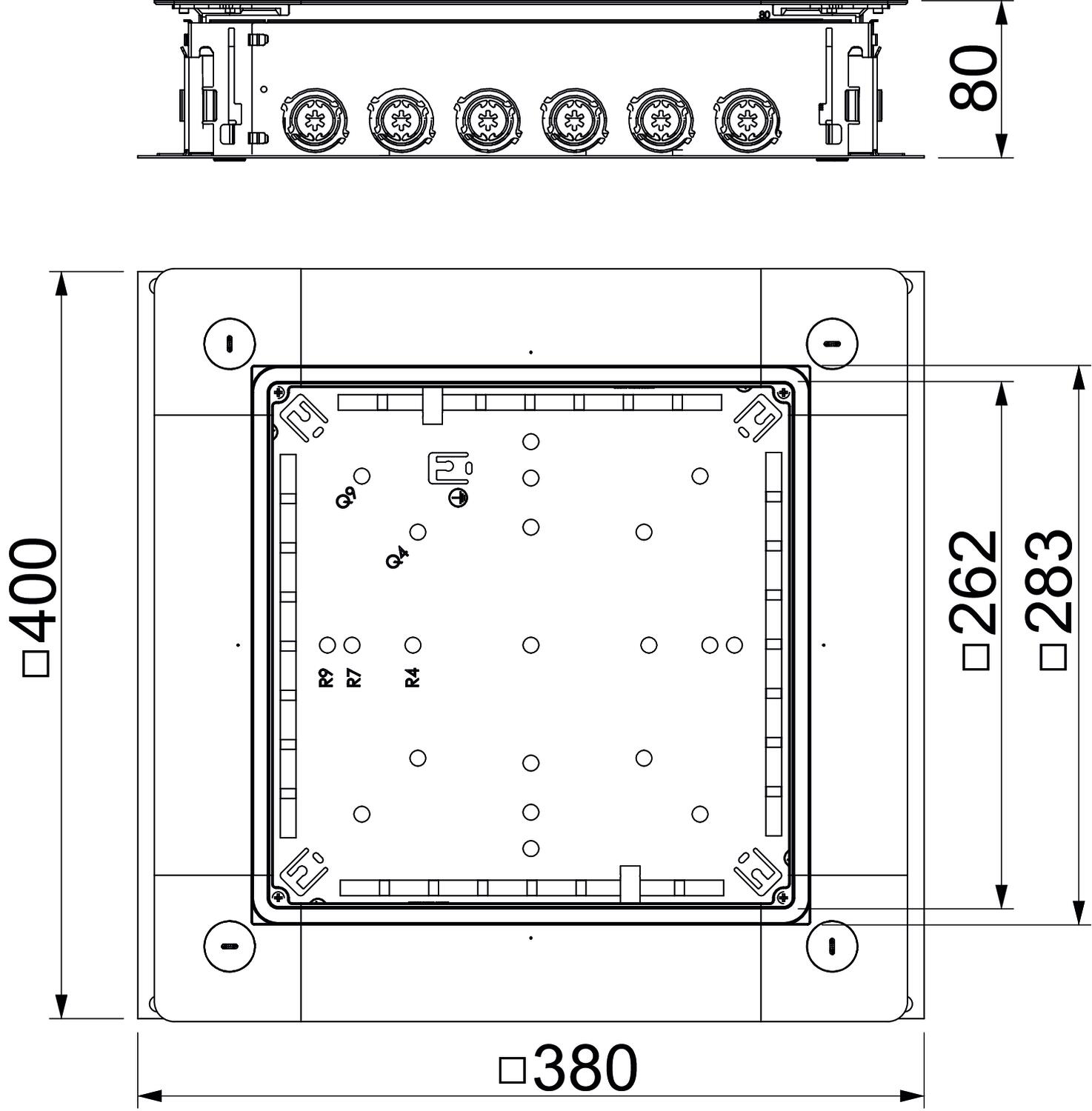

| Length | 380 mm |
|---|---|
| Width | 400 mm |
| Height | 80 mm |
| Dimension A | 380 mm |
| Dimension B | 400 mm |
| Dimension b | 283 mm |
| Dimension a | 262 mm |
Technical data
| Screed height, max. | 160 mm |
|---|---|
| Screed height, min. | 80 mm |
| Cover version | Universal |
| Height-adjustment range, max. | 160 mm |
| Height-adjustment range, min. | 80 mm |
| Minimum screed height | 80 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Number of installable devices | 1 |
| Seal installation option | yes |
| Decouplable | yes |
| Floor plate | yes |
| Suitable for underfloor ducts | no |
| Installation opening for flush-mount unit | Square |
| For pipe connection | yes |
| Nominal size | 250 mm |
| Protection rating (IP) when used | IP20 |
| Dimension | 400x380x80 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
22,1564 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 22,1564 kg CO2e / 1 Piece |
|---|
