Vertical bend, falling, duct height 120 mm, FS
Trench Part No. PLM BF 1220 FS
|OBO Item No. 7218110
|EAN 4012197332150
Trench Part No.
PLM BF 1220 FS
OBO Item No.
7218110
Dimension B
200 mm
Dimension H
120 mm
Smallest selling unit: 1 piece
1piece
piece
Description

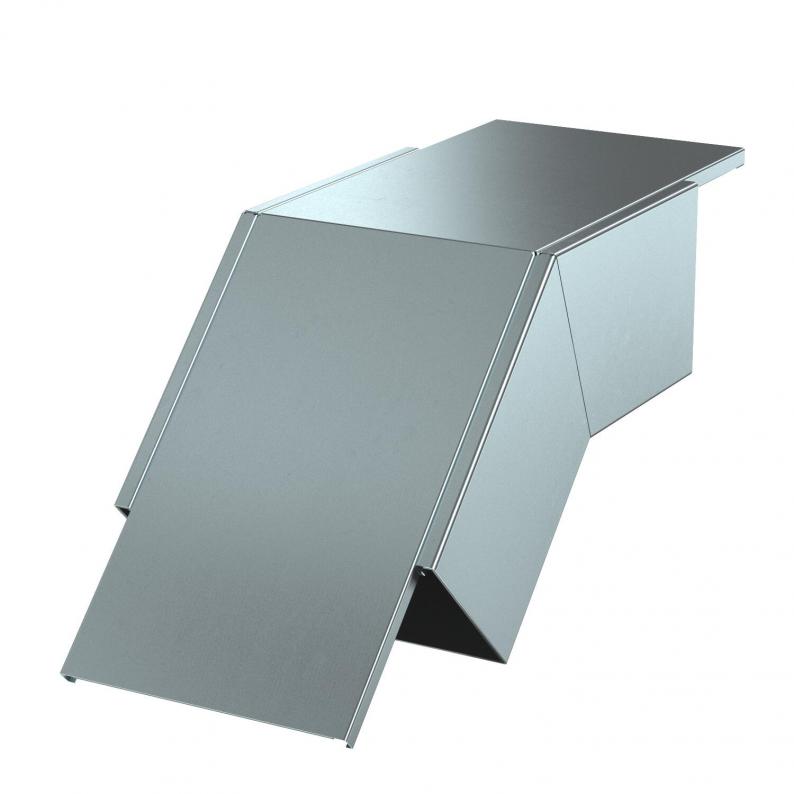

45° vertical bend, falling version, with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
Technical data
Technical data
| Usable cross-section | 18500 mm² |
|---|---|
| Angle of the bend | 45 ° |
| Cover fastening | Miscellaneous |
| With perforation | yes |
| Partitions possible | no |
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Classification EI − installation duct | 90 |
| Dimension | 498x100x215 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |

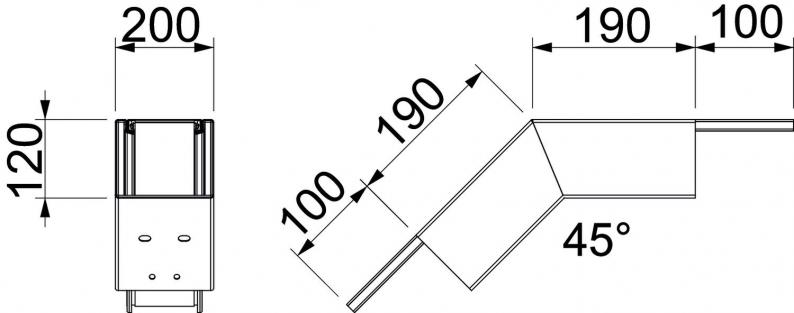

Dimensions
| Dimension A | 190 mm |
|---|---|
| Dimension B | 200 mm |
| Dimension H | 120 mm |
Environmental Data
8,02 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 8,02 kg CO2e / 1 Piece |
|---|
