Vertical bend, falling, duct height 80 mm, FS
Trench Part No. PLM BF 0810 FS
|OBO Item No. 7218106
|EAN 4012197332136
Trench Part No.
PLM BF 0810 FS
OBO Item No.
7218106
Dimension B
100 mm
Dimension H
80 mm
Smallest selling unit: 1 piece
1piece
piece
Description

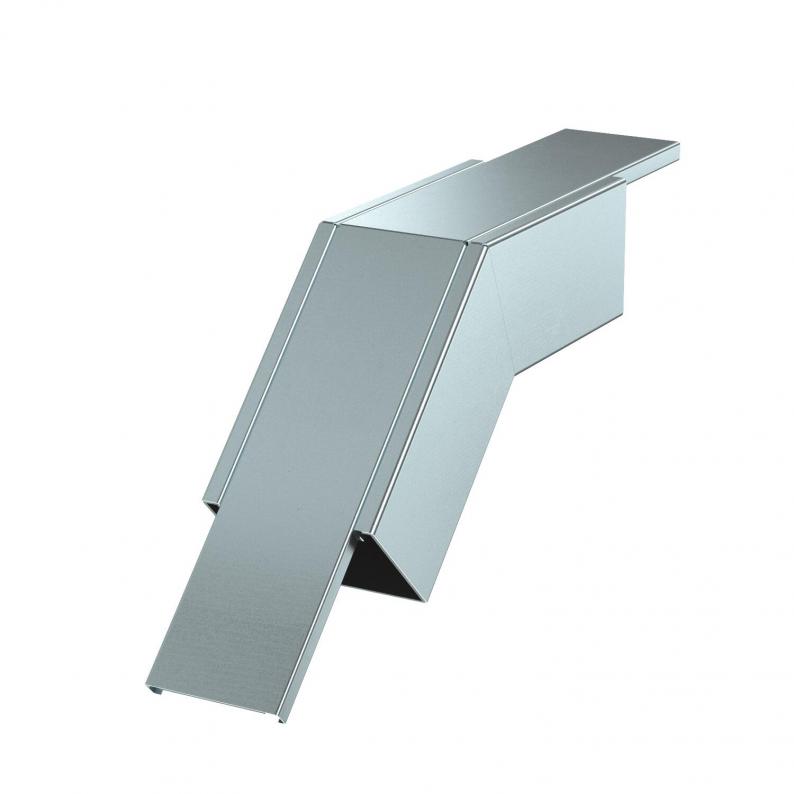

45° vertical bend, falling version, with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
Technical data
Technical data
| Usable cross-section | 5180 mm² |
|---|---|
| Angle of the bend | 45 ° |
| Cover fastening | Miscellaneous |
| With perforation | yes |
| Partitions possible | no |
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Classification EI − installation duct | 90 |
| Dimension | 455x100x197 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |

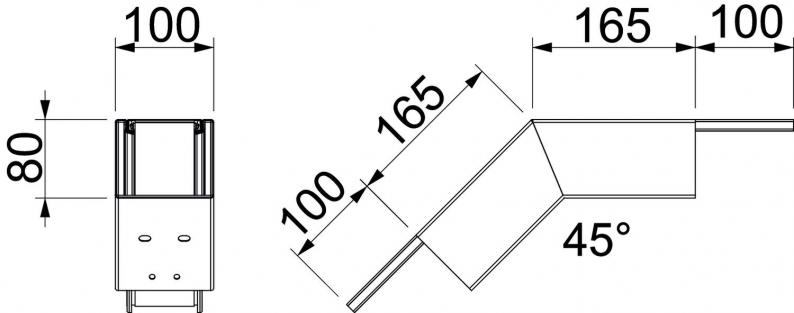

Dimensions
| Dimension A | 165 mm |
|---|---|
| Dimension B | 100 mm |
| Dimension H | 80 mm |
Environmental Data
4,6228 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 4,6228 kg CO2e / 1 Piece |
|---|
