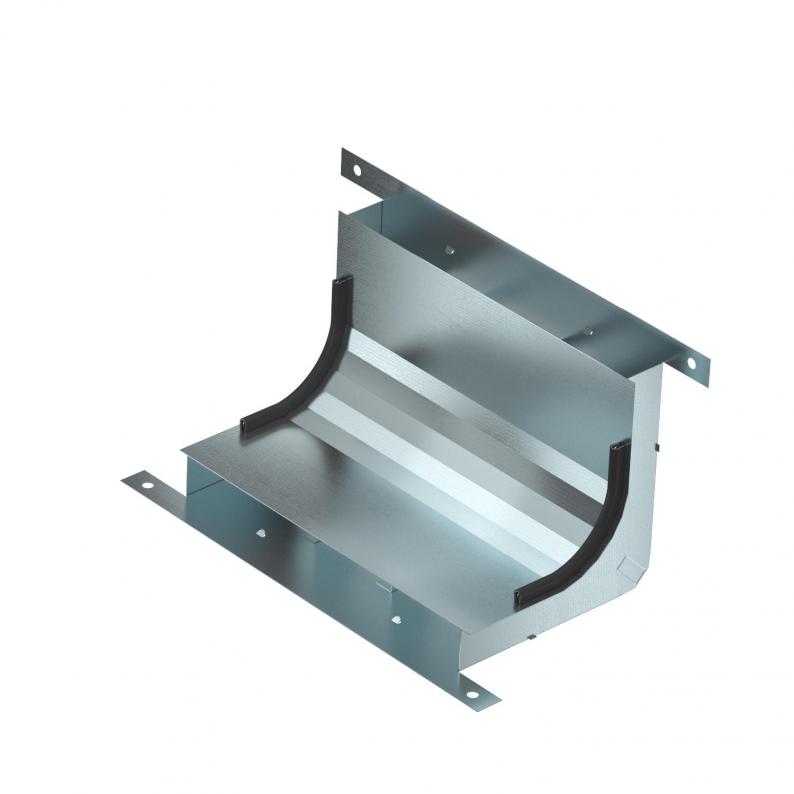

Vertical bend, three-compartment, height 28 mm
Trench Part No. KV3 25028-2
|OBO Item No. 7400645
|EAN 4012197349622
Trench Part No.
KV3 25028-2
OBO Item No.
7400645
Smallest selling unit: 1 piece
1piece
piece
Description
Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies).
Technical data
Dimensions
| Length | 178 mm |
|---|---|
| Width | 250 mm |
| Height | 28 mm |
| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 28 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of fixed partitions | 2 |
| Cross-section, draw a | 2166 mm² |
| Cross-section, draw b | 1798 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 28 mm |
| Dimension | 330x177,7x177,7 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,7358 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (4)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Width
Number of compartments
OBO Item No.
KV3 25028-2
250
3
7400645
KV3 25028-2
OBO Item No.
7400645
Width
250
Number of compartments
3
