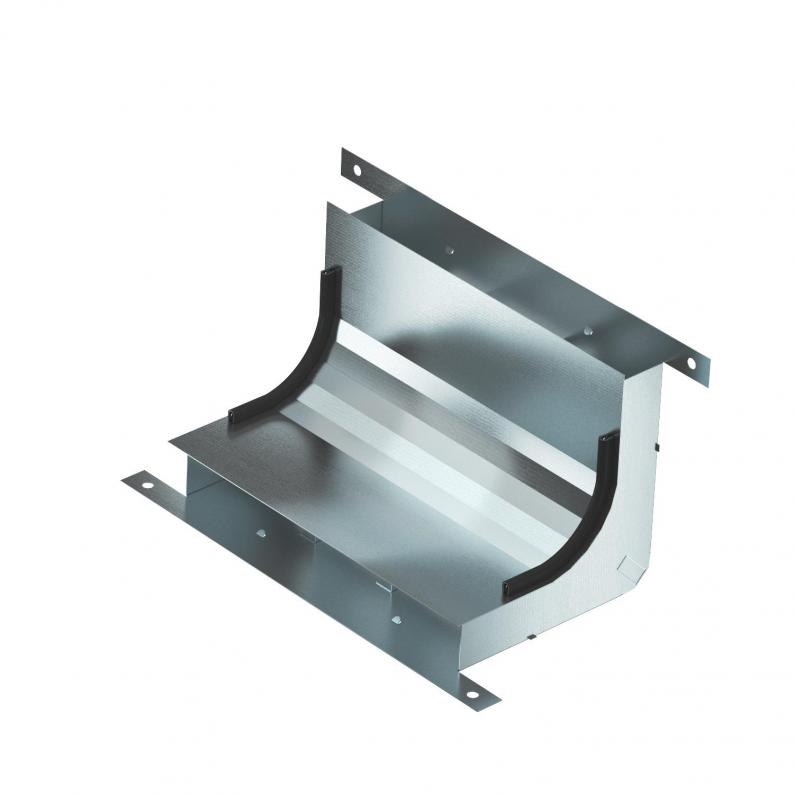

Vertical bend, three-compartment, height 38 mm
Trench Part No. KV3 25038-2
|OBO Item No. 7400650
|EAN 4012197349653
Trench Part No.
OBO Item No.
Width
Number of compartments
Smallest selling unit: 1 piece
1piece
piece
Description
Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies).
Technical data

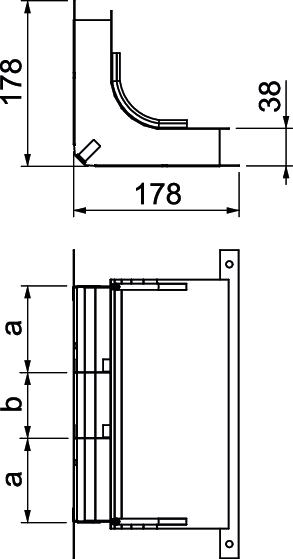

Dimensions
| Length | 178 mm |
|---|---|
| Width | 250 mm |
| Height | 38 mm |
| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 38 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of fixed partitions | 2 |
| Cross-section, draw a | 2982 mm² |
| Cross-section, draw b | 2496 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 38 mm |
| Dimension | 330x177,7x177,7 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,7349 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (5)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Width
Number of compartments
OBO Item No.
KV3 25038-2
250
3
7400650
KV3 35038-2
350
3
7400662
Width
KV3 25038-2
OBO Item No.
7400650
Width
250
Number of compartments
3
KV3 35038-2
OBO Item No.
7400662
Width
350
Number of compartments
3
