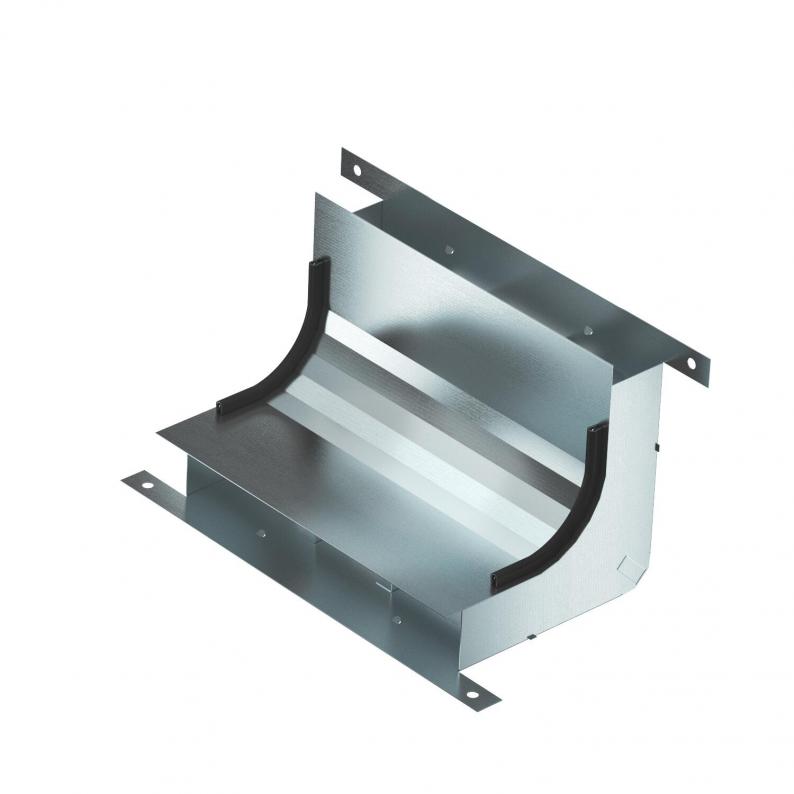

Vertical bend, three-compartment, height 48 mm
Trench Part No. KV3 25048-2
|OBO Item No. 7400653
|EAN 4012197349684
Trench Part No.
OBO Item No.
Width
Number of compartments
Smallest selling unit: 1 piece
1piece
piece
Description
Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies).
Technical data

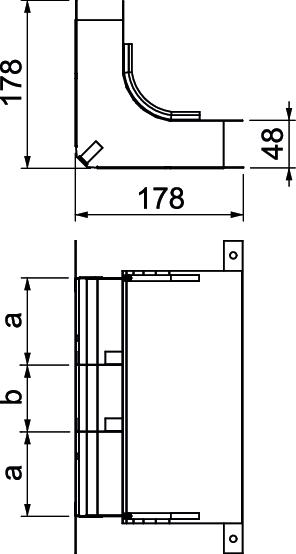

Dimensions
| Length | 178 mm |
|---|---|
| Width | 250 mm |
| Height | 48 mm |
| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 48 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of fixed partitions | 2 |
| Cross-section, draw a | 3854 mm² |
| Cross-section, draw b | 3184 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 48 mm |
| Dimension | 330x177,7x177,7 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
3,8487 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,8487 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (5)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Width
Number of compartments
OBO Item No.
KV3 25048-2
250
3
7400653
KV3 35048-2
350
3
7400665
Width
KV3 25048-2
OBO Item No.
7400653
Width
250
Number of compartments
3
KV3 35048-2
OBO Item No.
7400665
Width
350
Number of compartments
3
