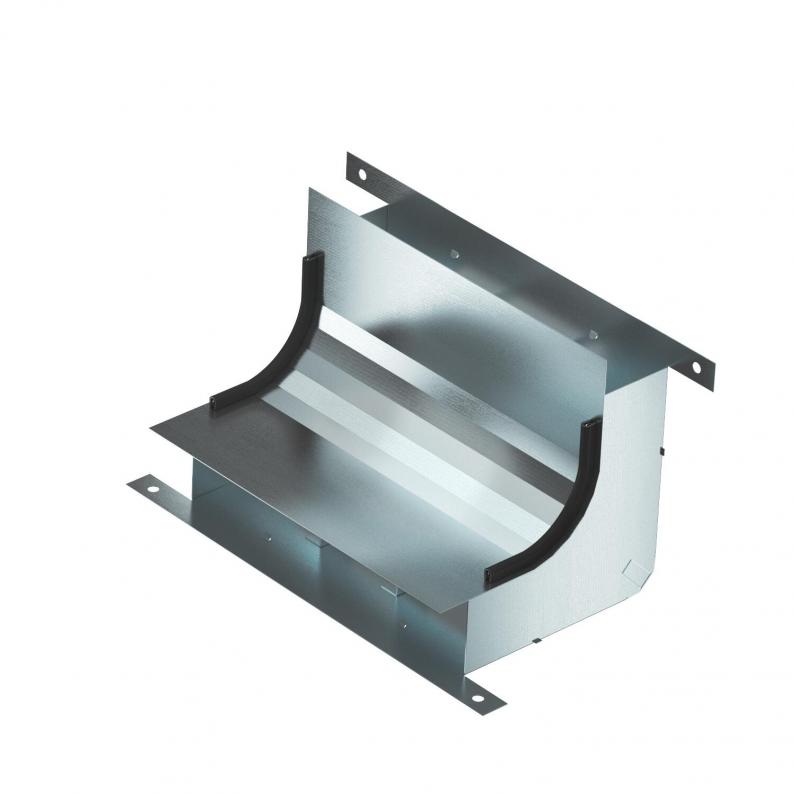

Vertical bend, three-compartment, height 58 mm
Trench Part No. KV3 25058-2
|OBO Item No. 7400655
|EAN 4012197350673
Trench Part No.
OBO Item No.
Width
Number of compartments
Smallest selling unit: 1 piece
1piece
piece
Description
Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies). Only compatible with the UZD250-4/350-4
Technical data

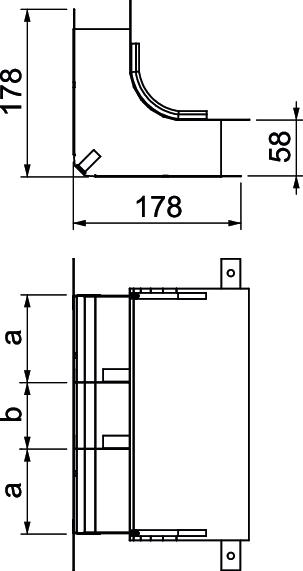

Dimensions
| Length | 178 mm |
|---|---|
| Width | 250 mm |
| Height | 58 mm |
| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 58 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of fixed partitions | 2 |
| Cross-section, draw a | 4670 mm² |
| Cross-section, draw b | 3884 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 58 mm |
| Dimension | 330x177,7x177,7 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
3,9797 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,9797 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (4)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Width
Number of compartments
OBO Item No.
KV3 25058-2
250
3
7400655
KV3 35058-2
350
3
7400667
Width
KV3 25058-2
OBO Item No.
7400655
Width
250
Number of compartments
3
KV3 35058-2
OBO Item No.
7400667
Width
350
Number of compartments
3
