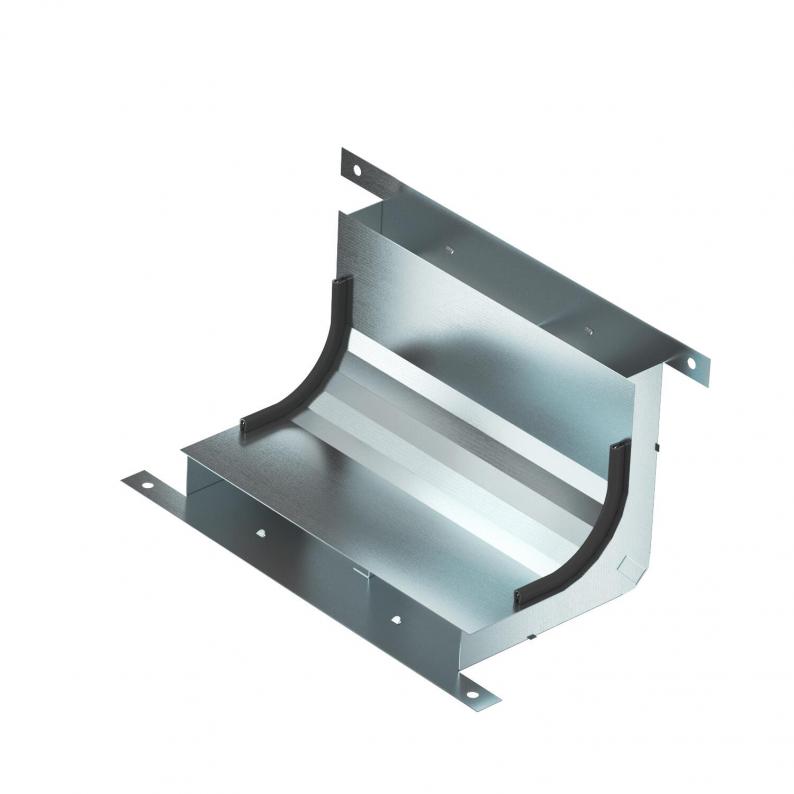

Vertical bend, two-compartment, height 28 mm
Trench Part No. KV2 19028-2
|OBO Item No. 7400621
|EAN 4012197349417
Trench Part No.
OBO Item No.
Width
Number of compartments
Smallest selling unit: 1 piece
1piece
piece
Description
Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies).
Technical data
Dimensions
| Length | 178 mm |
|---|---|
| Width | 190 mm |
| Height | 28 mm |
| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 28 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of fixed partitions | 1 |
| Cross-section, draw a | 1923 mm² |
| Cross-section, draw b | 2706 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Duct height, min. | 28 mm |
| Dimension | 270x177,7x177,7 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
2,9866 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,9866 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (4)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Width
Number of compartments
OBO Item No.
KV2 19028-2
190
2
7400621
KV2 25028-2
250
2
7400633
Width
KV2 19028-2
OBO Item No.
7400621
Width
190
Number of compartments
2
KV2 25028-2
OBO Item No.
7400633
Width
250
Number of compartments
2
