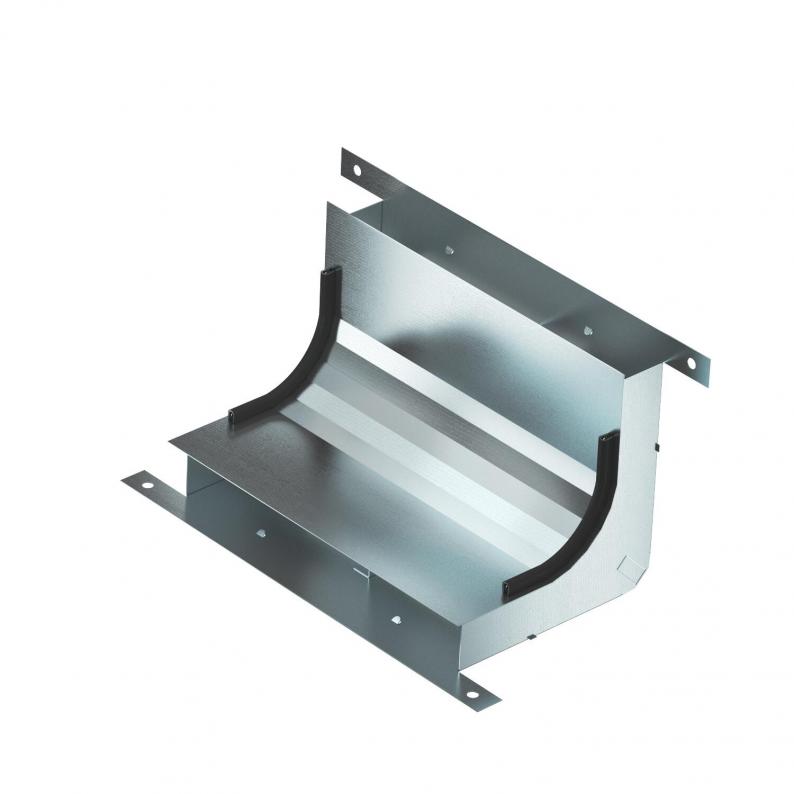

Vertical bend, two-compartment, height 38 mm
Trench Part No. KV2 25038-2
|OBO Item No. 7400637
|EAN 4012197349530
Trench Part No.
OBO Item No.
Width
Number of compartments
Smallest selling unit: 1 piece
1piece
piece
Description
Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies).
Technical data

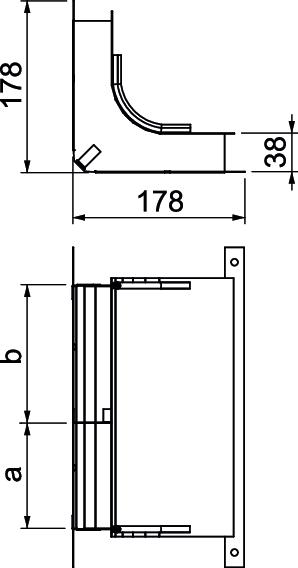

Dimensions
| Length | 178 mm |
|---|---|
| Width | 250 mm |
| Height | 38 mm |
| Dimension b | 140 mm |
| Dimension a | 110 mm |
| Dimension h | 38 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of fixed partitions | 1 |
| Cross-section, draw a | 3717 mm² |
| Cross-section, draw b | 4807 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 38 mm |
| Dimension | 330x177,7x177,7 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
3,4559 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,4559 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (5)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Width
Number of compartments
OBO Item No.
KV2 19038-2
190
2
7400623
KV2 25038-2
250
2
7400637
Width
KV2 19038-2
OBO Item No.
7400623
Width
190
Number of compartments
2
KV2 25038-2
OBO Item No.
7400637
Width
250
Number of compartments
2
