Wall and support bracket MWAG 12

Wall and support bracket MWAG 12

Trench Part No. MWAG 12 31 FS
|
OBO Item No. 6424616
|
EAN 4012196325337
Show all variants
Trench Part No.
OBO Item No.
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

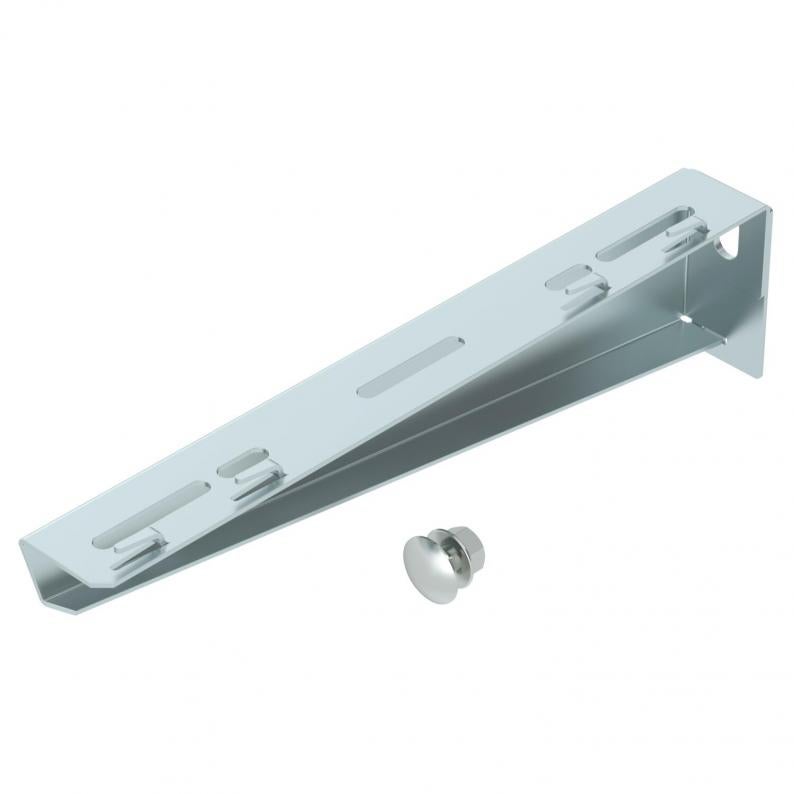

Light-duty wall and support bracket with edged design for screwless mesh cable tray fastening.

Including truss-head bolt M10 x 25 for fastening to

U supports.

Technical data

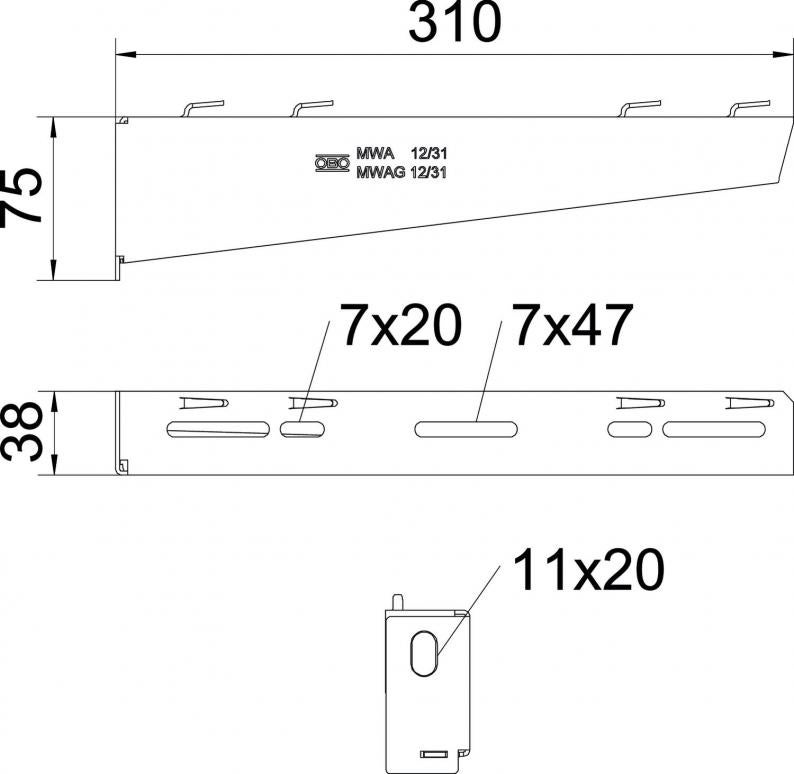

Dimensions

Length385 mm
Width310 mm
Height75 mm
Dimension A385 mm
Dimension B310 mm
Dimension H75 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.300
for width max.300 mm
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
Version forWall and support bracket
ROHS-conformantyes
F in kN12 kN
DimensionB310mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc
Product seriesMWA Series

Environmental Data

1,3812 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,3812 kg CO2e / 1 Piece
CO₂ Footprint (GWP)13812 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Declarations (4)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
MWAG 12 11 FS
OBO Item No.
6424600
Width
110
F in kN
12
Colour
zinc
MWAG 12 21 FS
OBO Item No.
6424608
Width
210
F in kN
12
Colour
zinc
MWAG 12 31 FS
OBO Item No.
6424616
Width
310
F in kN
12
Colour
zinc
MWAG 12 41 FS
OBO Item No.
6424624
Width
410
F in kN
12
Colour
zinc
