Wall and support bracket MWAG 12
Trench Part No. MWAG 12 41 FS
|OBO Item No. 6424624
|EAN 4012196325634
Trench Part No.
OBO Item No.
Width
F in kN
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

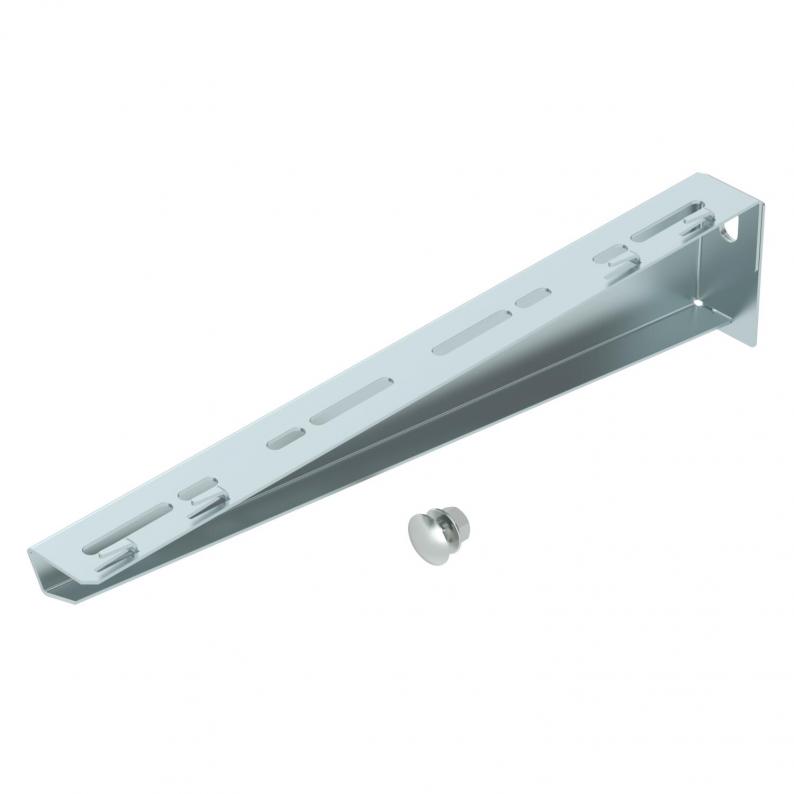

Light-duty wall and support bracket with edged design for screwless mesh cable tray fastening.
Including truss-head bolt M10 x 25 for fastening to
U supports.
Technical data

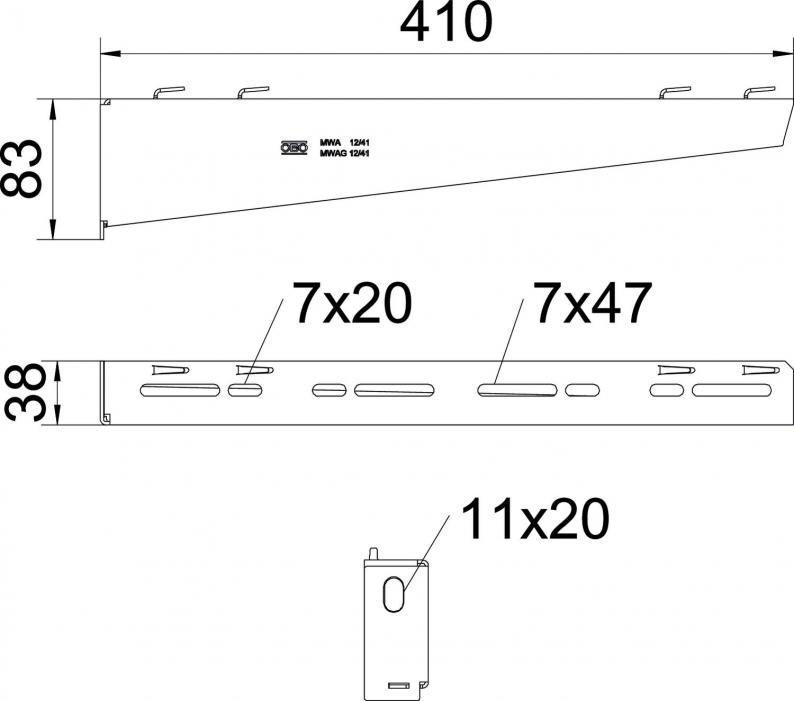

Dimensions
| Length | 38 mm |
|---|---|
| Width | 410 mm |
| Height | 83 mm |
| Dimension A | 38 mm |
| Dimension B | 410 mm |
| Dimension H | 83 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| for width max. | 400 mm |
| for width min. | 400 |
| Angle range, max. | 90 mm |
| Angle range, min. | 90 mm |
| Hole diameter | 11 mm |
| Version for | Wall and support bracket |
| F in kN | 12 kN |
| Dimension | B410mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0135 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Trench Part No.
Width
F in kN
Colour
OBO Item No.
MWAG 12 11 FS
110
12
zinc
6424600
MWAG 12 21 FS
210
12
zinc
6424608
MWAG 12 31 FS
310
12
zinc
6424616
MWAG 12 41 FS
410
12
zinc
6424624
Width
MWAG 12 11 FS
OBO Item No.
6424600
Width
110
F in kN
12
Colour
zinc
MWAG 12 21 FS
OBO Item No.
6424608
Width
210
F in kN
12
Colour
zinc
MWAG 12 31 FS
OBO Item No.
6424616
Width
310
F in kN
12
Colour
zinc
MWAG 12 41 FS
OBO Item No.
6424624
Width
410
F in kN
12
Colour
zinc
