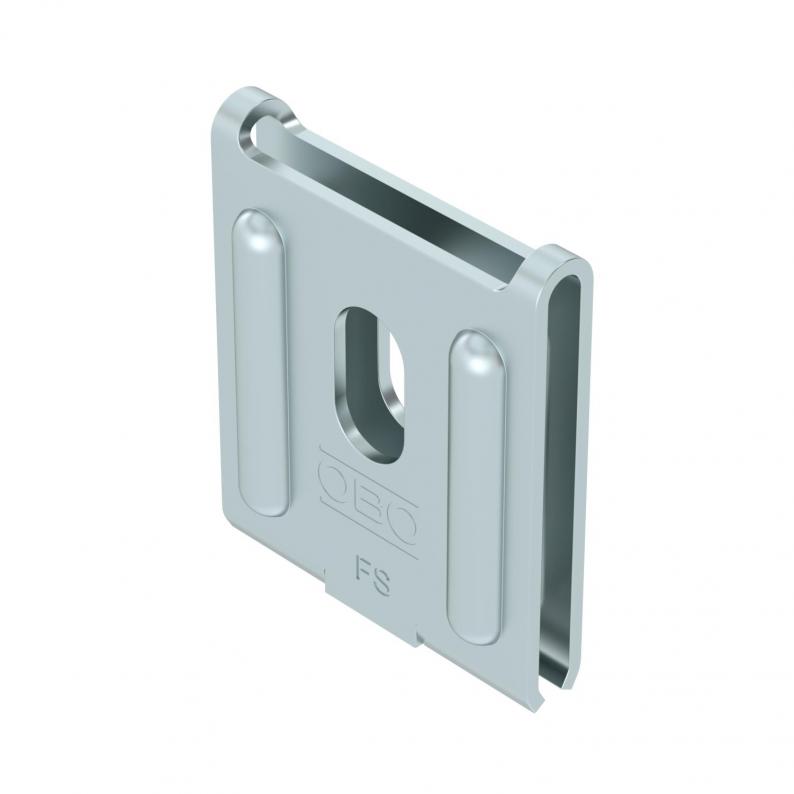

Wall clamp/central hanger FS
Trench Part No. K 12 1818 FS | OBO Item No. 6437109 | EAN 4012196208876
Trench Part No.
K 12 1818 FS
OBO Item No.
6437109
Smallest selling unit: 25 piece
25piece
Description
Wall fixing for direct fixing of mesh cable trays of side height 55 mm on the wall.
As wall fastening up to max. mesh cable tray width 200 mm.
As centre suspension up to max. mesh cable tray width 200 mm.
As a pendulum suspension from a width of 300 mm.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|

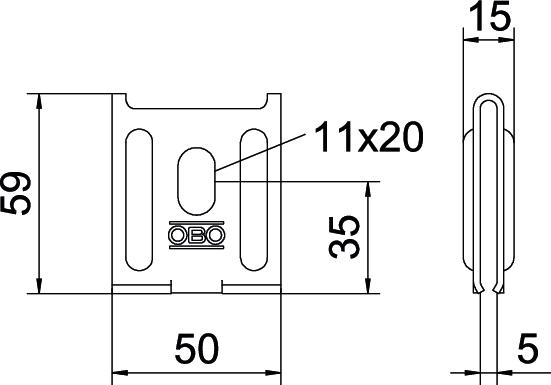

| Dimension | 50x59 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,283 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)
