Wall connection collar, 3- and 4-sided, duct height 120 mm, FS
Trench Part No. PLM WC 1220 FS
|OBO Item No. 7218130
|EAN 4012197310608
Trench Part No.
PLM WC 1220 FS
OBO Item No.
7218130
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

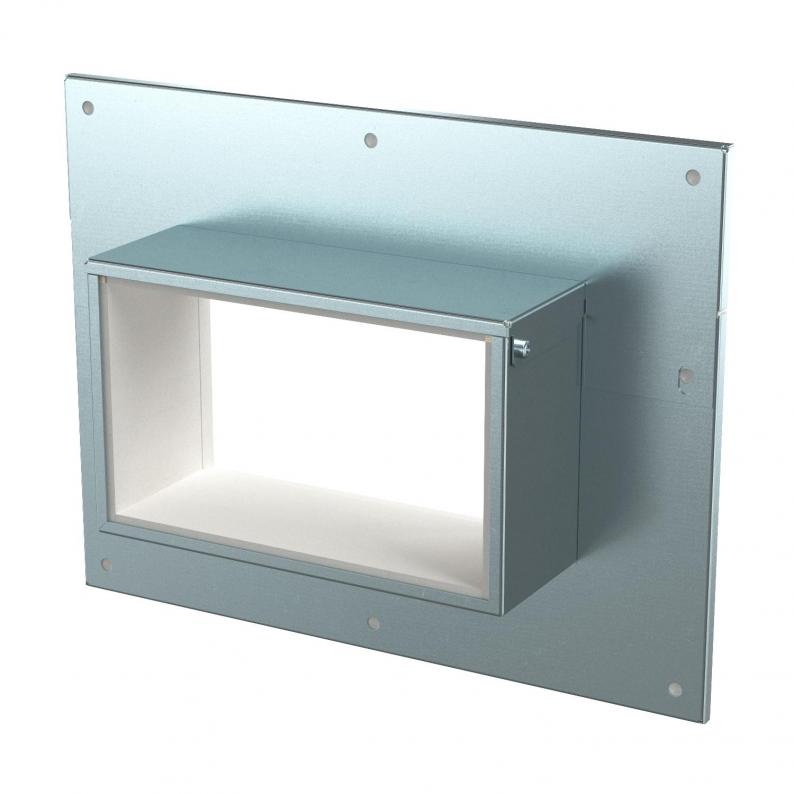

Wall connection collar, 4-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations. Can also be used as 3-sided wall connection collar for direct wall or ceiling mounting of the duct.
Technical data

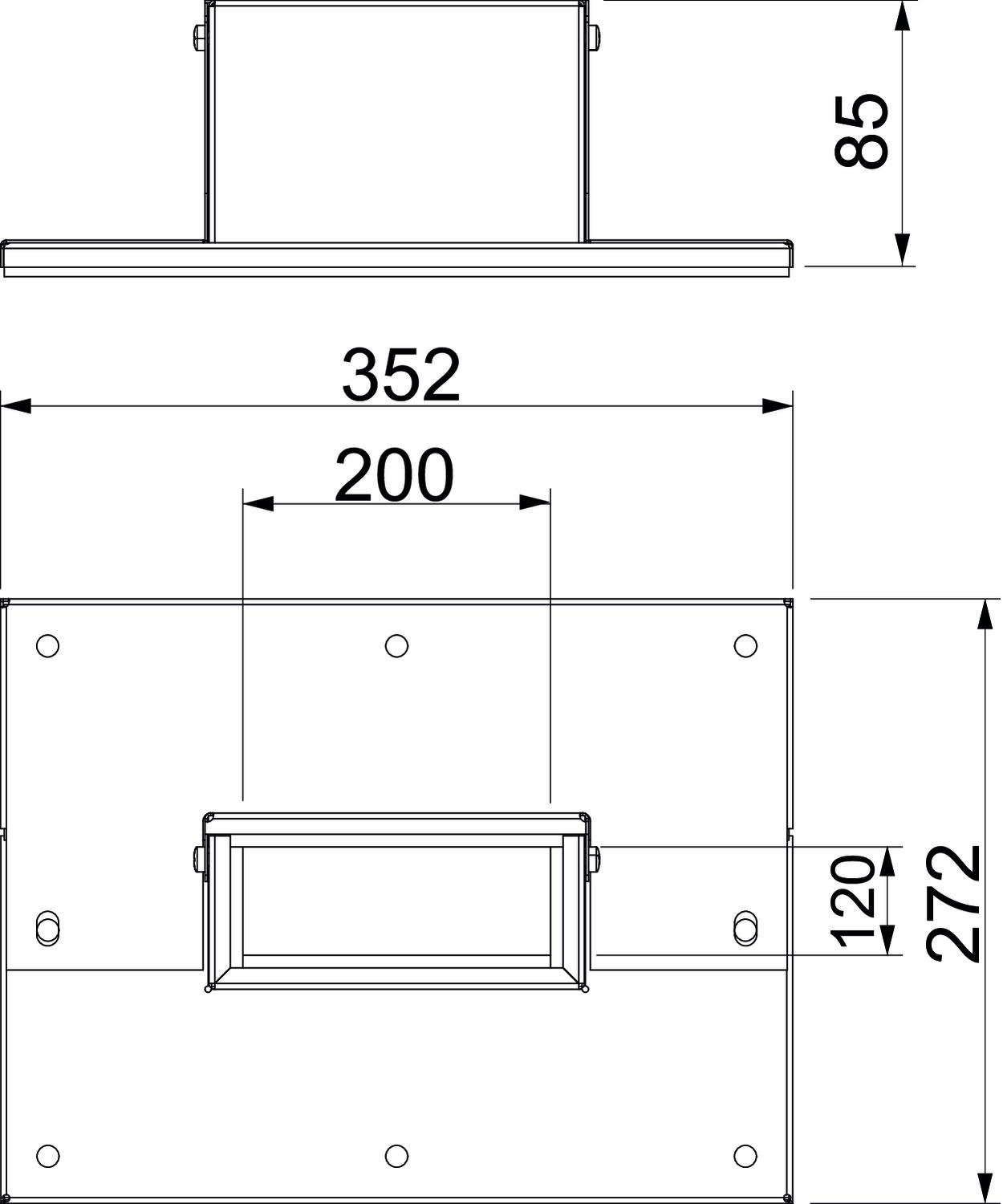

Dimensions
| Dimension d | 120 mm |
|---|---|
| Dimension B | 352 mm |
| Dimension b | 200 mm |
| Dimension D | 272 mm |
Technical data
| Type of accessory | Wall connection collar |
|---|---|
| Dimension | 85x253x273 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
Environmental Data
5,543 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,543 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
