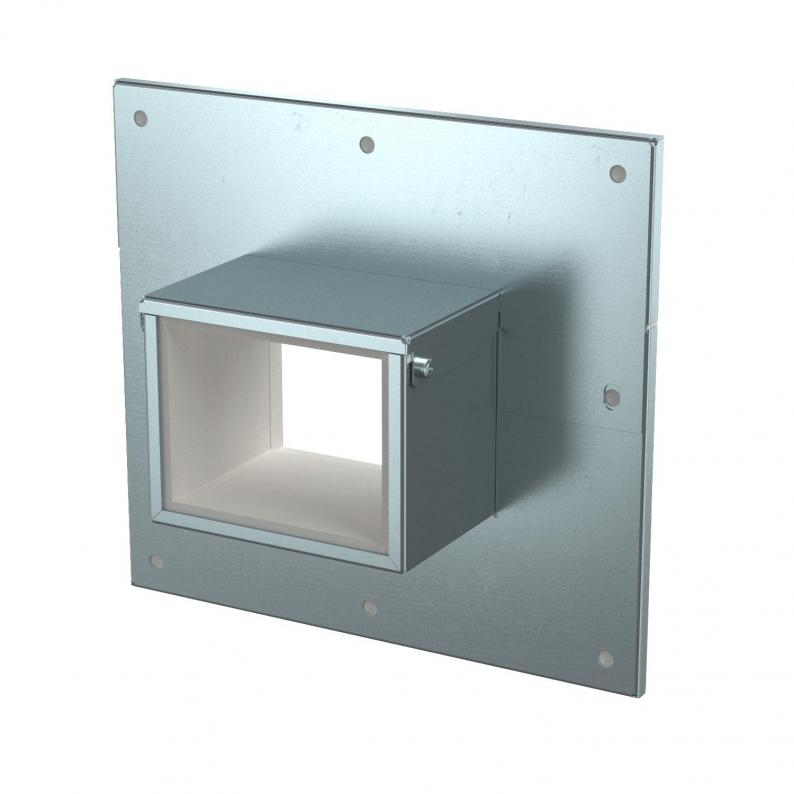

Wall connection collar, 3- and 4-sided, duct height 80 mm, FS
Trench Part No. PLM WC 0810 FS
|OBO Item No. 7218126
|EAN 4012197310585
Trench Part No.
PLM WC 0810 FS
OBO Item No.
7218126
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Wall connection collar, 4-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations. Can also be used as 3-sided wall connection collar for direct wall or ceiling mounting of the duct.
Technical data
Dimensions
| Dimension d | 80 mm |
|---|---|
| Dimension B | 252 mm |
| Dimension b | 100 mm |
| Dimension D | 232 mm |
Technical data
| Type of accessory | Wall connection collar |
|---|---|
| ROHS-conformant | yes |
| Dimension | 85x253x233 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
3,6426 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,6426 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 36426 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
