Wiring trunking, type LK4 40025
Trench Part No. LK4 40025 | OBO Item No. 6178010 | EAN 4012196000418
Trench Part No.
LK4 40025
OBO Item No.
6178010
Fastening type
Base perforation
Colour
Stone grey; RAL 7030
Smallest selling unit: 2 m
2m
Description

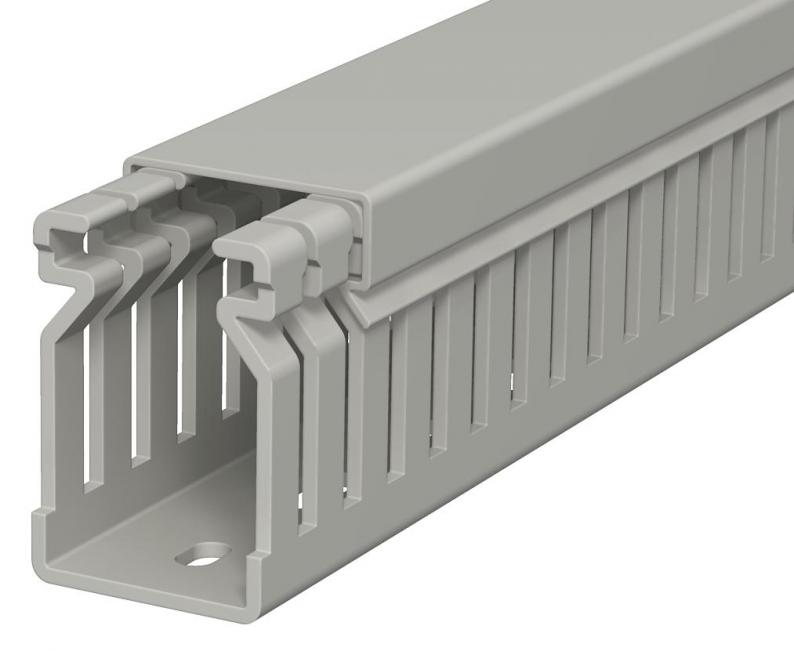

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
Technical data

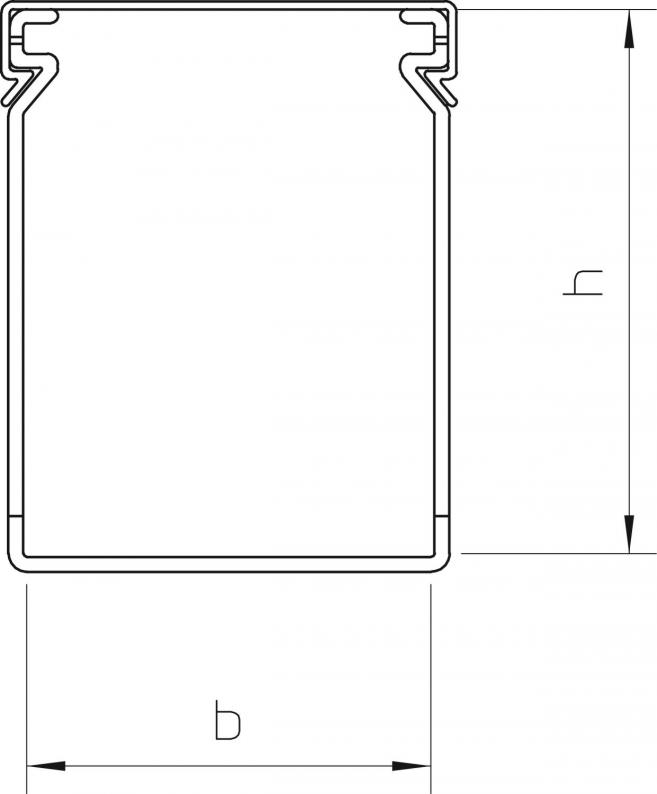

Dimensions
| Length | 2.000 mm |
|---|---|
| Width | 25 mm |
| Height | 40 mm |
Technical data
| Usable cross-section | 867 cm² |
|---|---|
| Diameter | 0 mm |
| Halogen-free | no |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Creepage current-resistant | yes |
| Flexible | no |
| With cover | yes |
| Slot spacing | 10 mm |
| Slot width | 4 mm |
| Fastening type | Base perforation |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 40x25x2000 |
| Material | Polyvinylchloride |
| Colour | Stone grey; RAL 7030 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,9072 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Trench Part No.
Length
Width
Height
Fastening type
Colour
OBO Item No.
LK4 40025
2.000
25
40
Base perforation
Stone grey; RAL 7030
6178010
LK4 40025
OBO Item No.
6178010
Length
2.000
Width
25
Height
40
Fastening type
Base perforation
Colour
Stone grey; RAL 7030
