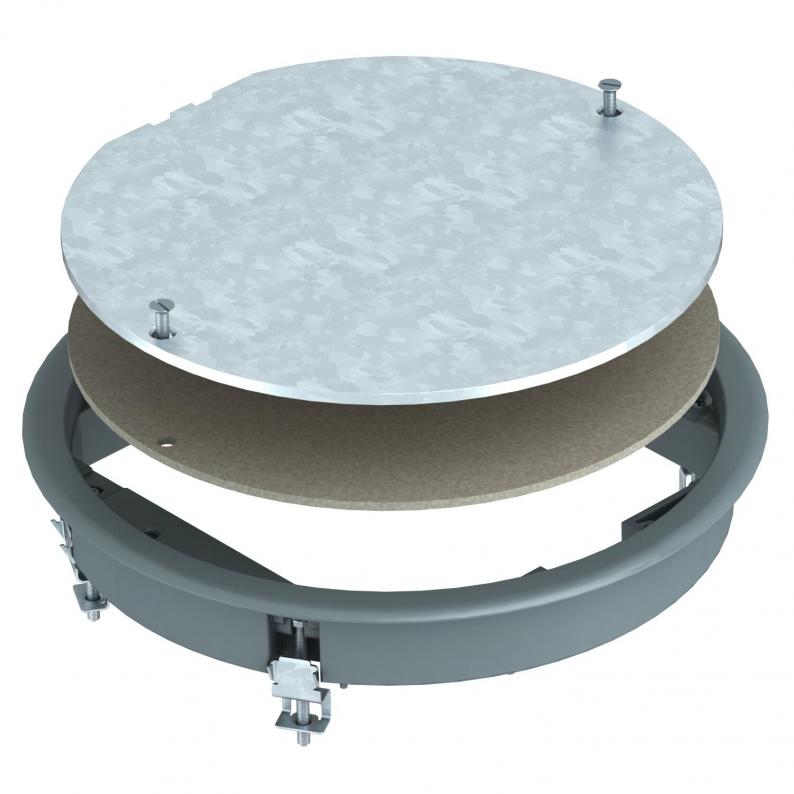

ZESR4 inspection cover

ZESR4 inspection cover

Trench Part No. ZESR4 U 7011
|
OBO Item No. 7406772
|
EAN 4012195109549
Show all variants
Trench Part No.
OBO Item No.
Floor covering thickness
Colour

Smallest selling unit: 1 piece

piece

Description

Draw box insert for blanking locking of a square round mounting opening of nominal size R4 in trunking systems and system floors for indoor use.


Technical data

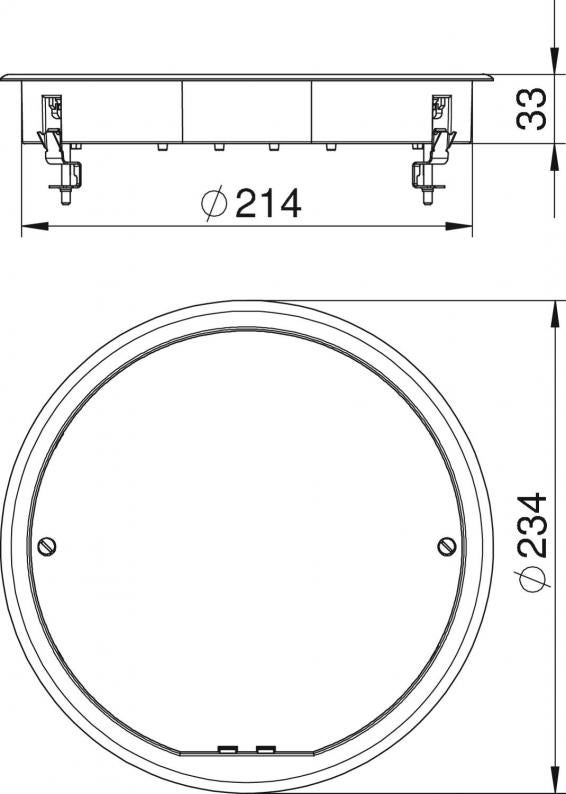

Dimensions

Length234 mm
Width234 mm
Height36 mm

Technical data

Floor height, min.60 mm
Floor covering thickness5 mm
Suitable for screed-covered underfloor ductsyes
Number of installable devices0
Installation diameter214
Suitable for underfloor ductsyes
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Floor careDry
Frame versionCarpet protection frame
Suitable for wet careno
Installation depth60 mm
External diameter234 mm
Nominal size for device installation unitsR4
Vertical load, small areato 3,000 N
Vertical load, large areato 5,000 N
Cover versionRound
Clamping range D, max.32 mm
Clamping range D, min.12 mm
DimensionØ234x33
MaterialPolyamide
ColourIron grey; RAL 7011

Environmental Data

4,9076 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate4,9076 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Colour
ZESR4 U 7011
OBO Item No.
7406772
Floor covering thickness
5
Nominal size for device installation units
R4
Colour
Iron grey; RAL 7011
ZESR4 U 9011
OBO Item No.
7406776
Floor covering thickness
5
Nominal size for device installation units
R4
Colour
Graphite black; RAL 9011
