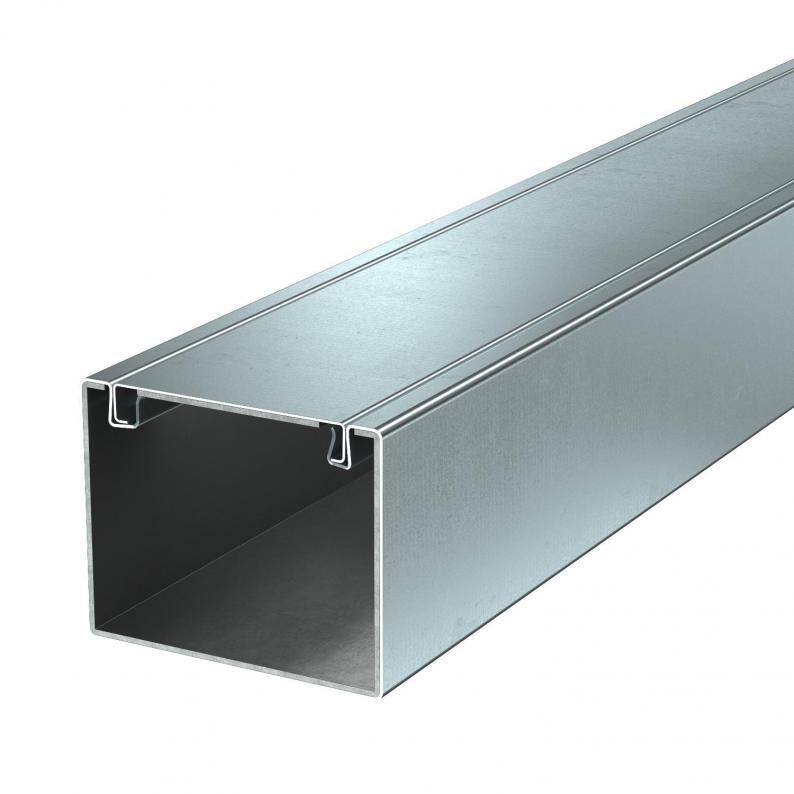

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 80 mm, FS
Trench Part No. PLM D 0810 FS
|OBO Item No. 7218008
|EAN 4012197351229
Trench Part No.
PLM D 0810 FS
OBO Item No.
7218008
Length
2.000 mm
Dimension B
100 mm
Dimension H
80 mm
Colour
zinc
Smallest selling unit: 2 m
2m
m
Description
Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.
Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
Technical data

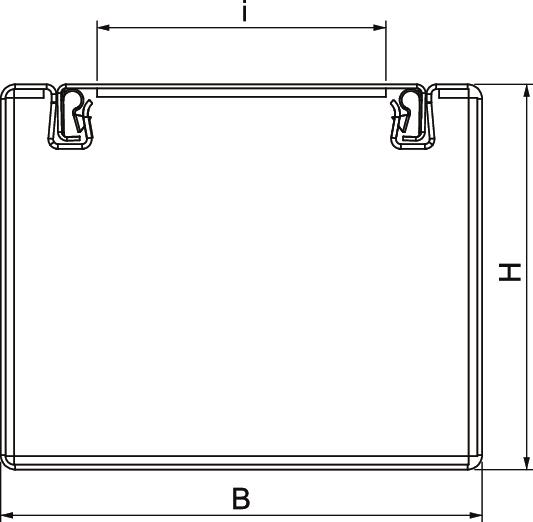

Dimensions
| Length | 2.000 mm |
|---|---|
| Width | 100 mm |
| Height | 80 mm |
| Dimension B | 100 mm |
| Dimension H | 80 mm |
| Internal height | 74 mm |
| Internal width | 94 mm |
Technical data
| Usable cross-section | 5180 mm² |
|---|---|
| With perforation | yes |
| Partitions possible | yes |
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Protection rating IK code | IK10 |
| Cover fastening | Miscellaneous |
| Dimension i | 62 mm |
| Classification EI − installation duct | 90 |
| Dimension | 80x100x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
1,6136 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6136 kg CO2e / 1 Meter |
|---|
