OKB supply trunking

OKB supply trunking

Trench Part No. OKB E 25085 ON
|
OBO Item No. 7403811
|
EAN 4012195845942
Show all variants
Trench Part No.
OKB E 25085 ON
OBO Item No.
7403811
Length
2.000 mm
Width
210 mm

Smallest selling unit: 2 m

m

Description

Ready-to-mount trunking unit for cable routing, consisting of a trunking base with two covers. The scope of delivery contains two lid butt seals and one connector. For height adjustment, six height adjustment units are required. Load capacity up to a maximum of 5 kN. The trunking unit can be supplemented with an adjustable floor covering contact profile for screed limitation in areas of door frames and in front of radiator niches.

Technical data

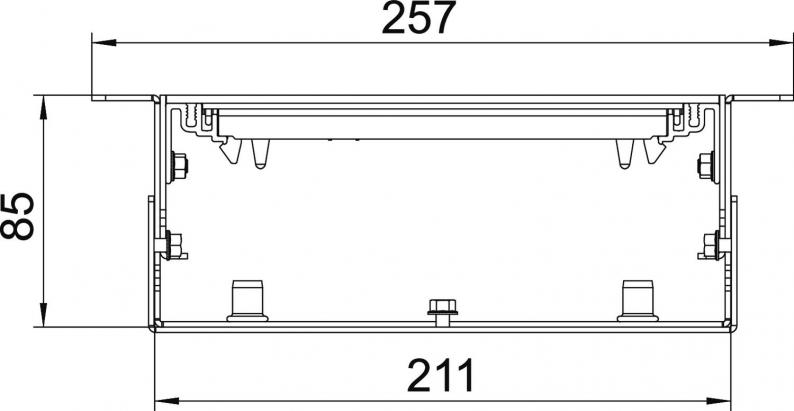

Dimensions

Length2.000 mm
Width210 mm
Height93 mm
Dimension h85 mm

Technical data

Usable cross-section11000 mm²
Number of compartments1 St.
Cross-section, draw a11008 mm²
Height-adjustment range, min.0 mm
Minimum screed height85
Installation opening for on-floor tankno
Seal installation optionno
Decouplableyes
Floor plateyes
Floor careDry
With equipotential bondingno
Removable coveryes
Cover fastening, lockingno
Mounting opening coverno
With separating retainerno
Suitable for expansion jointno
With overhangyes
With connection openingno
Vertical load, small areato 3,000 N
Vertical load, large areato 5,000 N
Mounting openingWithout
Dimension2000x73x85
SurfaceStrip galvanized
MaterialSteel
Separating retainer fasteningPlug

Environmental Data

57,4358 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate57,4358 kg CO2e / 1 Meter
