Wall connection set, double-sided, for corner mounting, duct height 120 mm, FS
Trench Part No. PLM CC 1220 FS
|OBO Item No. 7218142
|EAN 4012197310660
Trench Part No.
PLM CC 1220 FS
OBO Item No.
7218142
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

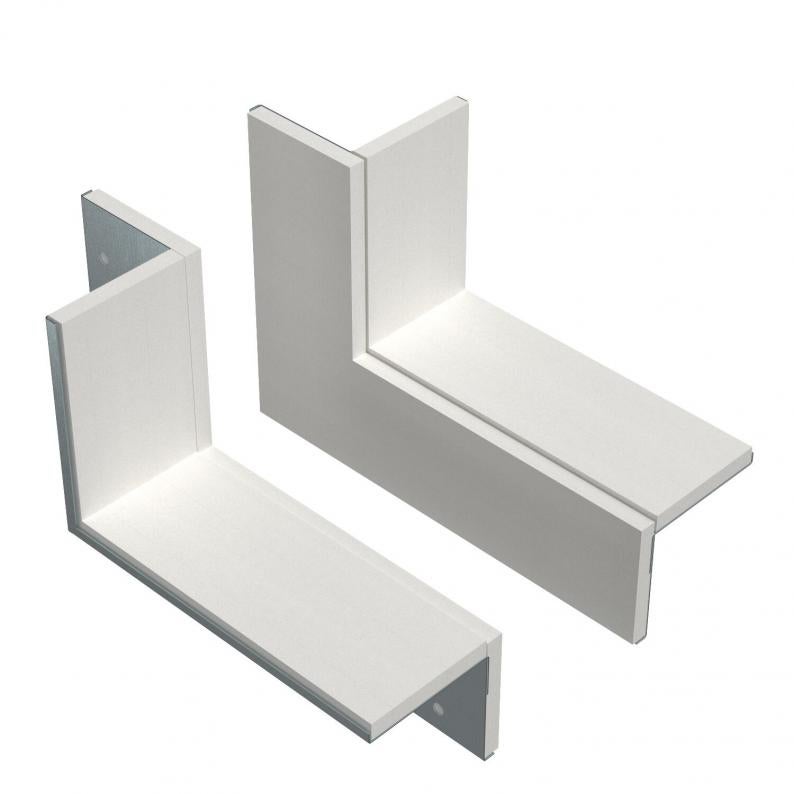

Wall connection collar, 2-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations in room corners. Set consisting of 2 opposing components, suitable for ceiling or wall mounting of the installation duct.
Technical data

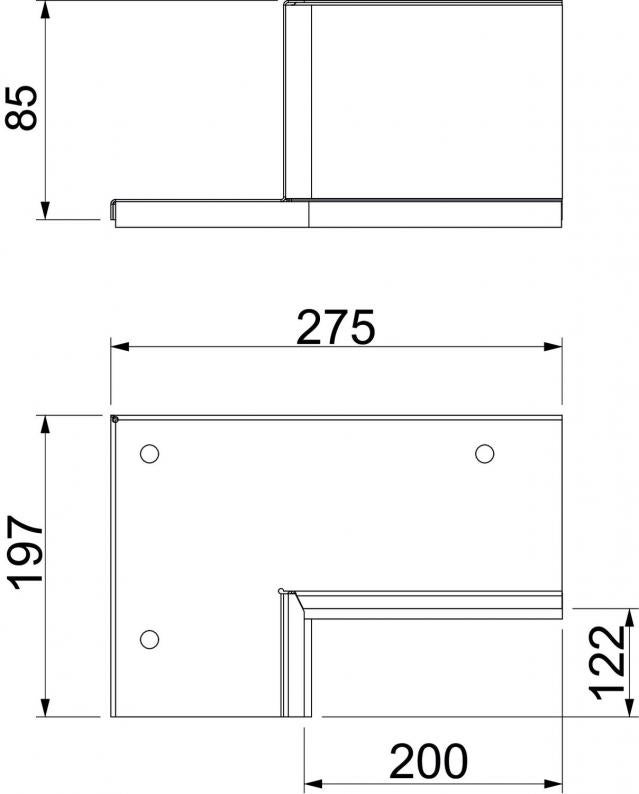

Dimensions
| Dimension d | 122 mm |
|---|---|
| Dimension B | 275 mm |
| Dimension H | 197 mm |
| Dimension b | 200 mm |
Technical data
| Type of accessory | Wall connection collar |
|---|---|
| Dimension | 85x275x197 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
Environmental Data
4,524 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 4,524 kg CO2e / 1 Piece |
|---|
